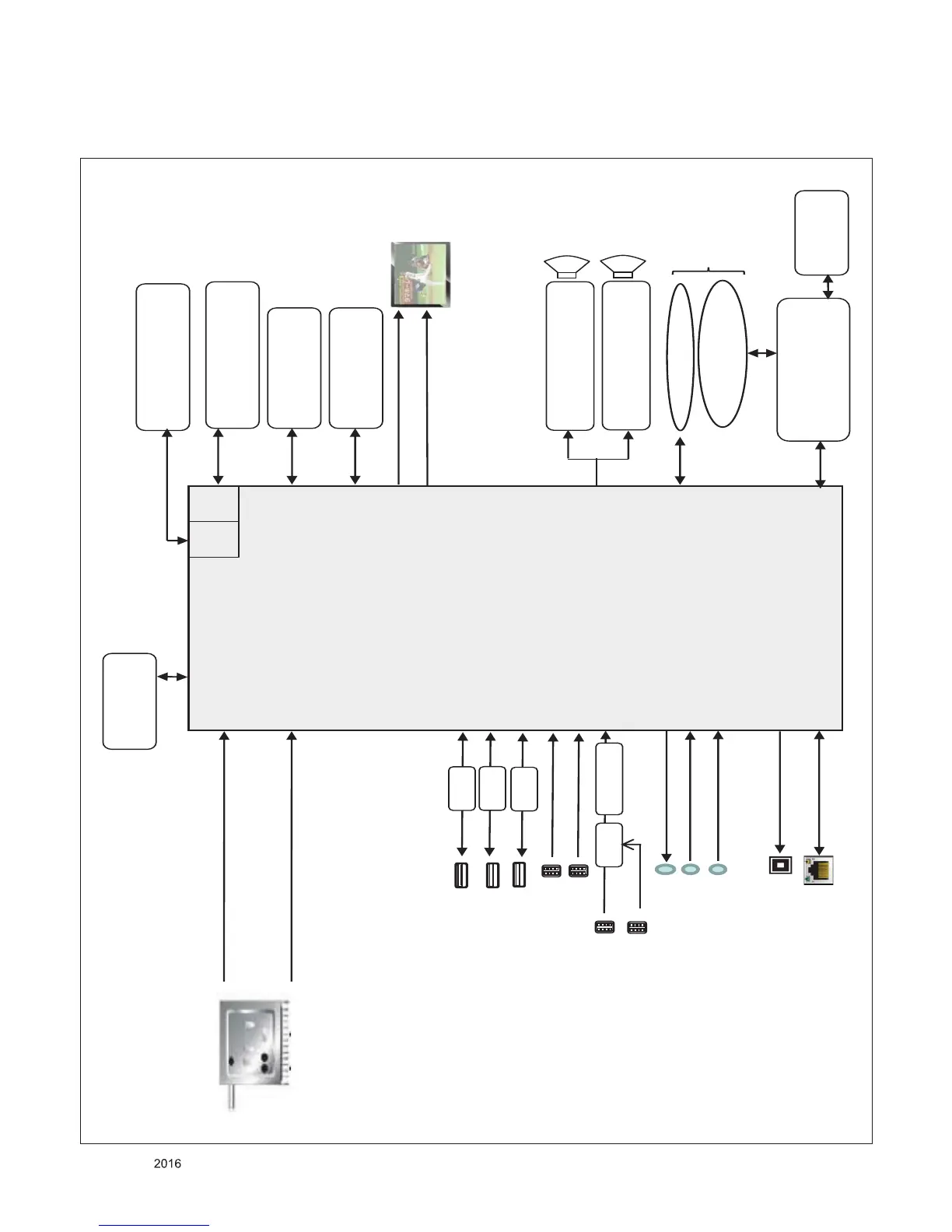

Block Diagram
1.K2L Circuit Block Diagram
MAIN Audio AMP
(NTP7515D)
K2L
USB1 (3.0)
OPTIC
LAN
HDMI1 HDMI 2.0
EEPROM(NVRAM)
(256Kb)
P0
USB2 (2.0)
51P/41P
eMMC
(8GB)
Sub Micom
(RENESAS
R5F100GEAFB)
DDR3 2133 X 16
(512MB X 2EA)
X_TAL
27MHz
A
B
X_TAL
32.768KHz
I2S Out I2C 4
USB3_TX/RX0
I2C 4
(HW Port)
COMP
OCP
YPbPr
CVBS/RGB
SPDIF OUT
ETHERNET
I2C 1
(HW Port)
SUB
ASSY
IR / KEY
LOGO LIGHT(Ready)
WIFI/BT Combo
USB_WIFI
GPIO86_SPI_DI0
GPIO88_SPI_DO0
DDR3 2133 X 16
(512MB X 2EA)
HDMI3(External EDID)
USB3 (2.0)
RS232C
HDMI2(ARC) HDMI 2.0
TWEETER Audio AMP
(NTP7515D)
AV
AV
Vx1
OCP
OCP
USB_DM/DP2
USB_DM/DP1
P1
P2
I2C 2
I2C6
(HW Port)
HDMI4(External EDID)
MUX
Digital Demod
IF (+/-)
Analog Demod
Tuner : I2C 2
CVBS/SIF
Tuner
RETIMER

LG OLED55B6P-U Specifications

General

Screen Type	oled
Wall Mount	300mm x 200mm
Tuner	digital
Screen Size	54.6 inches, 55 inches
Resolution	4k (2160p)
Refresh Rate	60hz
HDR	yes
Built-In Speakers	yes
Surround Sound	other
Speakers Output	40 watts
HDMI Ports	4
HDMI 2.1 Ports	0
USB Ports	3
RF Antenna	yes
Network	built-in wi-fi
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
SmartTV	webos
Streaming Services	netflix, youtube
Voice Assistant	other
Remote Control	universal
3D	no
Power Consumption	175 kilowatt hours
Depth with Stand	8.9 inches
Height with Stand	29.9 inches
Width with Stand	48.4 inches
Net Weight with Stand	41 pounds
Depth without Stand	1.9 inches
Height without Stand	28.1 inches
Net Weight without Stand	33.7 pounds
