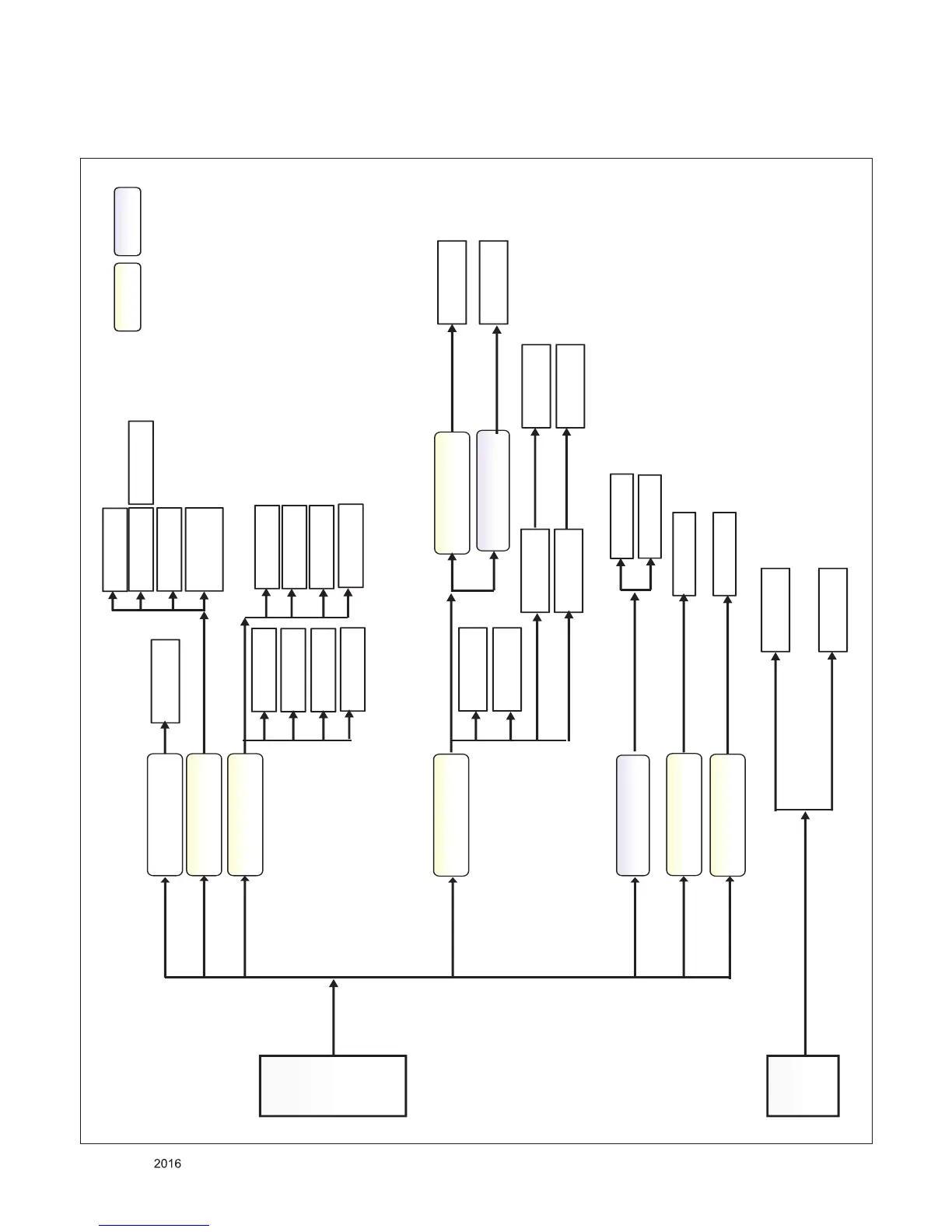

3. K2L Power Block
LDO DCDC
+13V
+5V_NORMAL
IC2500 / 6A
BD86106EFJ
IC2302 / 3A
MP1471AGJ/500kHz
+12V Switch
BD48K28G / IC2501
IC2306 / 4A
TPS56428DDAR
NTP7515D
EXT EDID
IC3301
DDR3
+3.3V_NORMAL
+3.5V_ST
1.8V
IC2300 / 4A
RT7231GQW
+1.05V_CPU CORE
IC2305 / 10A
TPS51362RVER
+1.0V_CORE
+A13V /
+A24V
NTP7515D
USB3.0 OCP
USB2.0 OCP
USB2.0 OCP
K2L
H/P AMP
PANEL
IC2303 / 3A
BD9A300MUV
1.5V_DDR
MICOM
NVRAM
IR_KEY
ETHERNET
WIFI
WOL_EN
WIFI_EN
DVDD18_EMMC
EMMC
EMMC
CPU_1V0
DIV0
MAIN
TWEETER
Eth Stdby
+1.0V
AUDIO AMP
RETIMER
MUX
IC2301/ 2A
TJ2132GDP
IC200/ 2A
TJ4220GDP-ADJ
BCAS
TUNER
