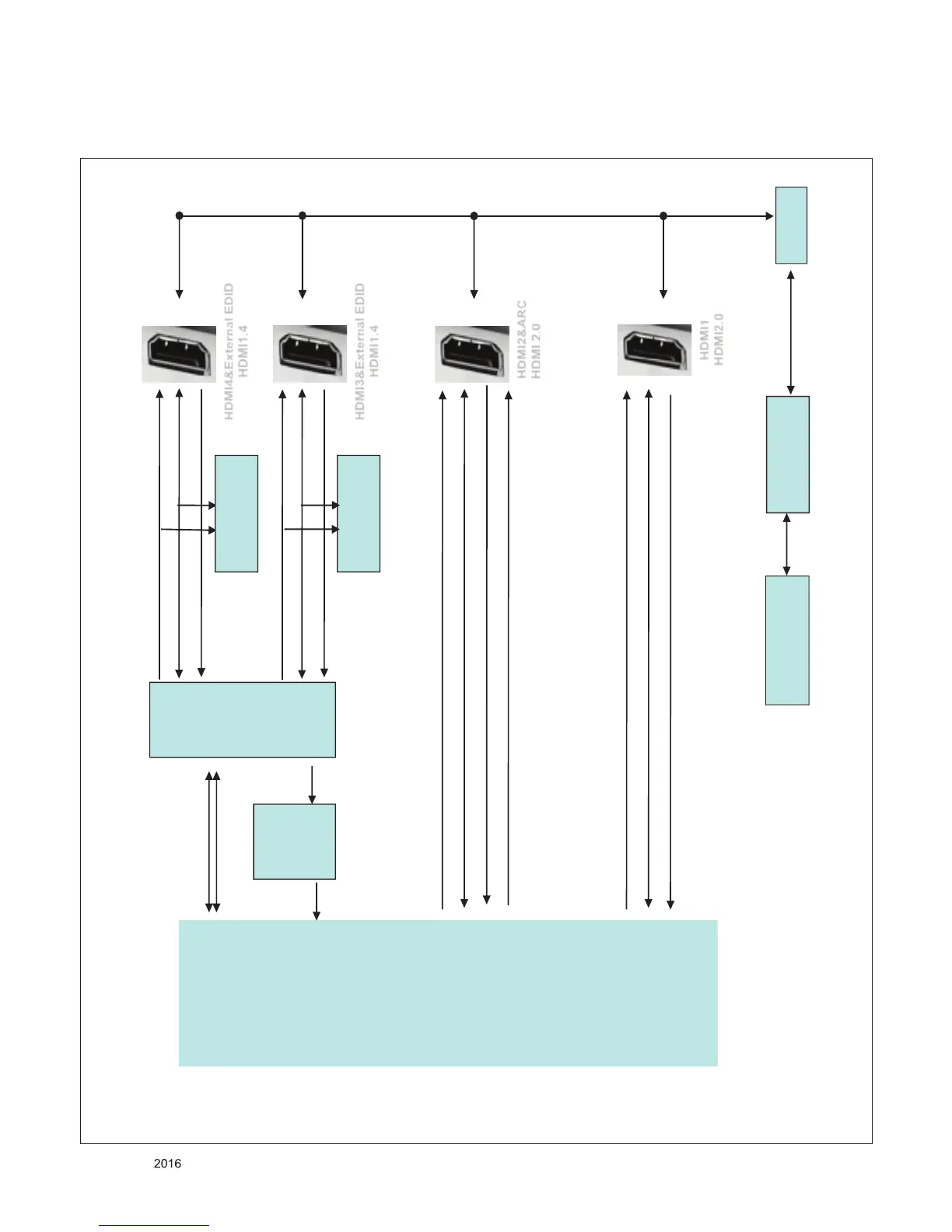

7. HDMI

HDMI3&External EDID

HDMI1.4

HDMI2&ARC

HDMI 2.0

CEC_REMOTE

RENESAS

MICOM(IC3000)

K2L

HDMI_ARC

X-Tal(X3000)

32.768kHz

HDMI1

HDMI2.0

DDC_SCL_1

DDC_SDA_1

TMDS Link 8bits

DDC_SCL_2

DDC_SDA_2

TMDS Link 8bits

DDC_SCL_3

DDC_SDA_3

* TMDS Link 8bits = TMDS DATA 6bits(DATA0,1,2)+ TMDS CLK 2bits

TMDS Link 8bits

HDMI_CEC_MICOM

Q3001

IC3301

External EDID

ST_IO19_H0_SCL

ST_IO20_H0_SDA

ST_IO22_H1_SCL

ST_IO23_H1_SDA

ST_IO25_H2_SCL

ST_IO26_H2_SDA

GPIO17

JK3301

JK3300

JK3302

HDMI4&External EDID

HDMI1.4

JK3303

DDC_SCL_4

DDC_SDA_4

TMDS Link 8bits

IC3304

External EDID

IC3306

TI 2:1 MUX

DDC_SCL_3/4

DDC_SDA_3/4

IC3305

Retimer_IC

TMDS Link 8bits
