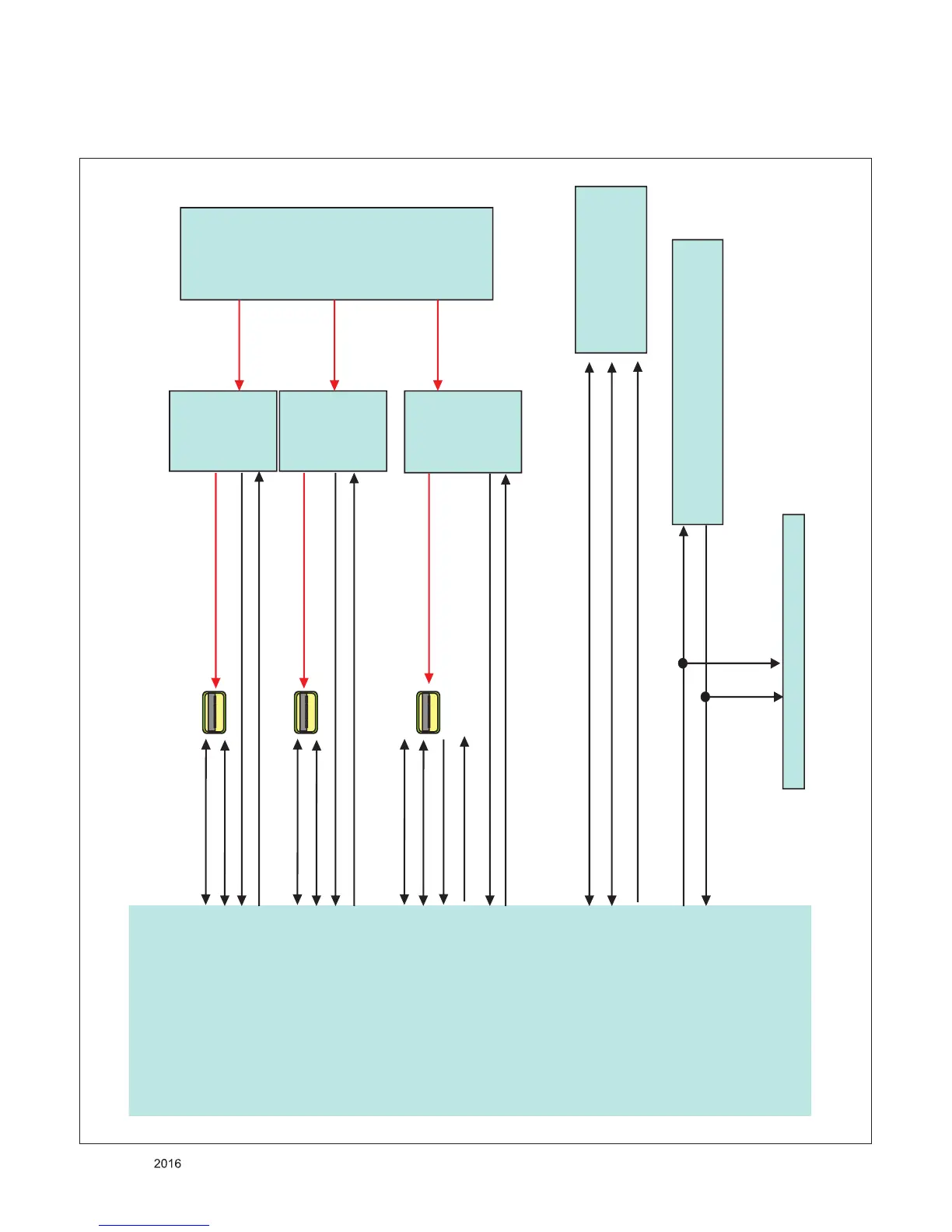

8. USB / WIFI / M-REMOTE / UART
USB3
USB_DP1 USB_DM1
HSDP0
HSDM0
USB2
USB_DP2 USB_DM2
RTC_XI
RTC_XO
OCP
IC4400
6A
DCDC
IC2305
+5V_USB_1 +5V_USB_2
/USB_OCD1
USB_CTL1
USB_CTL2 /USB_OCD2
WIFI_DM
WIFI_DP
HSDM3
HSDP3
RENESAS MICOM(IC3000)
ST_IO13
ST_IO12
SOC_TX SOC_RX
USB3_DP0
+5V_USB_1
USB_CTL3_0 /USB_OCD3_0
HSDM1
HSDP1
ST_IO16 ST_IO17
USB3_0_DM0
USB3_0_DP0
USB1
USB3_DM0
AI3L AI3L
RS232C_Debug
USB2.0
WIFI Combo
M_RFModule_RESET
GPIO93_MCLK
USB3_TXM0/USB3_TXP0 USB3_RXP0/USB3_RXM0
HSIN / HSIP
HSON / HSOP
OCP
IC4301
OCP
IC4301
+5V_NORMAL
+5V_NORMAL
JK4300
JK4302
USB2.0
USB3.0
+5V_NORMAL
JK4400
K2L

LG OLED55B6P-U Specifications

General

Screen Type	oled
Wall Mount	300mm x 200mm
Tuner	digital
Screen Size	54.6 inches, 55 inches
Resolution	4k (2160p)
Refresh Rate	60hz
HDR	yes
Built-In Speakers	yes
Surround Sound	other
Speakers Output	40 watts
HDMI Ports	4
HDMI 2.1 Ports	0
USB Ports	3
RF Antenna	yes
Network	built-in wi-fi
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
SmartTV	webos
Streaming Services	netflix, youtube
Voice Assistant	other
Remote Control	universal
3D	no
Power Consumption	175 kilowatt hours
Depth with Stand	8.9 inches
Height with Stand	29.9 inches
Width with Stand	48.4 inches
Net Weight with Stand	41 pounds
Depth without Stand	1.9 inches
Height without Stand	28.1 inches
Net Weight without Stand	33.7 pounds
