LG OLED55B6P-U User Manual

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
RS232C
2014-05-19
22
UF71/7500
C11200
0.1uF
RS232C
C11202
0.1uF
RS232C
+3.5V_ST
C11201
0.1uF
RS232C
SOC_RX
RIN1
SOC_TX
IC11200
MAX3232CDR
EAN41348201
RS232C
3
C1-
2
V+
4
C2+
1
C1+
6
V-
5
C2-
7
DOUT2
8
RIN2
9
ROUT2
10
DIN2
11
DIN1
12
ROUT1
13
RIN1
14
DOUT1
15
GND
16
VCC
AR11200
100
1/16W
RS232C
C11203
0.1uF
RS232C
DOUT1
C11204
0.1uF
RS232C
VA11200
OPT
EAF61630102
VA11201
OPT
EAF61630102
R11200
1K
1/16W
5%
R11201
1K
1/16W
5%

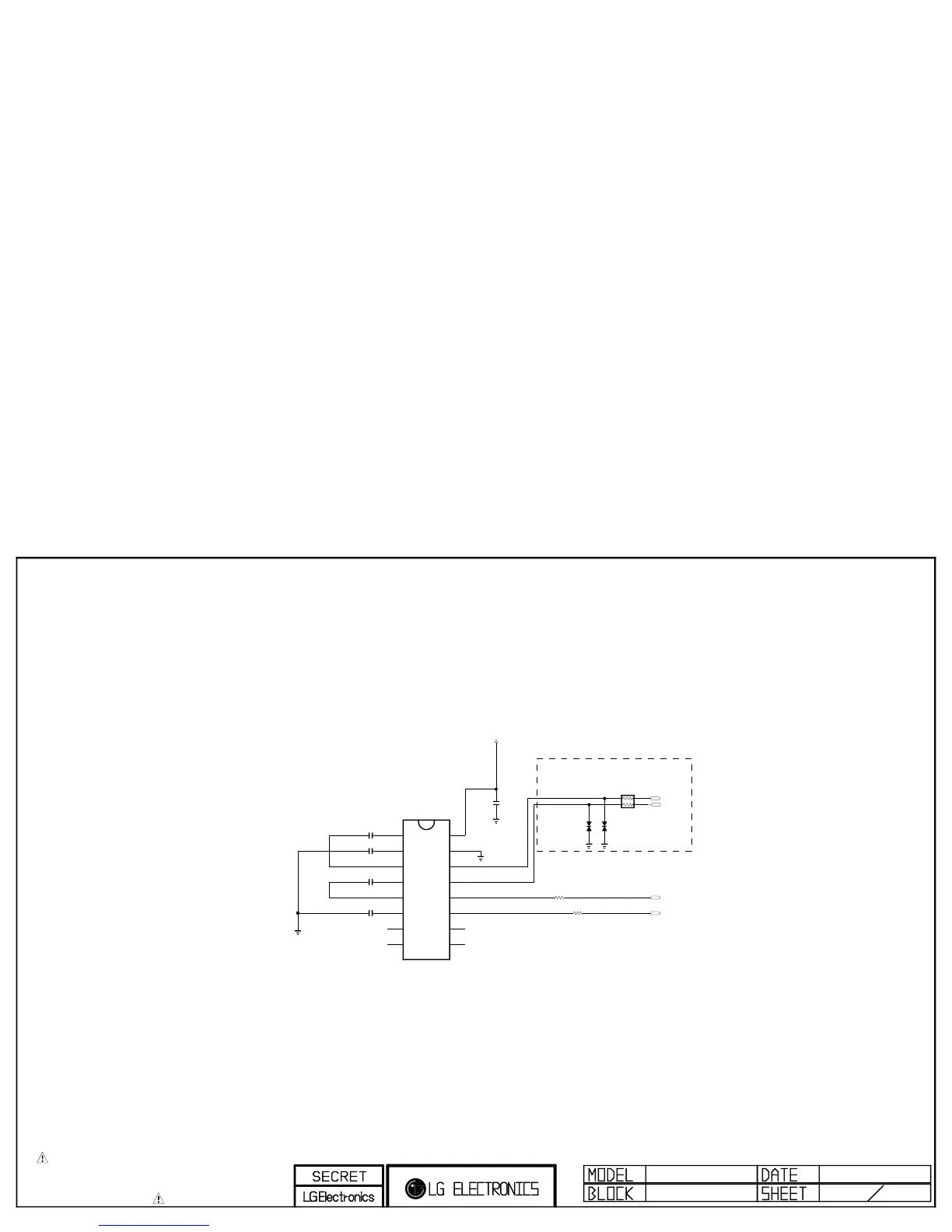

RS-232C Control INTERFACE
Closed to Jack side
Copyright © 2016 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG OLED55B6P-U Specifications

General

Screen Type	oled
Wall Mount	300mm x 200mm
Tuner	digital
Screen Size	54.6 inches, 55 inches
Resolution	4k (2160p)
Refresh Rate	60hz
HDR	yes
Built-In Speakers	yes
Surround Sound	other
Speakers Output	40 watts
HDMI Ports	4
HDMI 2.1 Ports	0
USB Ports	3
RF Antenna	yes
Network	built-in wi-fi
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
SmartTV	webos
Streaming Services	netflix, youtube
Voice Assistant	other
Remote Control	universal
3D	no
Power Consumption	175 kilowatt hours
Depth with Stand	8.9 inches
Height with Stand	29.9 inches
Width with Stand	48.4 inches
Net Weight with Stand	41 pounds
Depth without Stand	1.9 inches
Height without Stand	28.1 inches
Net Weight without Stand	33.7 pounds
