LG OM7560 Owner's Manual

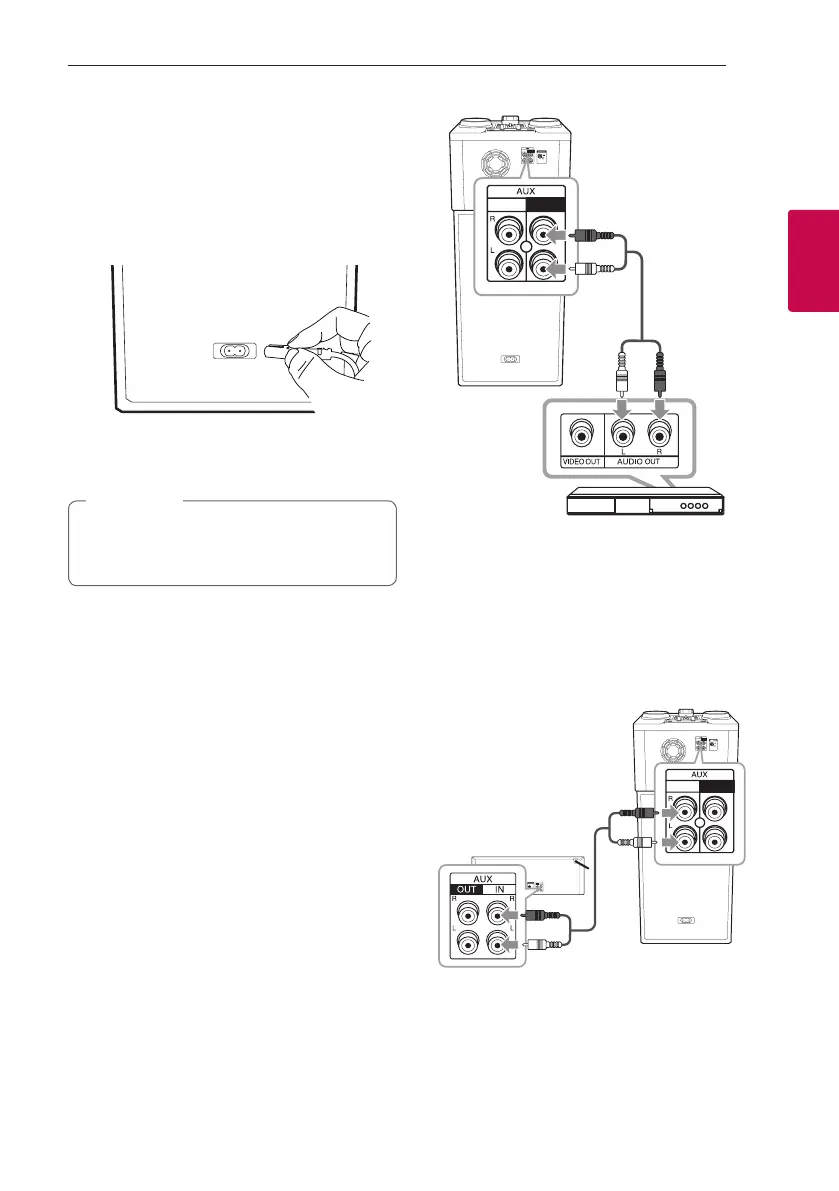

2 Connecting
Connecting 15
Connecting
2
AC Power Cord
Connection
1. Connect one end of the AC power cord (included)
to the AC IN socket.
OUT IN
2. Plug the other end into the wall outlet.
Unplug the AC power cord from the wall outlet
if you do not to use for an extended period of
time.
,
Note
Optional Equipment
Connection
AUX IN Connection
Connect an output of auxiliary device (Camcorder, TV,
Player, etc) to the AUX IN (L/R) connector.
If your device has only one output for audio (mono),
connect it to the left audio jack on the unit.
OUT IN
OUT IN
DVD, Blu-ray player etc.
Audio cable
White
Red
AUX OUT Connection
Connect an input of auxiliary device to the AUX OUT
(L/R) connector.
If your device has only one input for audio(mono),
connect it to the left audio jack on the unit.
OUT IN
OUT IN
Audio cable

LG OM7560 Specifications

Power

power consumption networked standby	0.5 W
bus power supply (USB)	5 V 0 500 mA
amplifier output power	1, 000 W

Wireless Specifications

frequency range	2402 to 2480 MHz
output power	10 dBm
minimum distance from body	20 cm

Weight and Dimensions

dimensions	330 mm x 815 mm x 302 mm
net weight	16.8 kg
