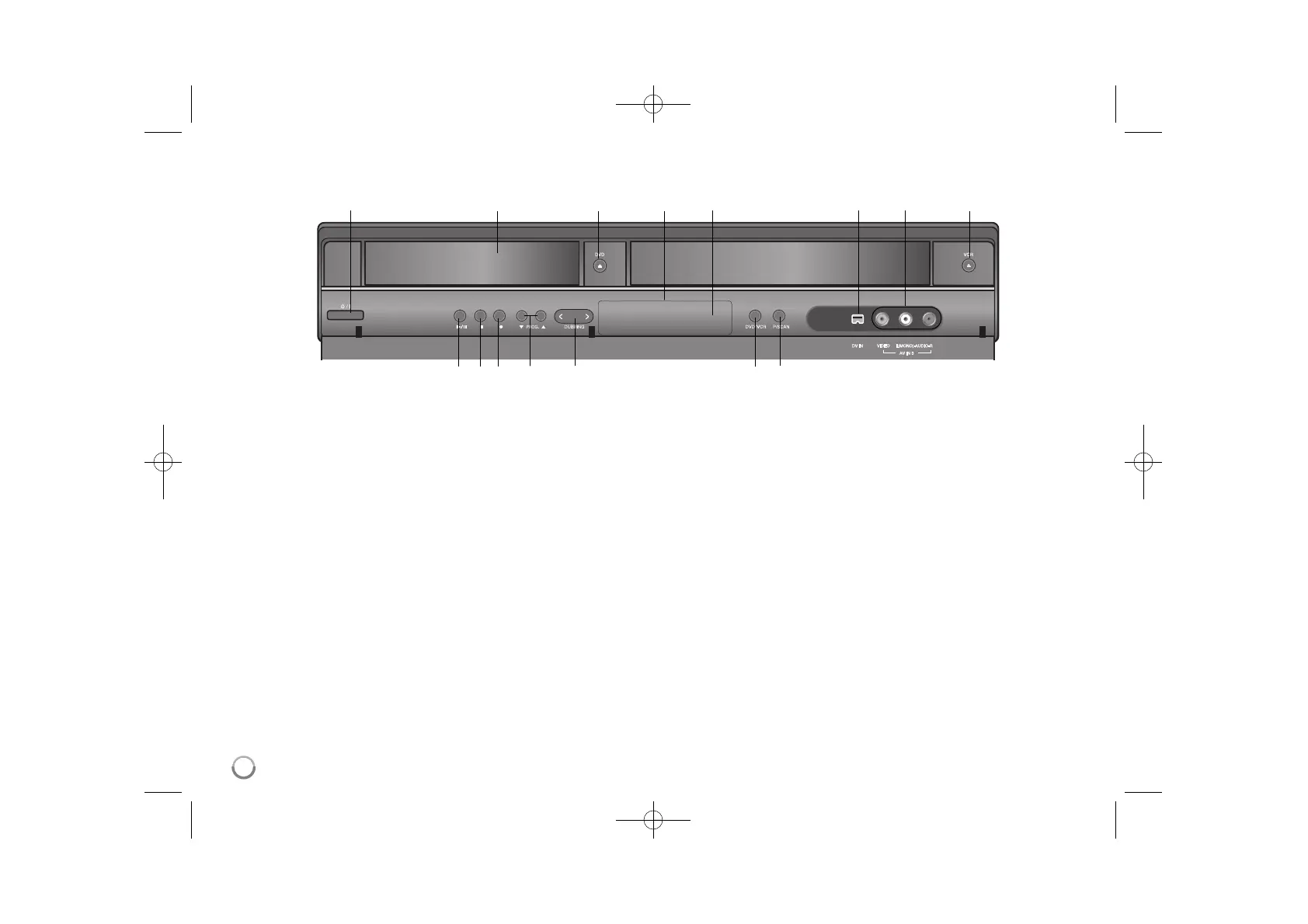

Main Unit
a
11
/ I (POWER button)
Switches the unit ON or OFF.
b Disc Tray
Insert a disc here.
c DVD (Z)
Opens or closes the disc tray.
d Display window
Shows the current status of the recorder.
e Remote Sensor
Point the remote control here.
f DV IN
Connect the DV output of a digital camcorder.
g AV IN 3 (VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an external source (Audio system, TV/
Monitor, VCR, Camcorder, etc.).
h VCR (Z)
Ejects the tape in the VCR deck.
i N / X (PLAY / PAUSE)
Starts playback.
Pause playback or recording temporarily, press again to exit pause mode.
j x (STOP)
Stops playback or recording.
k z (REC)
Starts recording. Press repeatedly to set the recording time.
l PROG. (V / v )
Scans up or down through memorized channels.
m DUBBING
Press to copy DVD to VCR (or VCR to DVD).
n DVD/VCR
Toggles control between the DVD deck and the VCR deck.
o P/SCAN (Progressive Scan)
Switchs the progressive mode.
576i(OFF), 576p(ON)
abcdefgh
i
jk l m n o
RC388-P.BBELLLK_ENG 6/4/10 3:28 PM Page 8

LG RC388 Specifications

Video and Audio Formats

video recording format	MPEG2 (VBR supported)
audio recording format	Dolby Digital
sampling frequency (audio recording)	48 kHz

Playback Specifications

frequency response (DVD PCM 48 kHz)	8 Hz to 22 kHz
frequency response (CD)	8 Hz to 20 kHz
frequency response (DVD PCM 96 kHz)	8 Hz to 44 kHz

Audio Performance

signal-to-noise ratio	More than 100 dB
harmonic distortion	Less than 0.008%
dynamic range	More than 95 dB

Input Connections

antenna input	75 ohms
video input	1.0 Vp-p 75 ohms, sync negative
audio input	2.0 Vrms more than 47 kohms

Output Connections

video output (SCART)	SCART x 2
s-video output	1.0 V (p-p), 75 Ω, sync negative
component video output	(Y) 1.0 V (p-p), 75 Ω, sync negative

General Specifications

power requirements	AC 200-240V, 50/60 Hz
power consumption	23W
dimensions	430 X 78.5 X 260 mm

Environmental Conditions

operating temperature	5˚C to 35˚C
operating humidity	5 % to 90 %
net weight	4.2 kg
