LG RC388 User Manual

9

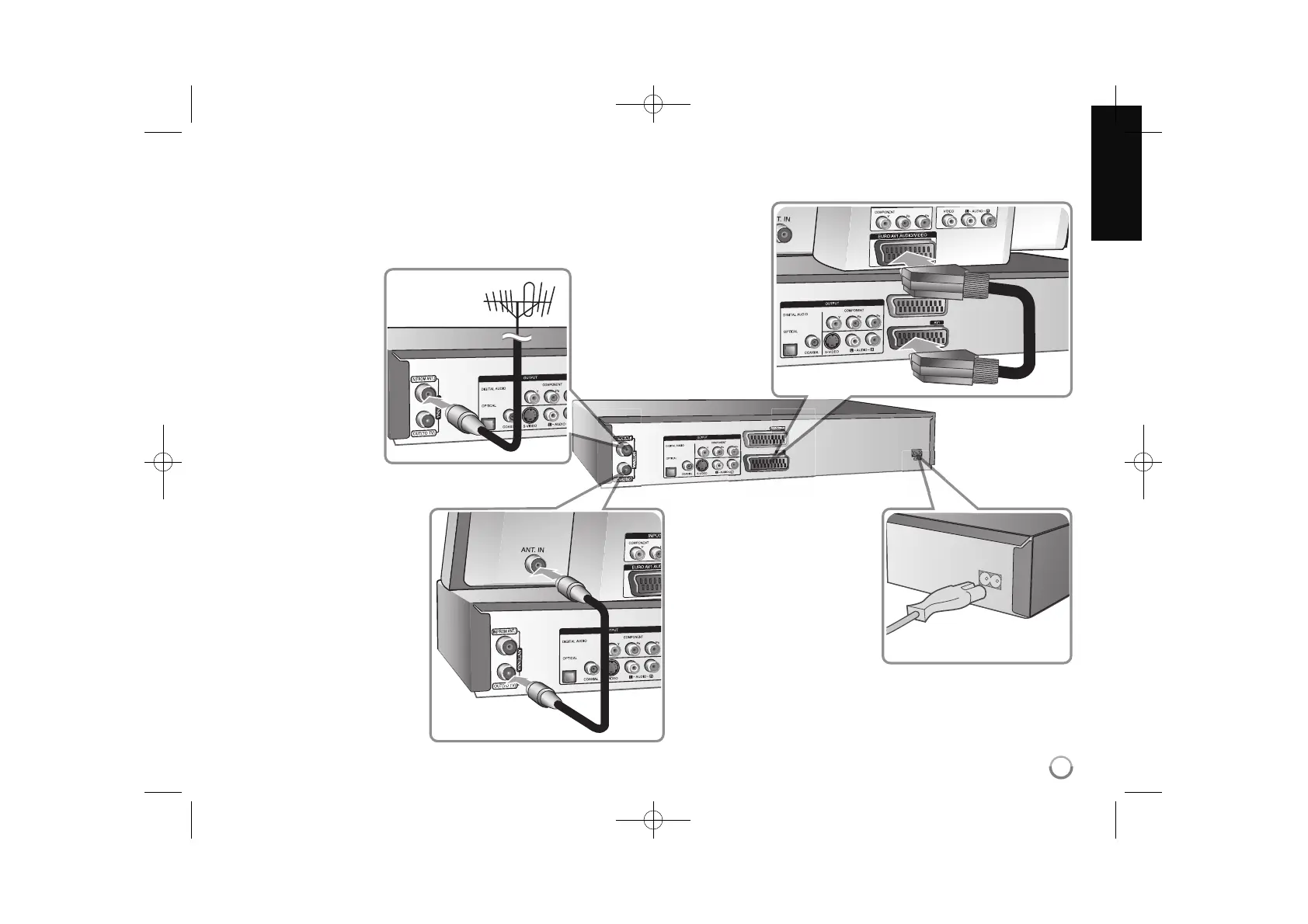

Hooking up the unit
a Antenna connection
Connect the Terrestrial
TV antenna to the
ANTENNA IN jack on
the unit.
b Antenna connection to
your TV
Connect one end of the RF
cable to ANTENNA OUT jack
on the unit and other end to
ANTENNA IN jack on your
TV.
c SCART connection
Connect one end of the scart
cable into the AV1 SCART
jack on the unit and other
end to the corresponding in
jack on your TV.
You can get Audio and Video
signals together with this
connection.
d Power cord connection
Connect the mains lead to
the AC IN terminal on the
unit. Then plug the power
cord into the mains.
RC388-P.BBELLLK_ENG 6/4/10 3:28 PM Page 9

LG RC388 Specifications

Video and Audio Formats

video recording format	MPEG2 (VBR supported)
audio recording format	Dolby Digital
sampling frequency (audio recording)	48 kHz

Playback Specifications

frequency response (DVD PCM 48 kHz)	8 Hz to 22 kHz
frequency response (CD)	8 Hz to 20 kHz
frequency response (DVD PCM 96 kHz)	8 Hz to 44 kHz

Audio Performance

signal-to-noise ratio	More than 100 dB
harmonic distortion	Less than 0.008%
dynamic range	More than 95 dB

Input Connections

antenna input	75 ohms
video input	1.0 Vp-p 75 ohms, sync negative
audio input	2.0 Vrms more than 47 kohms

Output Connections

video output (SCART)	SCART x 2
s-video output	1.0 V (p-p), 75 Ω, sync negative
component video output	(Y) 1.0 V (p-p), 75 Ω, sync negative

General Specifications

power requirements	AC 200-240V, 50/60 Hz
power consumption	23W
dimensions	430 X 78.5 X 260 mm

Environmental Conditions

operating temperature	5˚C to 35˚C
operating humidity	5 % to 90 %
net weight	4.2 kg
