Connecting to your TV
(Primary unit)
Please connect this unit and the TV using the optical
digital cable or HDMI cable considering the capability
of the TV.

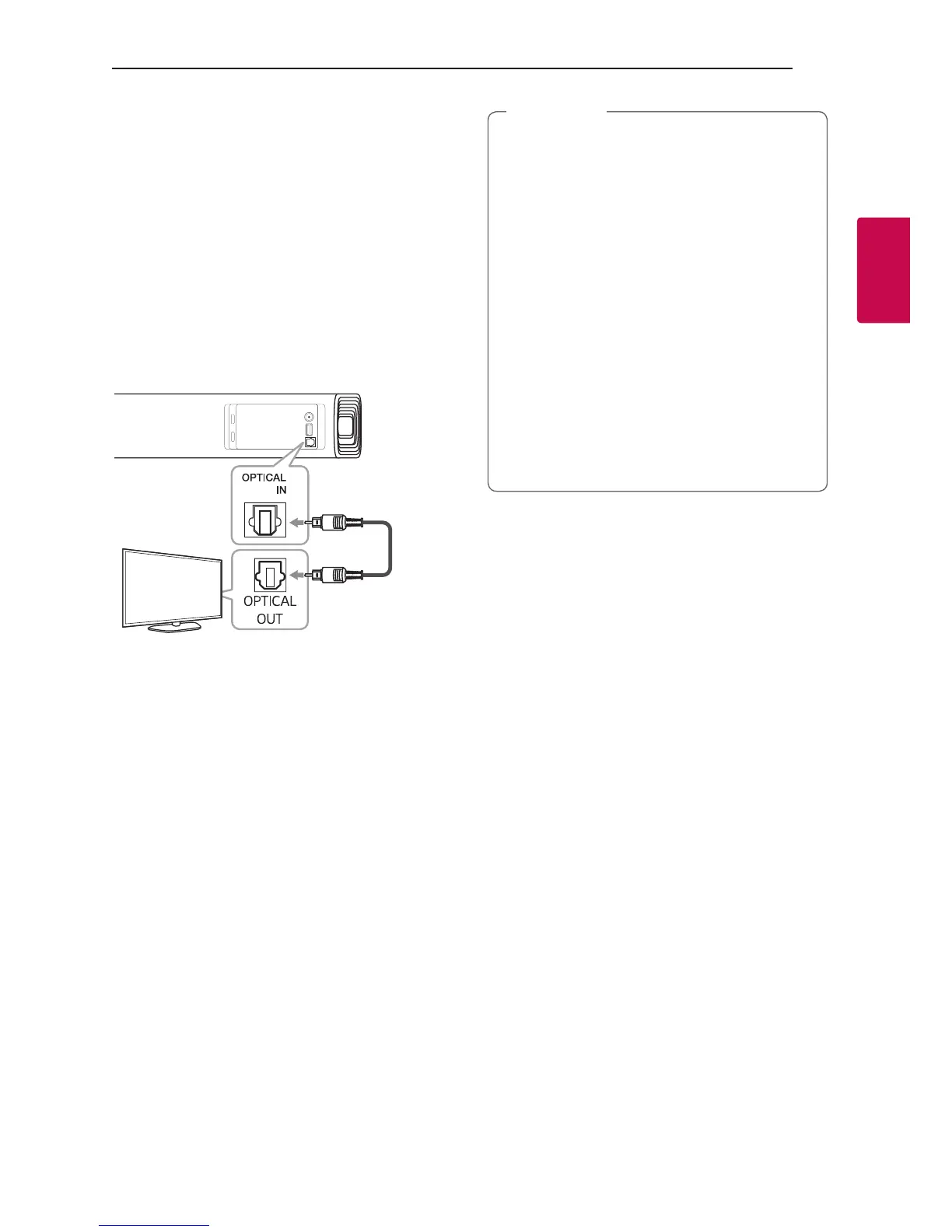

Using an OPTICAL cable
1. Connect the OPTICAL IN jack on the back of the
unit to OPTICAL OUT jack on the TV using an
Optical cable.
Optical
cable
Primary unit
2. Select the input source to OPT/HDMI ARC by
pressing F button on the remote control or unit
repeatedly.
You can see "OPT" on the display window if
connecting normally between this unit and your
TV.
y
Before connecting the optical cable, be sure
to remove the protection plug cover if your
cable has the cover.
y
You can enjoy the TV audio through the
speakers of this unit. In the case of some TV
models, you must select the external speaker
option from the TV menu. (For details,
reference your TV user manual.)
y
Set up the sound output of TV to listen to
the sound through this unit :
TV setting menu
[
[Sound]
[
[TV Sound
output]
[
[External speaker (Optical)]
y
Details of TV setting menu vary depending
on the manufacturers or models of your TV.
y
If this unit is connected by OPTICAL and ARC
at the same time, the ARC signal has priority.
,
Note

LG SJ7 Specifications

General

Audio decoders	DTS Digital Surround, Dolby Digital
RMS rated power	320 W
Audio output channels	4.1 channels
Audio Return Channel (ARC)	Yes
Product color	Black
TV stand usage	No
Recommended usage	Universal
Audio formats supported	LPCM
HDMI in	1
HDMI version	1.4
Bluetooth version	4.0
Connectivity technology	Wired & Wireless
Digital audio coaxial in	0
Apple docking compatibility	Not supported
Cables included	Optical
Receiver included	-
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Subwoofer type	Active subwoofer
Subwoofer connectivity	Wireless

Weight and Dimensions

Depth	109 mm
Width	340 mm
Height	74 mm
Subwoofer depth	252 mm
Subwoofer width	171 mm
Subwoofer height	320 mm
Subwoofer weight	4200 g
