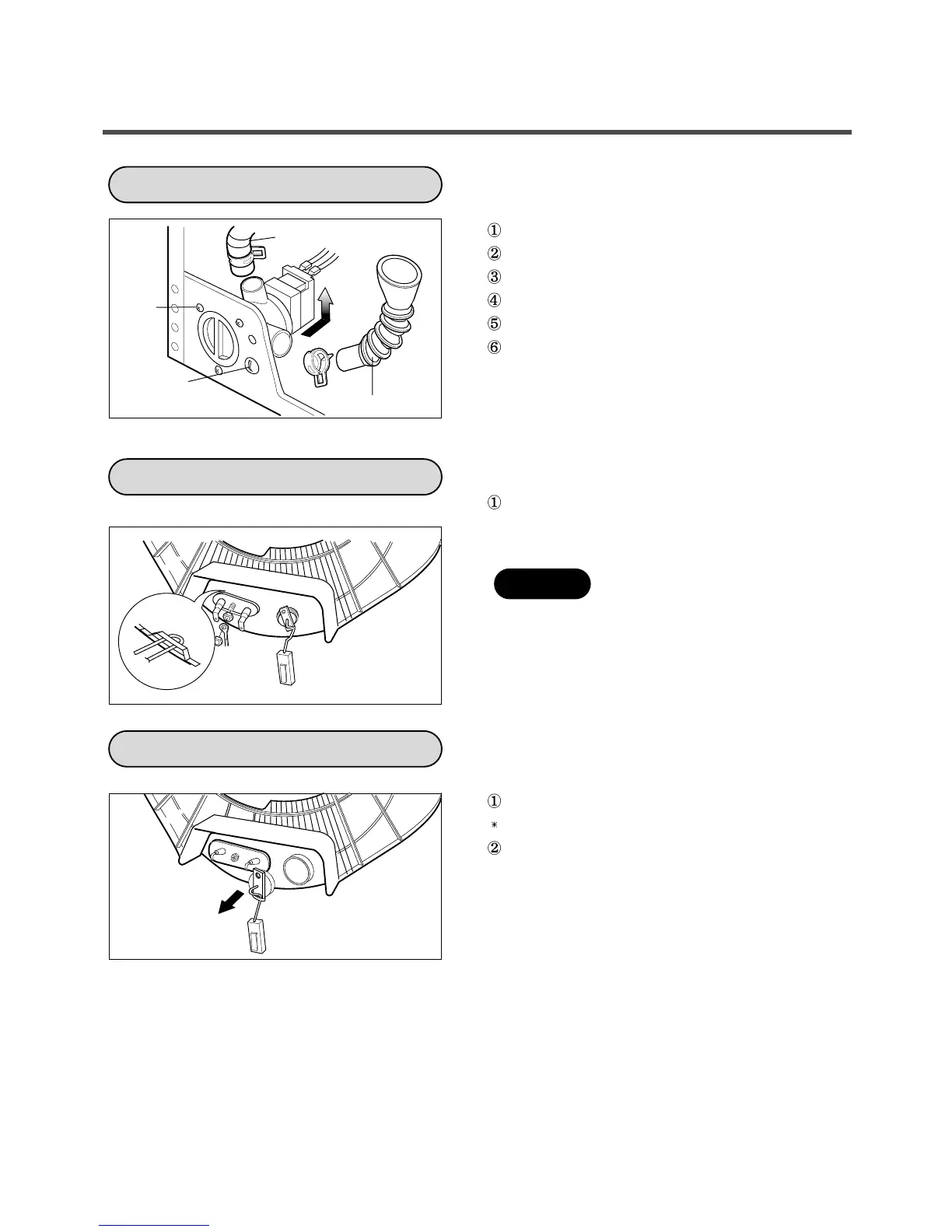

Remove PUMP HOSE.
Remove BELLOWS..
Remove CAP (Remaining Hose.)
Disconnect the wiring.
Unscrew 3 screws
Remove the DRAIN PUMP ASSEMBLY.
Loosen the M6 heater nuts to pull out the HEATER
ASSEMBLY.
When mounting the HEATER ASSEMBLY be sure to
insert the HEATER ASSEMBLY into the heater clip on
the bottom of the tub.
Pull it out by holding the THERMISTOR bracket.
If it is pulled by the wire, it may be broken.
When mounting the THERMISTOR again, make sure
that it is got back tight to the bushing.
DRAIN PUMP ASSEMBLY
HEATER ASSEMBLY
THERMISTOR
CAUTION
To Next Page
