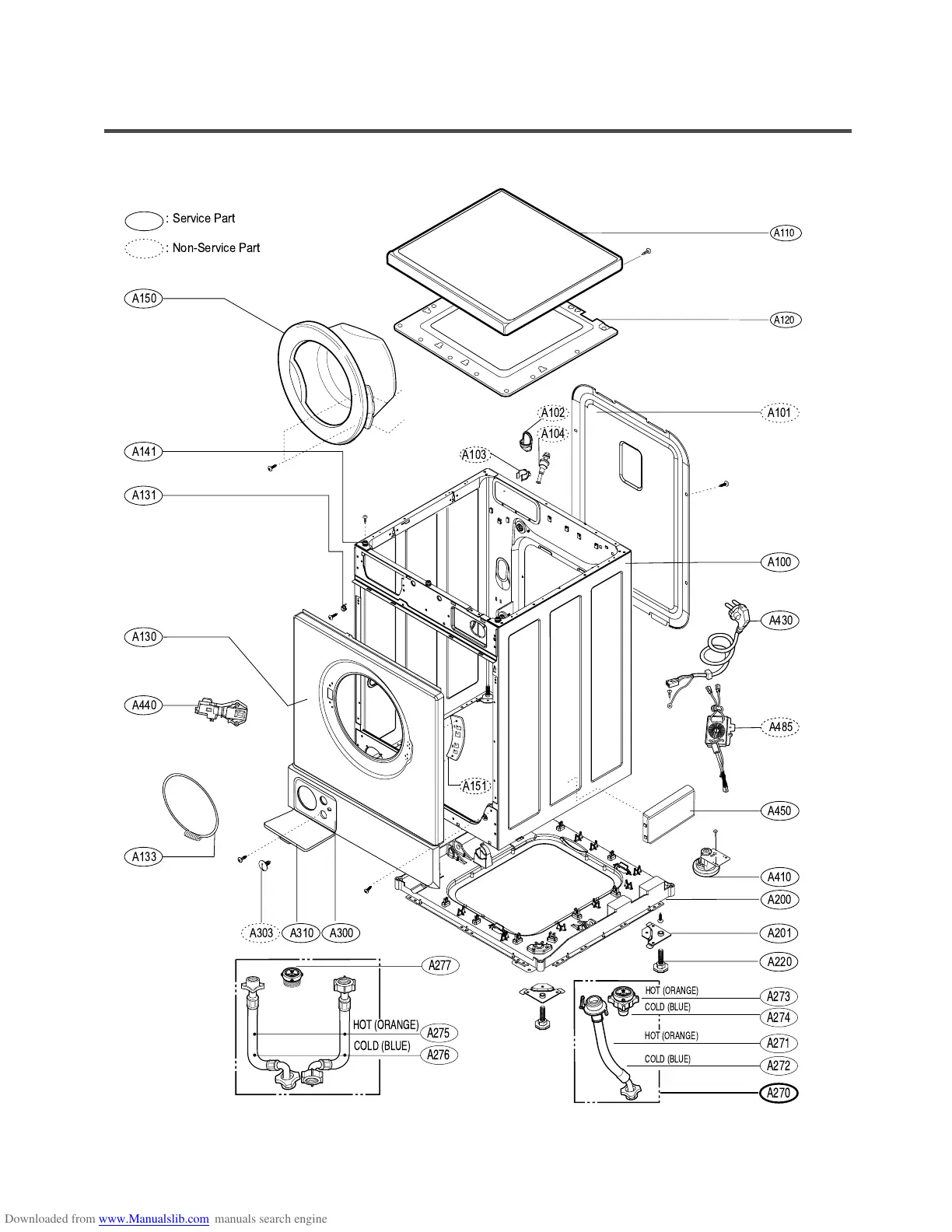

10-1.THE PART LIST OF CABINET ASSEMBLY
10. EXPLODED VIEW AND PART LIST
A151
A103
A102
A104
A101
A100
A430
A485
A450
A410
A200
A201
A220
A303
A133
A440
A130
A131
A141
A150
A310 A300
A273
A274
A271
A272
A275
A276
A277
A270
HOT (ORANGE)
COLD (BLUE)
HOT (ORANGE)
COLD (BLUE)
HOT (ORANGE)
COLD (BLUE)
: Service Part
: Non-Service Part
