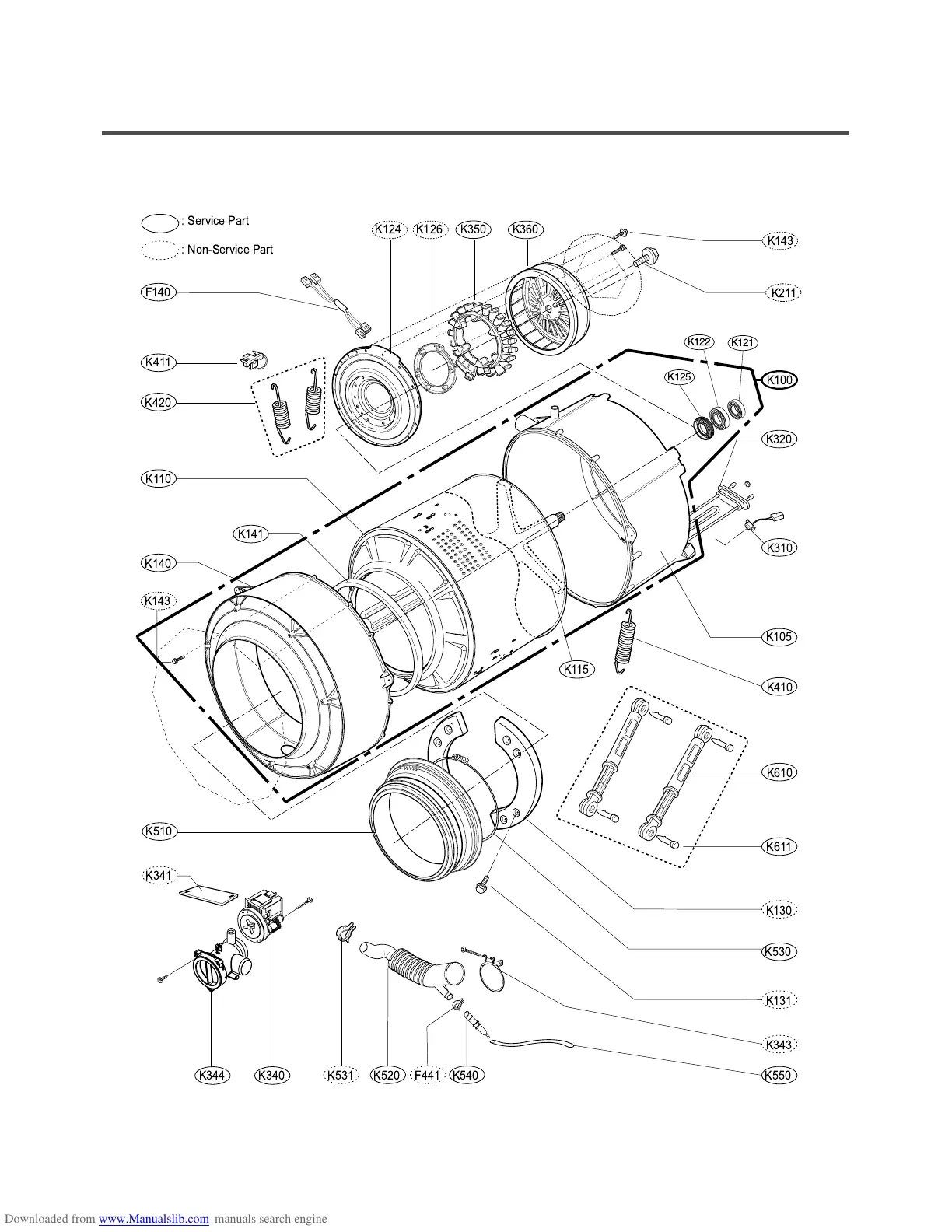

10-3 THE EXPLODED VIEW OF
DRUM & TUB ASSEMBLY
K121
K125
K122
F140
K411
K420
K110
K141
K140
K143
K510
K341
K340 K531 K520 F441 K540 K550
K343
K131
K530
K115
K130
K611
K610
K410
K105
K310
K100
K320
K211
K143
: Service Part
: Non-Service Part
K344
K124 K126
K350
K360
