LG WM2277HW Service Manual

26
NO
YES
NO
NO
YES
NO
YES
YES
NO
NO
YES
YES
YES
NO
NO
NO
YES
SOFTENER
MAX
Is water supply shut-off?
Is the tap opened?
When you press both SPIN SPEED button and
SOIL LEVEL button simultaneously, is the water
level frequency below 246?
Is the inlet valve filter clogged?
Is resistance between each terminal of INLET
VALVE ASSEMBLY 0.8-1.2
kΩ ?
Verify the voltage of the inlet valve connector is
120 V AC.
(Refer to 7-2 QC TEST MODE)
Is water supplied?
Are receptacles correctly connected to the
terminals of the INLET VALVE ASSEMBLY?
Has detergent been put in the correct compartment
of the dispenser?
Is the detergent caked or hardened?
Open the tap.
Check the
AIR CHAMBER
and the tube (clogged).
Clean the filter.
Replace the INLET VALVE
ASSEMBLY.
Check electrical connection.
Replace the MAIN PWB
ASSEMBLY.
Refer to
NO WATER SUPPLY
Check the wiring.
Put the detergent in the
correct place.
Clean the dispenser.

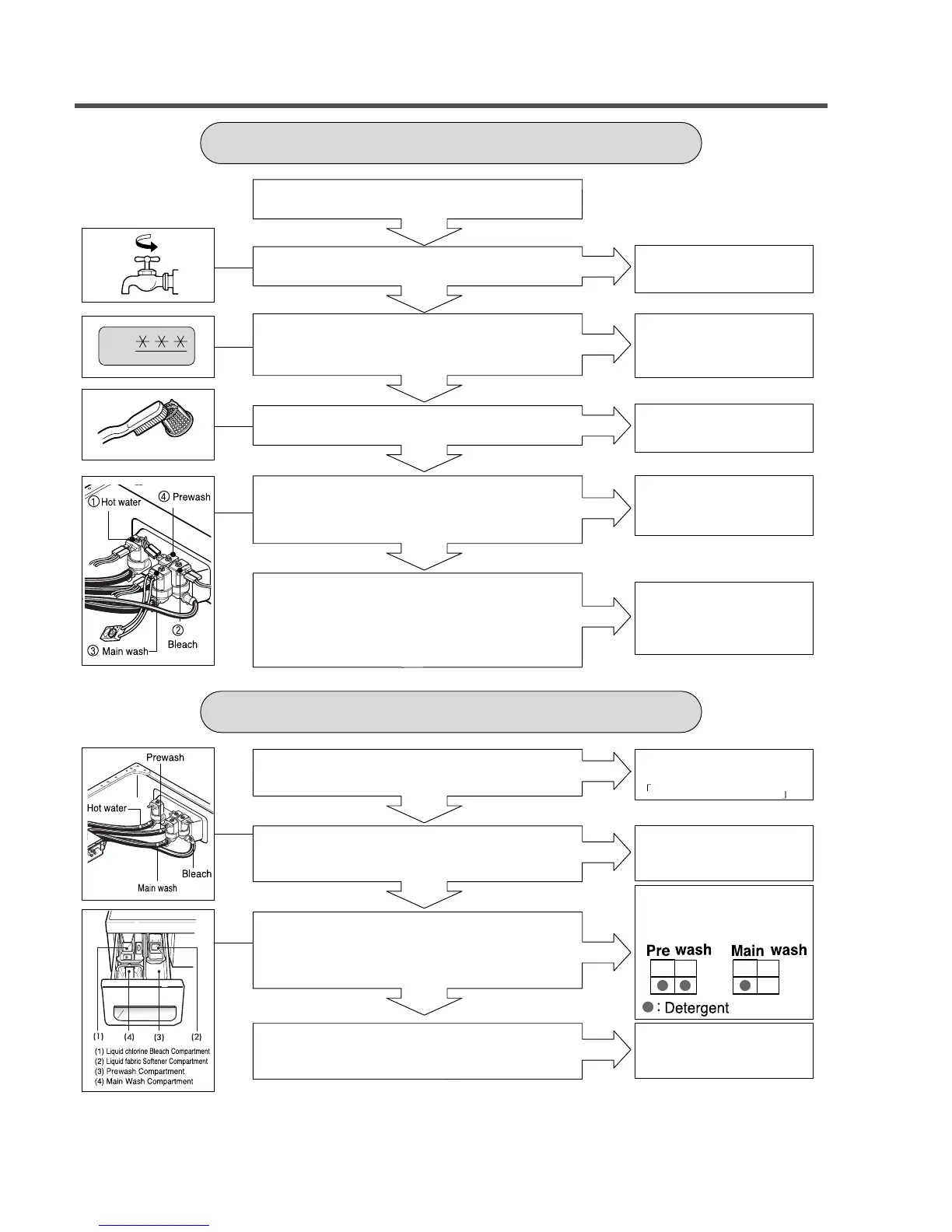

NO WATER SUPPLY
DETERGENT DOES NOT FLOW IN

LG WM2277HW Specifications

General

Type	Front Load Washer
Energy Star	Yes
Color	White
Height	39 inches
Steam Washer	Yes
Voltage	120 V
Spin Speed	1200 RPM
