LG WM2277HW Service Manual

30
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
Hose
Connector
(White)
Connector
Connector
Hose

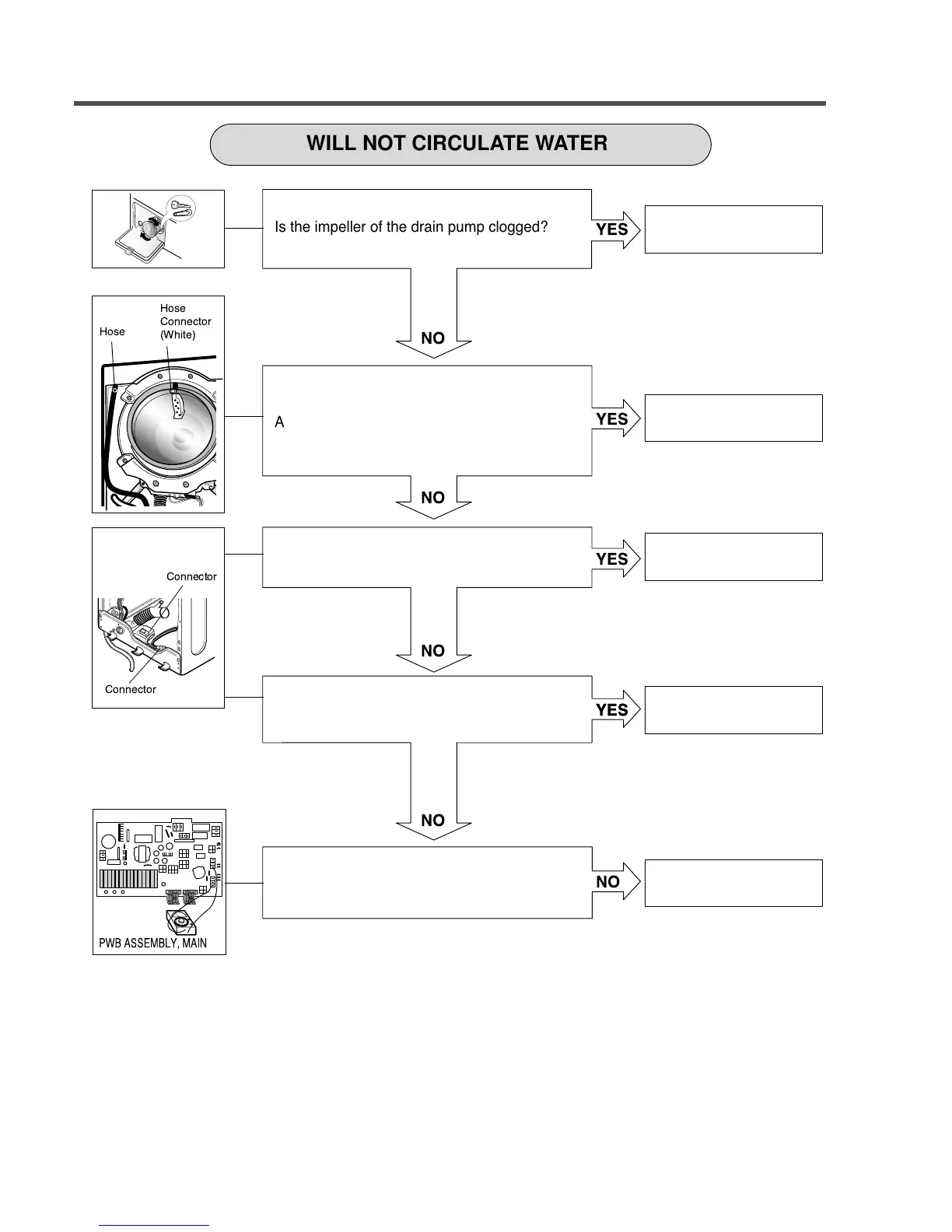

WILL NOT CIRCULATE WATER
Is the impeller of the drain pump clogged?
Are the Hose Connector and/or Hose clogged?
Is the connector disconnected, disassembled?
Is the coil of the right side of drain pump open
or short circuited? (Coil R is 18-30 Ω)
When checking voltage between the
connectors during spin, is the voltage 120 V AC,
as the figure?
Remove foreign material.
Remove foreign material.
Reconnect or repair
the connector.
Replace PUMP MOTOR
ASSEMBLY.
Replace the MAIN PWB
ASSEMBLY.

LG WM2277HW Specifications

General

Type	Front Load Washer
Energy Star	Yes
Color	White
Height	39 inches
Steam Washer	Yes
Voltage	120 V
Spin Speed	1200 RPM
