Chapter 3: Getting to Know the Router
The Front Panel
10/100 8-Port VPN Router
Chapter 3: Getting to Know the Router
The Front Panel
The Router’s LEDs, ports, and Reset button are located on the front panel of the Router.
Ports
1-8 (LAN) These eight LAN (Ethernet) ports connect to network devices, such as PCs, print
servers, or additional switches.
DMZ/Internet (WAN2) The DMZ/Internet port can be used in two different ways: a second Internet port, or
DMZ port. When used as an additional Internet port, it connects to a cable or DSL
modem. When used as a DMZ port, it connects to a hub, switch, or public server.
Internet (WAN1) The Internet port connects to a cable or DSL modem.
LEDs
Diag Red. The Diag LED lights up when the system is not ready. The LED goes off when the
system is ready.
System Green. The System LED lights up when the Router is powered on. If the LED is flashing,
the Router is running a diagnostic test.

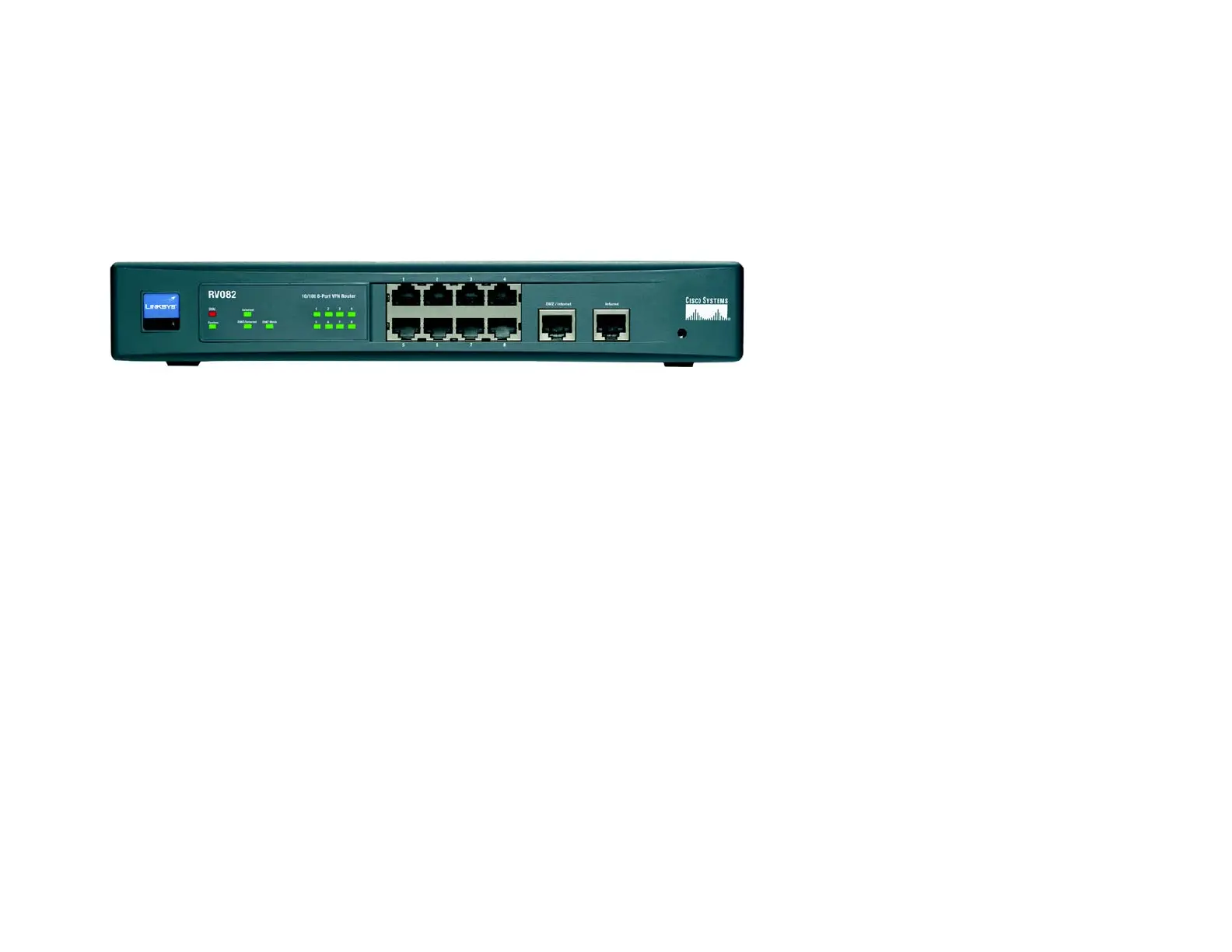

Figure 3-1: Front Panel
WAN1
LAN
WAN2
DMZ: removes the Router's firewall protection from
one PC, allowing it to be “seen” from the Internet
