30
Chapter 5: Setting Up and Configuring the Router
System Management Tab - Dual-WAN
10/100 8-Port VPN Router
Bandwidth
Enter the maximum Bandwidth of Upstreamand Downstream for WAN1 and WAN2, as provided by your ISP.
Protocol Binding
Select a Protocol from the drop-down menu next to Service or, if the one you’re looking for isn’t available, set up
a new one by clicking the Service Management button. This should be used to specify the IP Address and/or
service that will go through a specific WAN port.
To set up a new Service:
1. Select the Service from the pull-down menu, shown in Figure 5-24.
2. If the Service you need is not listed in the menu, please click the Service Management button to add the
new Service Name, and enter the Protocol and Port Range. This will open the Service Management screen.
Click the Add to List button. Then, click the Save Setting button. Click the Exit button.
3. Enter the IP Address of the server that you want the Internet users to access. Then enable the entry.
4. Click the Add to List button, and configure as many entries as you would like. You also can Delete selected
application.
Enter the appropriate Source IP Address and Destination IP Address in the spaces provided. Select the WAN port
from the Interface drop-down menu. Then, click Enable.
Once this is done, click the Add to list button and the Service will appear in the box below. To remove this
service, click the Delete selected application button.
Click the Save Settings button to save the Dual-WAN settings or click the Cancel Changes button to undo the
changes.

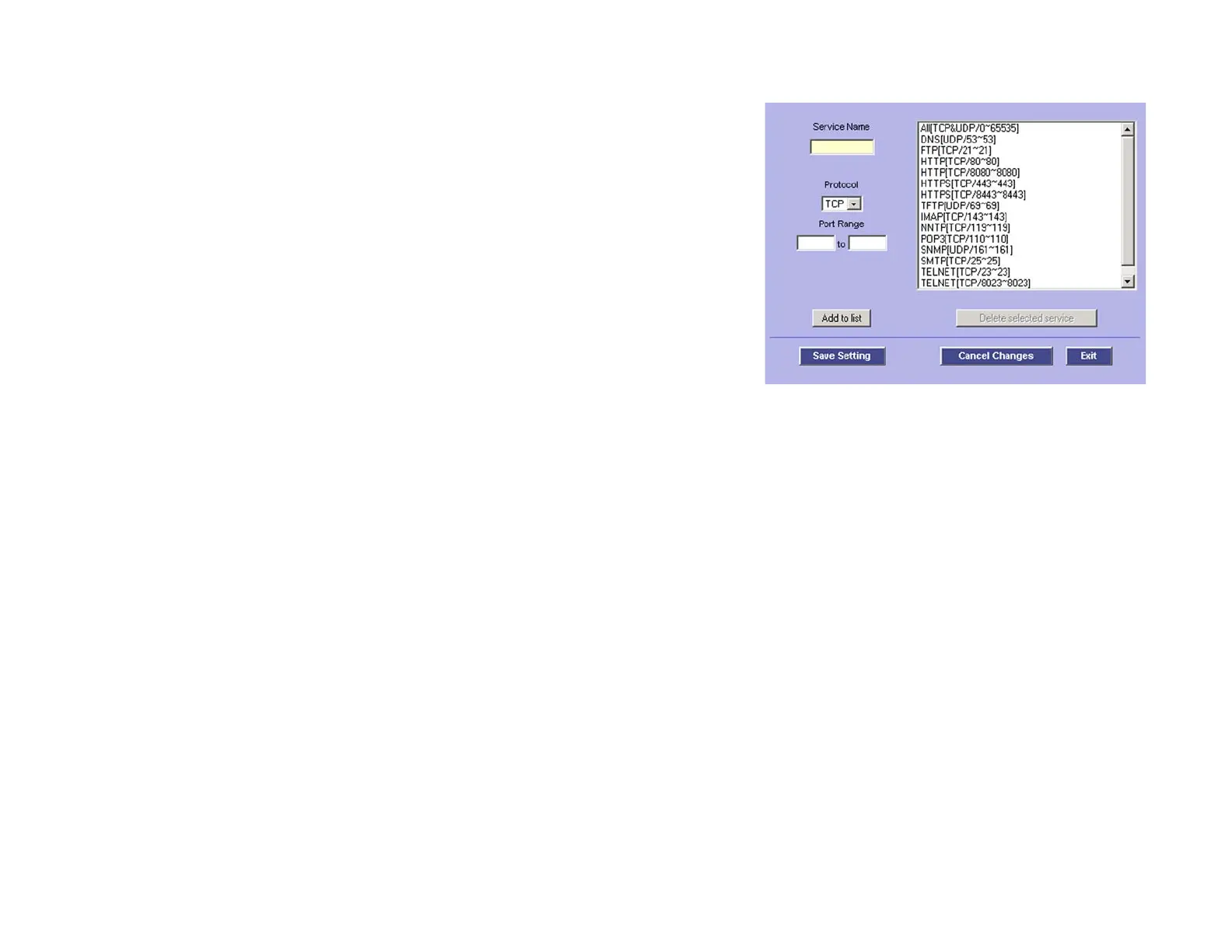

Figure 5-26: Protocol Binding -
Service Management
