9
Chapter 3: Getting to Know the Router
The Back Panel
10/100 8-Port VPN Router
DMZ/Internet Green. The DMZ/Internet LED lights up when the Router is connected to your cable or
DSL modem when used as an Internet port, and it lights up when the Router is
connected to the hub, switch, or public server when used as a DMZ port.
Internet Green. The Internet LED lights up when the Router is connected to your cable or DSL
modem.
DMZ Mode Green. The DMZ Mode LED lights up when the Router is using DMZ mode.
1-8 (LAN) Green. The LAN LED serves two purposes. If the LED is continuously lit, the Router is
connected to a device through the corresponding port (1, 2, 3, 4, 5, 6, 7, or 8). If the LED
is flashing, the Router is actively sending or receiving data over that port.
Reset Button The Reset button can be used in one of two ways:
If the Router is having problems connecting to the Internet, press the Reset button for
just a second with a paper clip or a pencil tip. This is similar to pressing the Reset
button on your PC to reboot it.
If you are experiencing extreme problems with the Router and have tried all other
troubleshooting measures, press and hold in the Reset button for 30 seconds. This will
restore the factory defaults and clear all of the Router’s settings, such as port
forwarding or a new password.
The Back Panel
The Router’s Power port is located on the back panel of the Router.
Power The Power port is where you connect the AC power cord.
Proceed to “Chapter 4: Connecting the Router.”

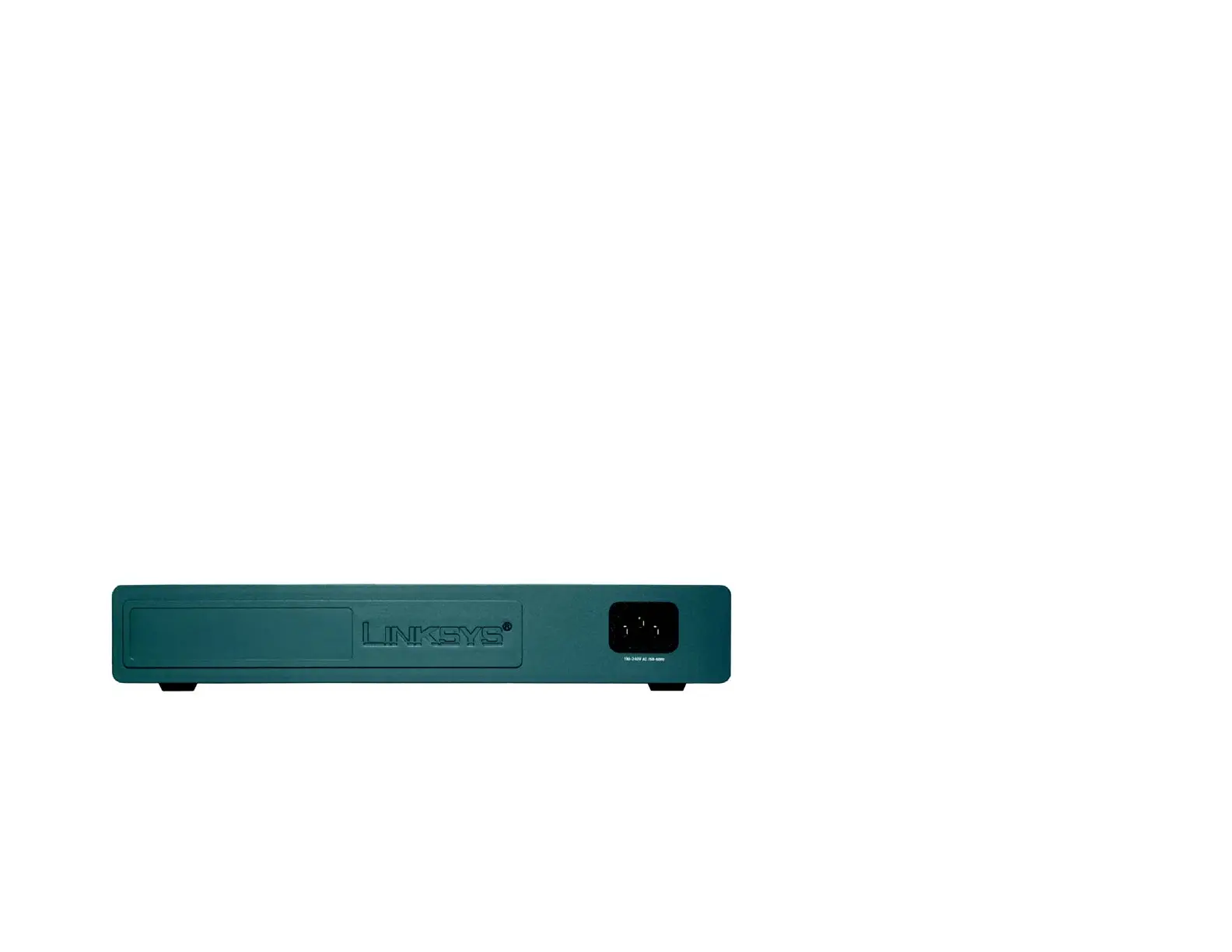

Figure 3-2: Back Panel
Boot: to start a device and cause it to
start executing instructions
