Aluminum Jacks
(Fig. 5) - 1958604
• Capacity - 8,000 lb.
• Stroke - 15.00 in.
• Bore - 2.00 in.
• H - 21.375 in.
• Rod Diameter - 1.50 in.
• 9” Footpad - Standard
• 12” Footpad
• (Option) - 117238
(Fig. 6) - 2365601
• Capacity - 14,000 lb.
• Stroke - 15.13 in.
• Bore - 2.50 in.
• H - 21.50 in.
• Rod Diameter - 1.875 in.
• 9” Footpad - Standard
• 12” Footpad
• (Option) - 117238
(Fig. 7) - 258550
• Capacity - 20,000 lb.
• Stroke - 16.00 in.
• Bore - 3.00 in.
• H - 23.063 in.
• Rod Diameter - 2.25 in.
• 9” Footpad - Standard
• 12” Footpad
• (Option) - 117238
(Fig. 1) - 115842
• Capacity - 22,000 lb.
• Stroke - 16 in.
• H - 20 ½ in.
• D - 3 ⁄ in.
• 12” Shoe Standard
(Fig. 2) - 115841
• Capacity - 12,000 lb.
• Stroke - 15 in.
• H - 19 ½ in.
• D - 2 ⁄ in.
• 9” Shoe - Standard
• 12” Shoe (Option)
(Fig. 3) - 113314
• Capacity - 7,000 lb.
• Stroke - 13.75 in.
• H - 18 ¼ in.
• D - 2 ⁄ in.
• A - 2 ½ in.
• 9” Shoe - Standard
• 12” Shoe (Option)
(Fig. 4) - 117179
• Capacity - 7,000 lb.
• Stroke - 13.75 in.
• H - 18 ¼ in.
• D - 2 ⁄ in.
• A - 5 ¾ in.
• 9” Shoe - Standard
• 12” Shoe (Option)
NOTE: OEM to supply attachment brackets for leveling jacks.
Steel Jacks

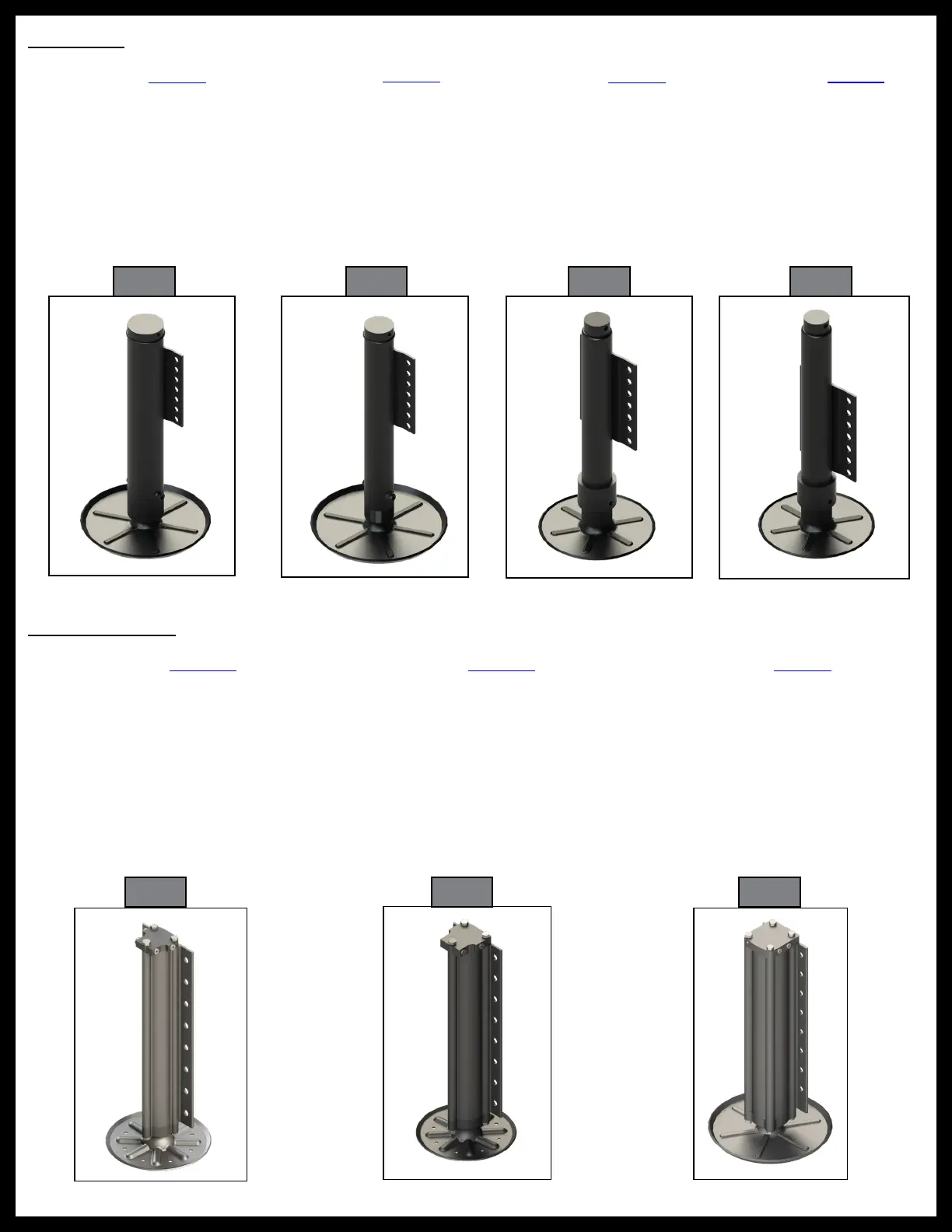

Fig. 1 Fig. 2 Fig. 3 Fig. 4
