Lippert Components Level-Up Installation And Owner's Manual

11
lci1.com 574-537-8900 CCD-0001533 Rev: 06.29.18
Level Up
™
Installation and Owner’s Manual
(For Aftermarket Application)

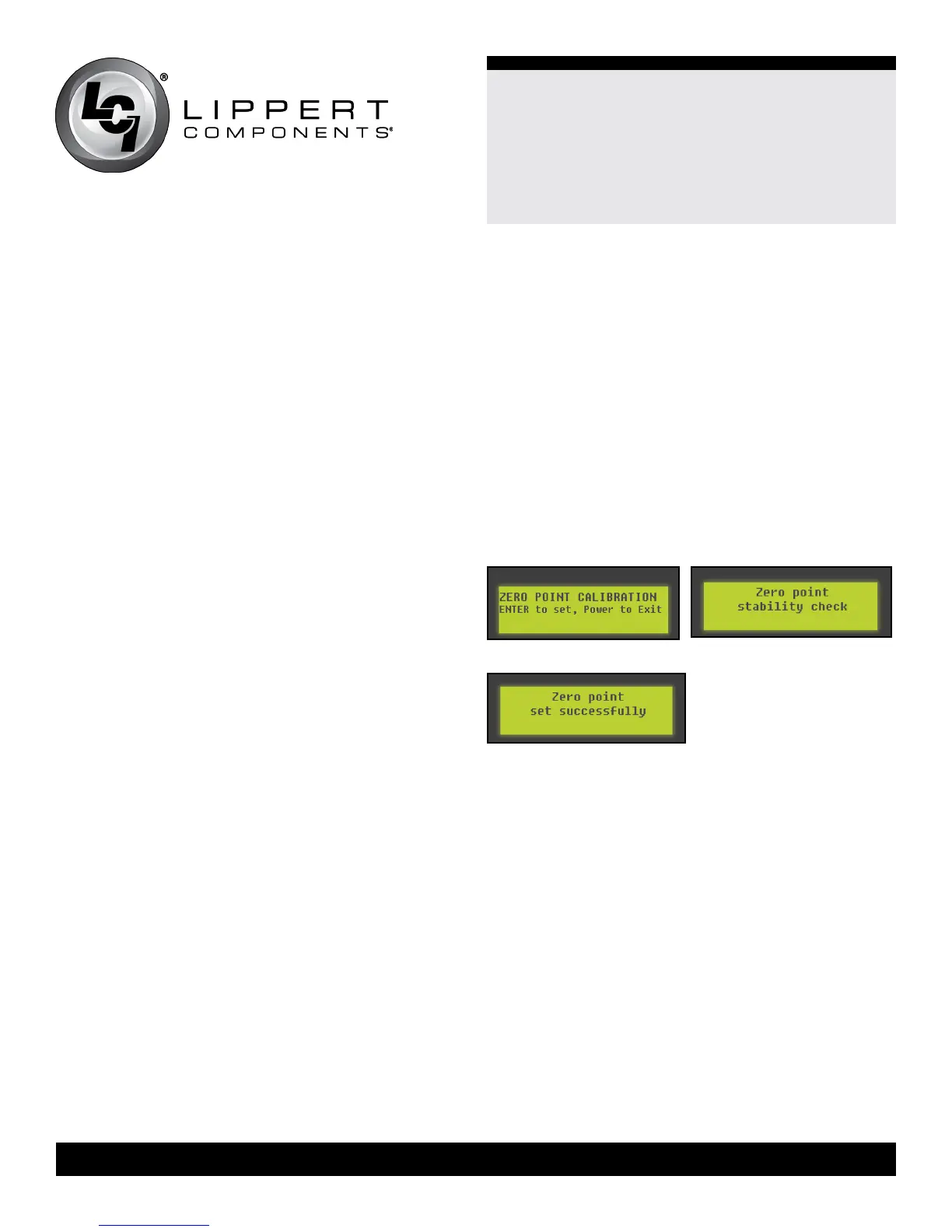

Zero Point Calibration
The “Zero Point” is the programmed point that the trailer
will return to each time the Auto Level feature is used. The
“Zero Point” must be programmed prior to using the Auto
Level feature to ensure the proper operation of the system.
NOTE: Prior to starting this procedure, double check all
connections on the controller, valve coils, jacks, and touch
pad.
1. Manually run the jacks to level the trailer. This is best
achieved by placing a level in the center of the trailer and
leveling it both front to back and then side to side.
2. Once the trailer is level, turn o󰀨 the touch pad.
Fig.27
Fig.28
Fig.29
3. With the touch pad o󰀨, press and release the “FRONT”
button ten (10) times and then press and release the
“REAR” button ten (10) times.
4. The touch pad will ash and beep and the display will
read “ZERO POINT CALIBRATION ENTER to set, Power
to Exit” (Fig.27).
5. To set the current position as the zero point, press the
“ENTER” button.
6. LCD display will read “Zero Point stability check”
(Fig.28).
7. LCD display will read “Zero point set successfully” once
process is complete (Fig.29).
8. The system will set this point as its level state and the
touch pad will turn o󰀨.
19. The display should read “READY: JACKS UP” at this
point.
20. The uid in the reservoir will again be full of air.
Leave the ll cap o󰀨 of the reservoir to allow the air to
escape from the uid.
21. While this is happening, use zip ties to secure the
wiring and hydraulic hoses in the front compartment in a
neat and orderly manner.
22. Repeat the manual extend and auto retract steps at
least one more time. The end goal is that when the jacks
retract, no air will be present in the reservoir.
