Logik L24HEDW19 User Manual

10

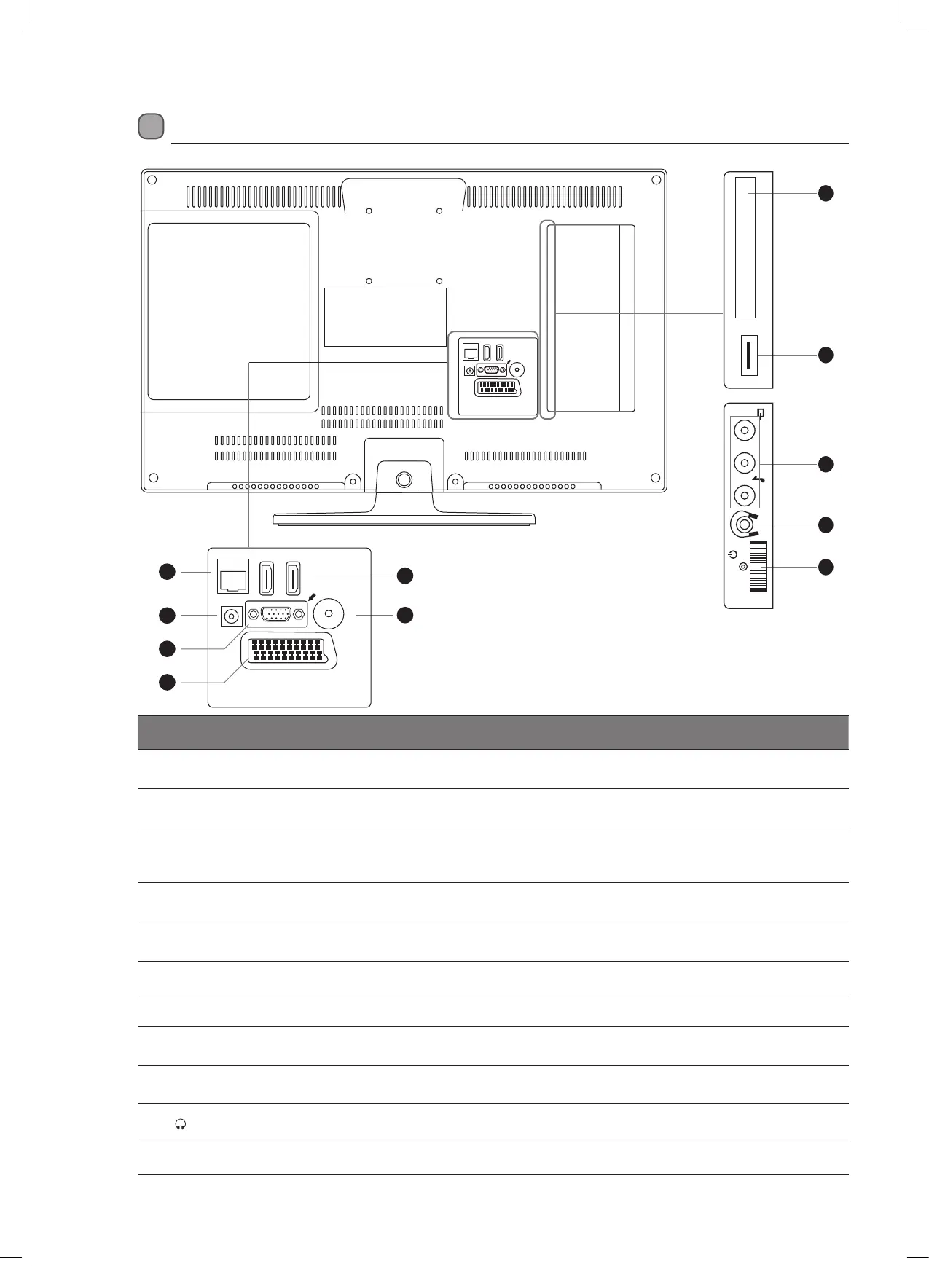

Rear View and Sockets
SCART
SPDIF
VGA
ANT.
HDMI 1
(ARC)
HDMI 2
LAN
2
3
4
1
6
5
7
8
9
10
11
Item Description
1 LAN Connect to a router via a LAN cable for streaming channel services.
2 SPDIF COAX audio out (Digital) - Connects to an audio device via a coax cable.
3 VGA (YPbPr)
(SIDE AV audio L/R also used for VGA
and YPbPr)
Connects to a computer or other devices with a VGA interface.
The VGA input is also used for component input via a VGA to component cable (not
supplied).
4 SCART Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
5 HDMI 1(ARC) & 2
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
6 ANT Connects to the aerial socket on the wall with the RF coaxial cable.
7 COMMON INTERFACE Allows the insertion of a Common Access Module.
8 USB
Allows the insertion of a USB storage device to play video, audio, photo and text files
(USB mode) and record DTV programmes on to a USB storage device.
9 SIDE AV
(audio L/R also used for YPbPr and VGA)
Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
10
Connects to the headphones. The headphone jack must only have 2 divisions to mute the
audio.
11 MULTI FUNCTION SWITCH Switches the TV into standby and on. Selects modes (channel,volume, and source).
SCART
SPDIF
COMMON INTERFACE
USB
5Vdc
Max. 500mA
VGA
ANT.
HDMI 1
(ARC)
HDMI 2
LR
MODE - / I
- +
LAN
SCART
SPDIF
COMMON INTERFACE
USB
5Vdc
Max. 500mA
VGA
ANT.
HDMI 1
(ARC)
HDMI 2
LR
MODE - / I
- +
LAN
