Logitech Harmony 650 User Manual

17
No picture? No sound? No problem!
A passthrough device is a device that you add to your system that a signal passes through unaltered.
For example, if you use your DVD recorder (or VCR) to record shows from your satellite or set
top box, you may need to add your DVD recorder as a passthrough device.

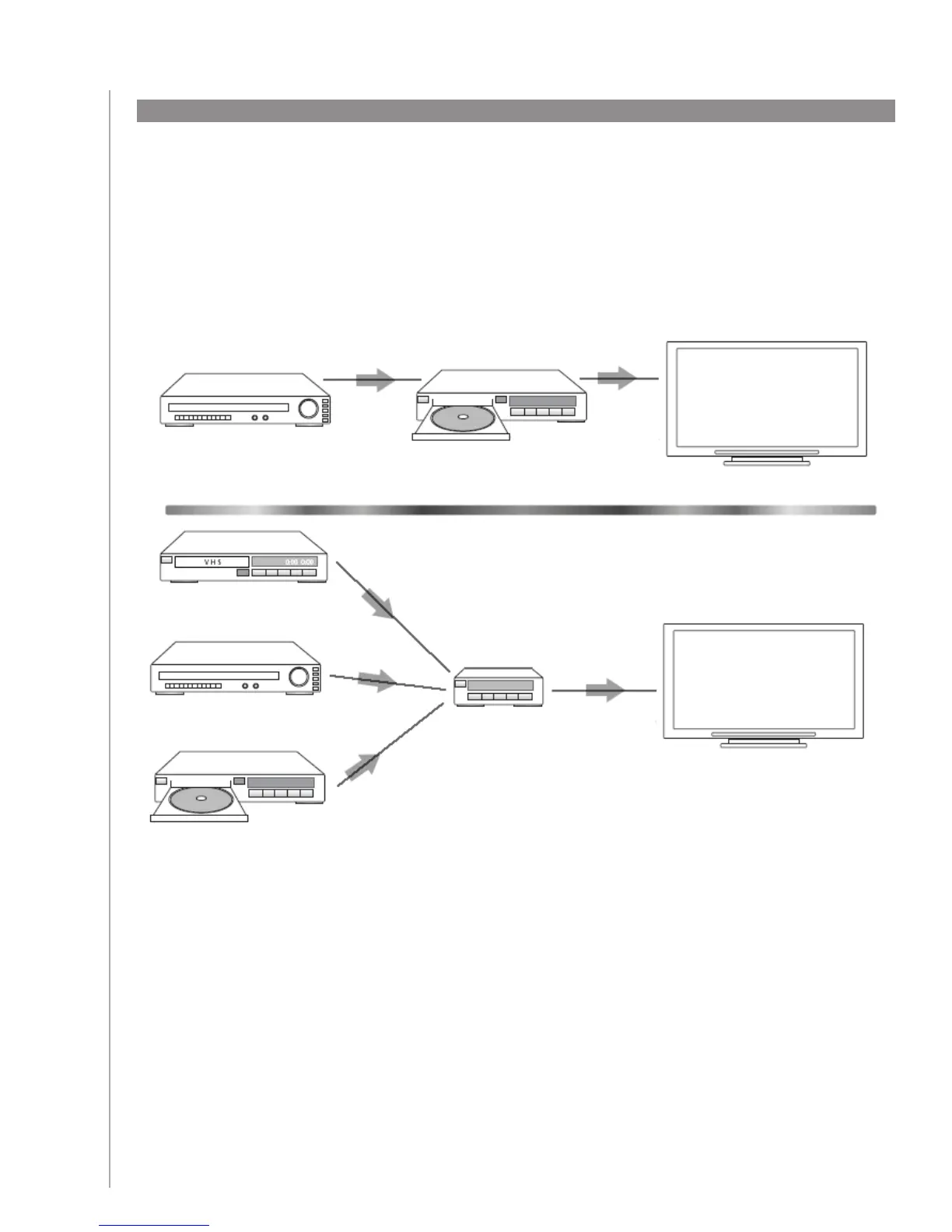

In these examples, the DVD Recorder and the A/V Switch are used as passthrough devices.
Adding an extra device (passthrough) to an Activity
To add an extra Device (Passthrough) to an Activity, go to your home page:
Click the 1. Activities tab.
Click 2. Settings for the appropriate Activity.
Select 3. Review the settings for this Activity, and click Next.
Select 4. Yes, but I want to add more control of options and devices for
this Activity, and click Next.
Follow the online instructions to complete the setup.5.
Digital Set Top Box DVD Recorder
TV
TV
A/V Switch
VCR
Digital Set Top Box
DVD Player

Logitech Harmony 650 Specifications

General

LCD Size	1.5" Diagonal
LCD Resolution	128 x 128
LCD Screen	65, 000 Color
Backlight Color	White
Power Source	AA batteries
Brands Supported	5, 000+
Supported Platforms	Windows XP/Vista/7 MAC OS X 10.3 +
Devices Supported	200, 000+
Maximum number of devices per account	5
IR Learning	Yes (Up to 200 Khz)
Learning Capabilities	Any IR Device (Up to 200 Khz)
IR Transmission Range	Up to 15 m
Backlit keypad	Yes
IR Transmitters	2
Memory Type	Flash
Memory Amount	2MB
Warranty	2 Years

Weight and Dimensions

Weight	170 g (with battery installed)
Dimensions	22.5 x 5.9 x 3.3 cm
