LS tractor XR3037H User Manual

BACKHOE INSTALLATION
WARNING : CAUTION :
CAUTION :
WARNING :
CAUTION :
DANGER :
Note :
WARNING :
CAUTION :
CAUTION :
CAUTION :
Before starting the engine of your tractor,
make sure all operating controls are in park lock or
neutral position.
Operate controls only when seated in the
operator's seat.
STEP 4.
Removal and reinstallation of backhoe sub-
frame should be performed by only LS Mtron dealer.
STEP 1.
STEP 2.
Set the parking brake of the tractor and shut off the
engine.
Before installing backhoe, never use any
control levers as handholds.
Backhoe should be mounted on the proper
subframe assembly.
Make sure the tractor PTO is disengaged.
Backhoe Installation
Never allow any part of body under the
machine and between tractor and backhoe.
Remove 3 point hitch and drawbar if installed.
Connect the backhoe hydraulic couplers to the tractor
couplers.
Make sure white cap is backhoe IN line and
black cap is backhoe OUT line. Connect couplers in
the same color.
Restart the engine and stand beside the rear tire to
possible to control the backhoe control levers.
STEP 5.

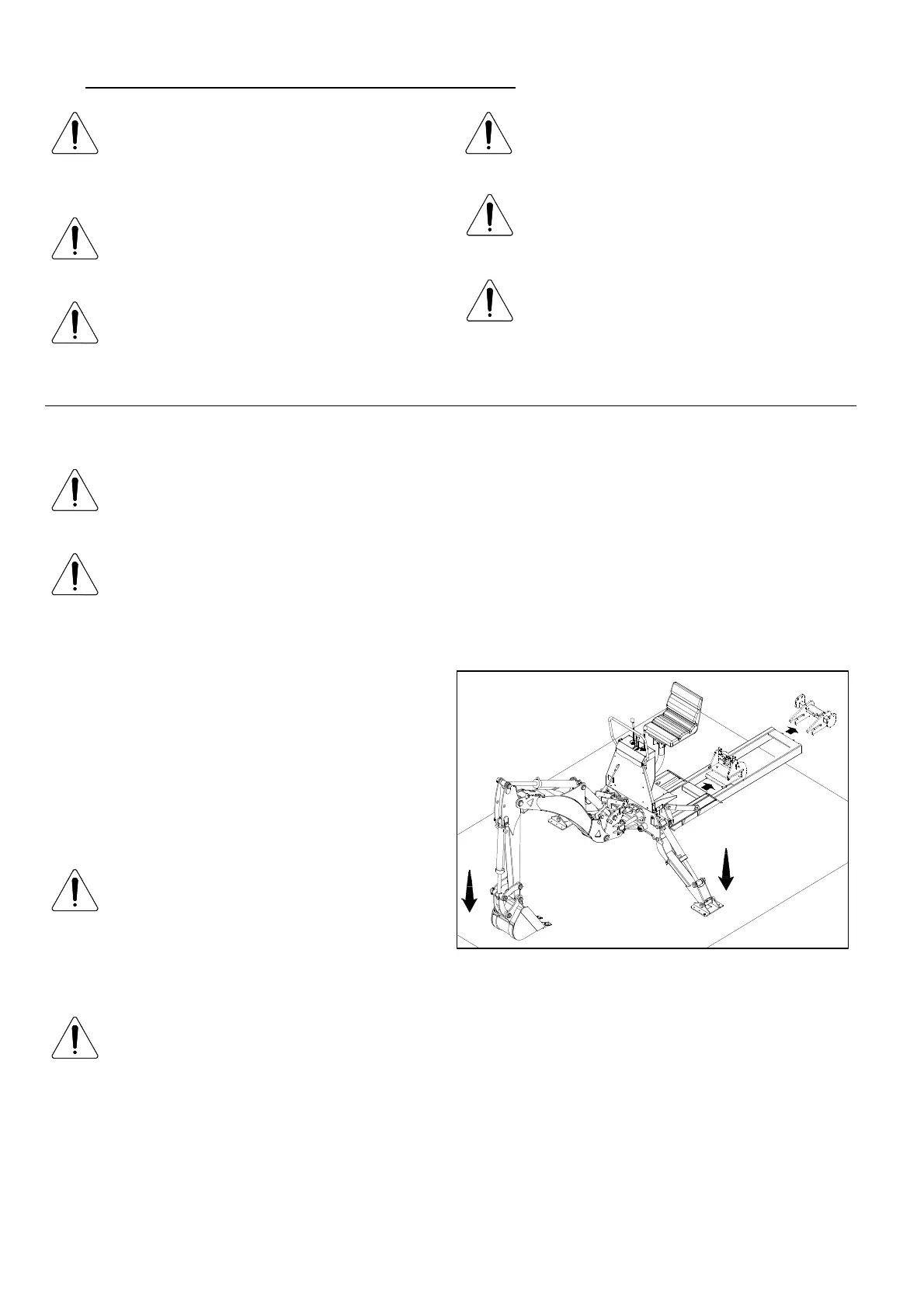

Lower the stabilizers and boom slowly to lift up the
sub-frame parallelly until this sub-frame possible to
install.
Make sure the swing lock pin is installed.
STEP 3.
Before installing the backhoe, set the engine
speed to low idle.
Drive tractor backward slowly to the backhoe parallel
to sub-frame assembly, until the couplers on the
backhoe hoses are able to connect with the hose kit
hydraulic couplers or tractor auxiliary couplers located
rear of the tractor.
- 26 -
