HOW TO CONNET HYDRAULIC LINE

- MT345E/MT350E/MT355E

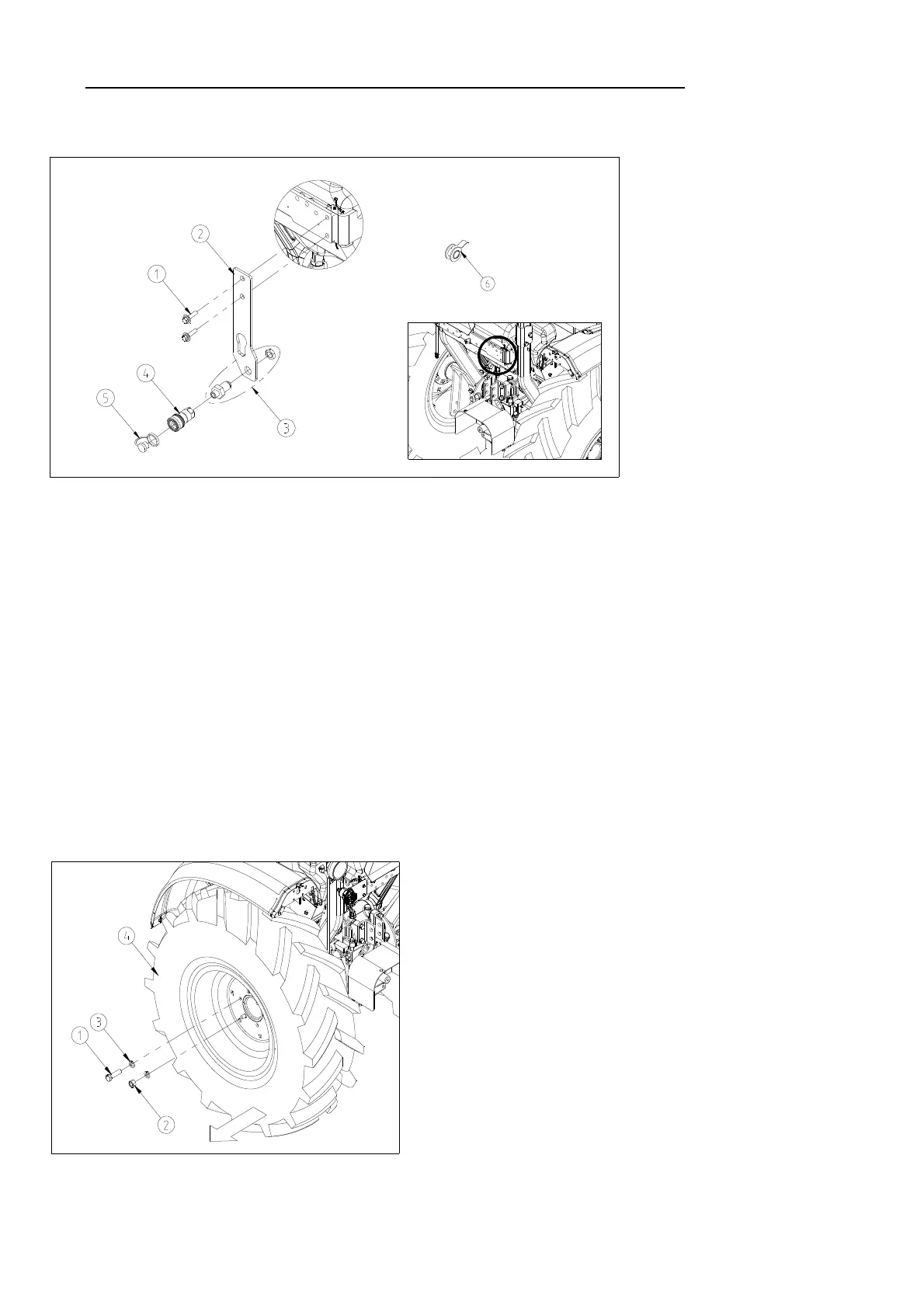

PART 1. Install Plate

① Bolt(tractor)

② Plate

③ Nipple

④ Quick coupler

⑤ Dust plug

⑥ Teflon tape

STEP 1.

STEP 2.

STEP 3.

STEP 4.

STEP 5.

PART 2. Backhoe Hydraulic P-Line

① Bolt

② Nut

③ Washer-spring

④ Tire(LH)

STEP 1.

Remove the bolts(①) from the tractor.

RInstall the dust plug(⑤) to the quick coupler(④).

Install the plate(②) to the tractor with bolts(①).

RWind up the teflon tape(⑥) on the nipple(③) and tighten the quick coupler(④) to the nipple(③).

Install the nipple(③) to the plate(②) with nut as shown in above figure and tighten these nut and nipple(③).

Remove the hardware(①,②,③) and tire(④) from the tractor.

- 30 -
