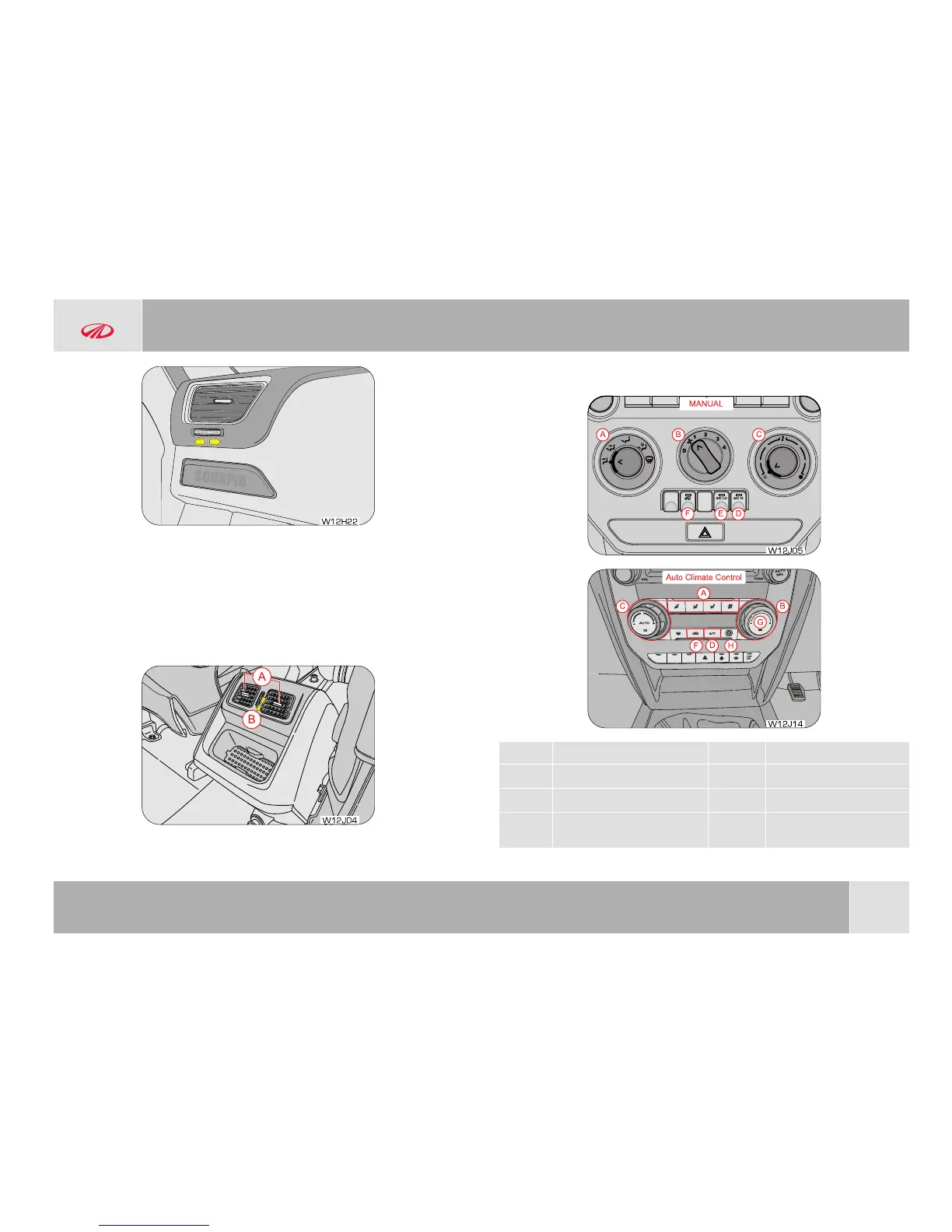

Rotate the thumb wheel right to open or left to close the air vent. Direct air to the
desired direction by the adjusting louvers left/right.
10.4 Second Row Floor Vents
Two vents for the second row are provided at the rear of the floor console. The vents
have adjustable louvers (A) to direct the air flow and thumb wheels (B) for vents
open/close operations.
W12J04
10.5 HVAC Controls
A/C LO A/C HI
A B C
F E D
W12J05
MANUAL
W12J14
Auto Climate Control
A
B
D
F H
G
C
A Air Distribution Control E AC Low ON
B
Blower Speed Control
F Air Re-circulation Switch
C
Temperature Control
G
Blower ON/OFF
D
AC High ON / AC ON (Auto
Climate Control)
H
In-Car Temperature Sensor
(Do Not Touch)
