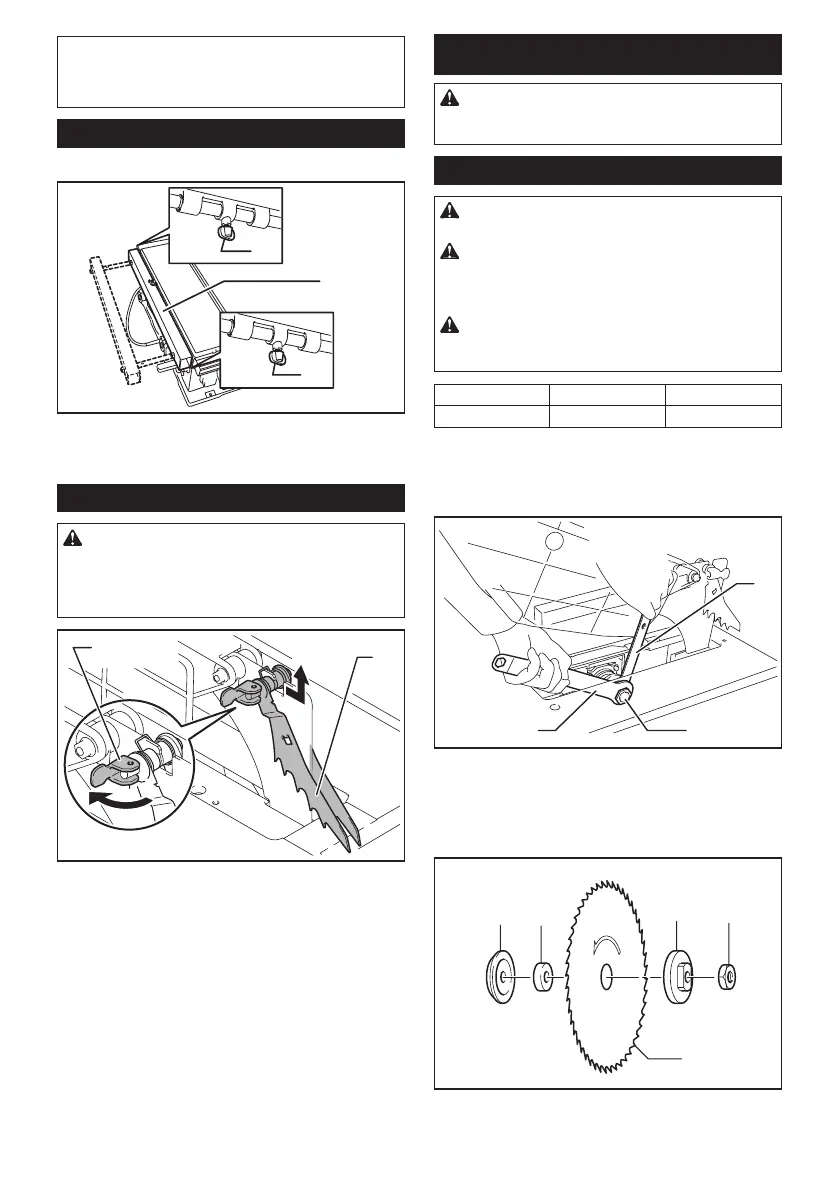

10 ENGLISH
NOTE: When using the sub table (back) during use of
the rip fence, pull out the sub table (back) more than
50 mm so that it does not hit against the top end of
the rip fence.
Sub table (L)
Optional accessory
1
1
2
► 1. Screw 2. Sub table (L)
Sub table (L) (optional accessory) can be installed on
the left side of the table to obtain wider space.
Anti-kickback pawls
WARNING: Use the Antikickback pawls when-
ever possible during the through cutting opera-
tions. This will help prevent the material from being
pushed forward into the operator during a kickback
situation which may result in serious personal injury.
2
1
► 1. Antikickback pawl 2. Clamp
To remove the anti-kickback pawls from the tool, loosen
the clamp on the root of the antikickback pawls and
then pull them out. To install, perform the removal pro-
cedure in reverse.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and unplugged before carrying out
any work on the tool.
Installing or removing saw blade
CAUTION: Always be sure that the tool is switched off
and unplugged before installing or removing the saw blade.
CAUTION: Use only the Makita wrench pro-
vided to install or remove the saw blade. Failure
to do so may result in overtightening or insufcient
tightening of the hex bolt. This could cause an injury.
CAUTION: Use the following saw blade. Do
not use saw blades which do not comply with the
characteristics specied in these instructions.
Diameter Blade thickness Kerf
260 mm Less than 1.9 mm More than 2.1 mm
1. Loosen the screw on the table insert and remove it.
2. Hold the outer ange with the offset wrench and
loosen the hex nut counterclockwise with the wrench.
Then remove the outer ange.
1
3
2
► 1. Offset wrench 2. Hex nut 3. Wrench
3.
Assemble the inner ange, ring, saw blade, outer ange
and hex nut onto the arbor, making sure that the teeth of the
blade are pointing down at the front of the table. Always install
the hex nut with its recessed side facing the outer ange.
12
3
45
► 1. Inner ange 2. Ring 3. Saw blade 4. Outer ange
5. Hex nut

Makita 2704N Specifications

General

Idle speed	5200 RPM
Uncertainty K	3 dB
Sound power level	107 dB
Angle setting range	-0.5 - 50 °
Cutting depth (45º)	64 mm
Cutting depth (90º)	93 mm
Sound pressure level	94 dB
Rotational speed (min)	4800 RPM
Wheels	Yes
Product color	Blue, Grey
Placement supported	Freestanding
Input power	1650 W
Saw blade included	-

Weight and Dimensions

Width	715 mm
Height	483 mm
Weight	35200 g
Cord length	2.5 m
Table depth	665 mm
Table width	753 mm
Bore diameter	30 mm
Blade diameter	260 mm
