14 ENGLISH
OPERATION
CAUTION: Always use "work helpers" such
as push sticks and push blocks when there is a
danger that your hands or ngers will come close
to the saw blade.
CAUTION: Always hold the workpiece rmly
with the table and the rip fence or miter gauge. Do
not bend or twist it while feeding. If the workpiece
is bent or twisted, dangerous kickbacks may occur.
CAUTION: NEVER withdraw the workpiece
while the saw blade is running. If you must with-
draw the workpiece before completing a cut, rst
switch the tool off while holding the workpiece
rmly. Wait until the saw blade has come to a
complete stop before withdrawing the workpiece.
Failure to do so may cause dangerous kickbacks.
CAUTION: NEVER remove cut-off material
while the saw blade is running.
CAUTION: NEVER place your hands or n-
gers in the path of the saw blade. Be especially
careful with bevel cuts.
CAUTION: Always secure the rip fence rmly,
or dangerous kickbacks may occur.
CAUTION: Always use "work helpers" such
as push sticks and push blocks when cutting
small or narrow workpieces.

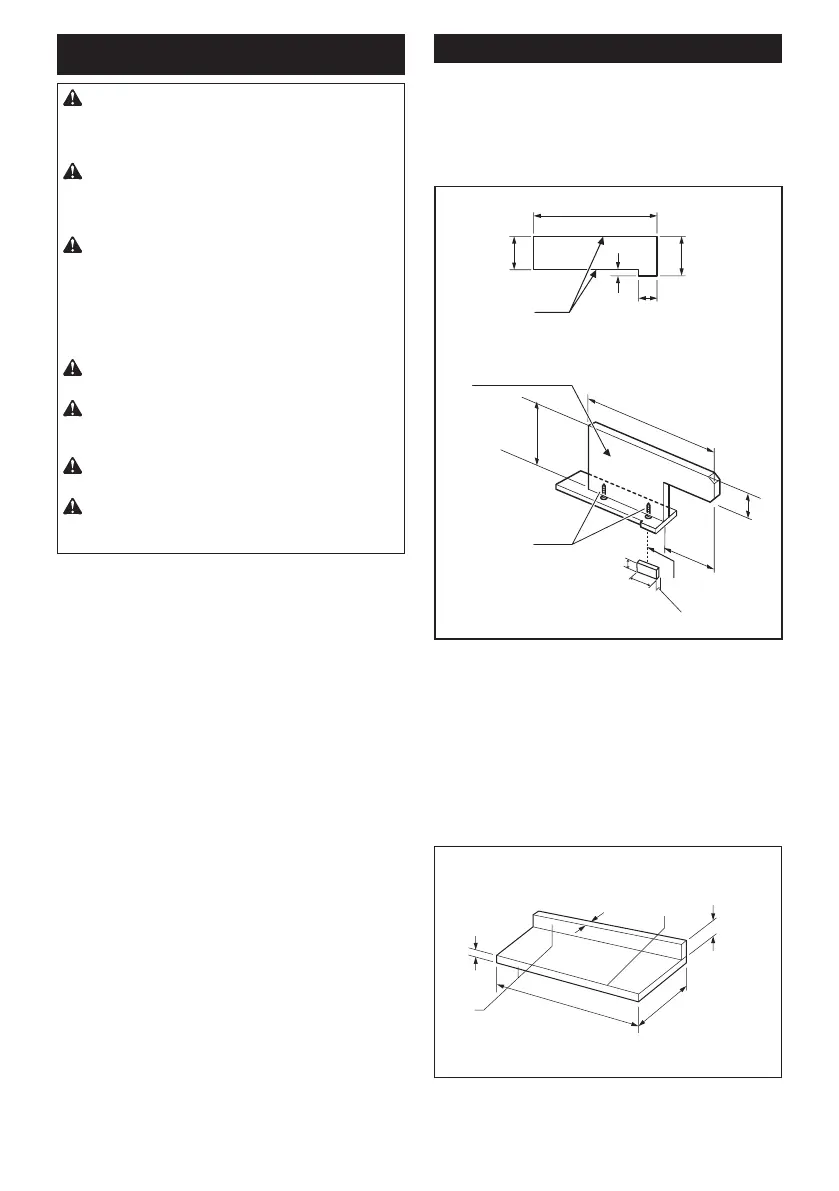

Work helpers
Push sticks, push blocks or auxiliary fence are types of "work
helpers". Use them to make safe, sure cuts without the need
for the operator to contact the saw blade with any part of the
body.
Push block
120mm
300mm
130mm
50mm
6mm
300mm
130mm
100mm
50mm
9.5mm
50mm
8mm
1
2
3
4
► 1. Face/edge parallel 2. Handle 3. Wood screw
4. Glue together
Use a 19 mm piece of plywood.
Handle should be in center of plywood piece. Fasten
with glue and wood screws as shown. Small piece 9.5
mm x 8 mm x 50 mm of wood must always be glued to
plywood to keep the saw blade from dulling if the oper-
ator cuts into push block by mistake. (Never use nails in
push block.)
Auxiliary fence
9.5mm
19mm
120mm
40mm
140mm
460mm
1
► 1. Face/edge parallel
Make auxiliary fence from 9.5 mm and 19 mm plywood
pieces.
