11

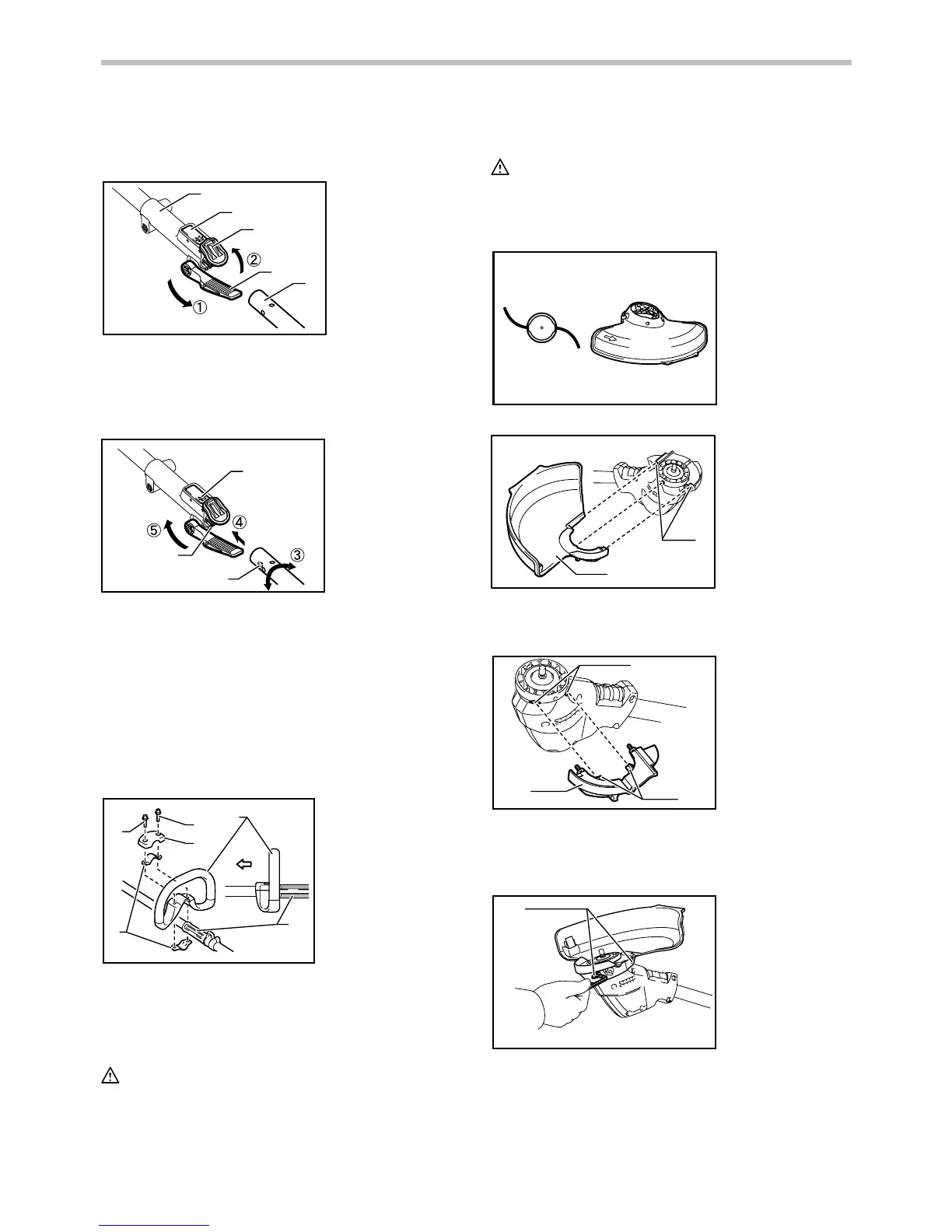

Mounting the attachment pipe
Only for model DUR183L
1
2
3
4
5
013831
To mount the attachment to a power unit:
1. Make sure that the lever is not tightened.
2. To open the entrance of the joint, depress the
joint cover.
1
2
3
013832
3. Align the protrusion on the pipe (cutting tool side )
with the concave portion of the joint part.
4. Insert the attachment pipe into the joint part.
Make sure that the surface of the lock lever is
horizontal to the pipe.
5. Tighten the lever firmly as shown.
To remove the attachment, loosen the lever, press the
front part of the lock lever and then slide the pipe.
Installing the grip
1
2
2
3
4
5
6
014155
Fit the grip onto the shaft pipe and tighten it with two
hex bolts. Make sure that the spacer on the shaft pipe is
located between the grip assembly and the other grip.
Do not remove or shrink the spacer.
CAUTION:
• For model DUR183L, never install the grip on the
joint.
Installing the guard
WARNING:
• Never use the tool without the guard illustrated
in place. Failure to do so can cause serious
personal injury.
013813
1
2
013839
Align the protrusions on the protector with the grooves
of the motor housing.
1
2
3
013838
Align the protrusions on the protector holder with the
concave portions of the motor housing. Insert the
protector holder to the motor housing.
1
014185
After attaching the protector and the protector holder to
the motor housing, tighten the hex bolts securely.
1. Hex bolts
1. Concave
portions
2. Protector holder
3. Protrusions
1. Grooves
2. Protector
1. Grip
2. Hex bolts
3. Cover
4. Clamps
5. Cutting tool side
6. Spacer
1. Lock lever
2.
Concave portion
3. Protrusion
1. Joint
2. Lock lever
3. Joint cover
4. Lever
5. Pipe (Cutting
tool side)
