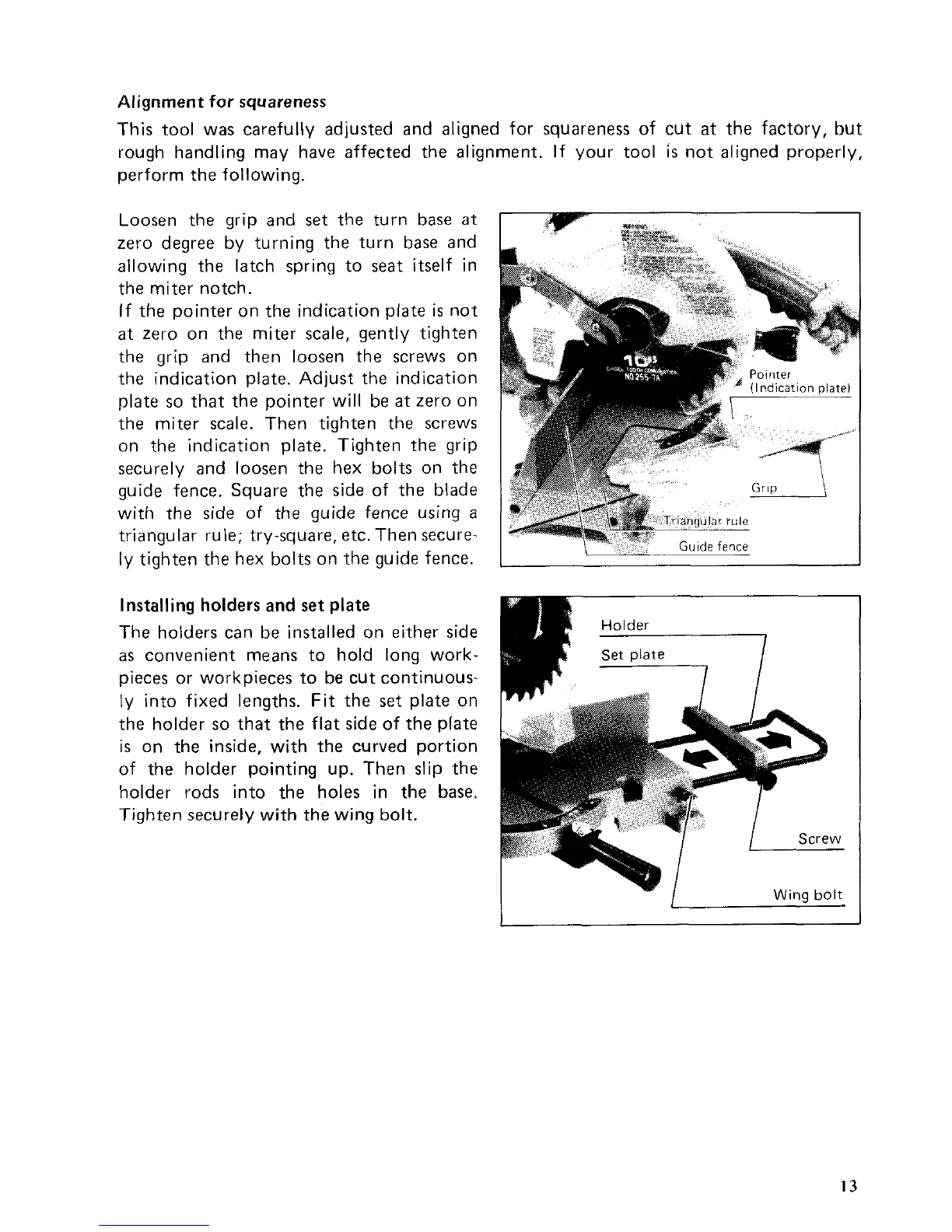

Alignment
for
squareness
This tool was carefully adjusted and aligned for squareness
of
cut
at
the factory, but
rough handling may have affected the alignment. If your tool is not aligned properly,
perform the following.
Loosen the grip and
set
the turn base
at
zero degree
by
turning the turn base and
allowing the latch spring to
seat
itself in
the miter notch.
If the pointer on the indication plate
is
not
at
zero on the miter scale, gently tighten
the grip and then loosen the screws on
the indication plate. Adjust the indication
plate
so
that the pointer will be
at
zero on
the miter scale. Then tighten the screws
on the indication plate. Tighten the grip
securely and loosen the hex bolts on the
guide fence. Square the side of the blade
with the side of the guide fence using
a
triangular rule; try-square,
etc.
Then secure-
ly
tighten the hex bolts on the guide fence.
Installing holders and
set
plate
The holders can be installed on either side
as
convenient means to hold long work-
pieces or workpieces to be cut continuous-
ly into fixed lengths. Fit the
set
plate on
the holder
so
that the flat side of the plate
is on the inside, with the curved portion
of the holder pointing up. Then slip the
holder rods into the holes in the base.
Tighten securely with the wing bolt.
Wing
bolt
-
13
