5. Drive lever control system Mini Marex
At the request of the shipyard or customer, it is possible to purchase from MAN an elec-
tronic drive lever control system made by Mannesmann Rexroth, type Mini Marex.
This control system has plug connections specially configured for MAN.

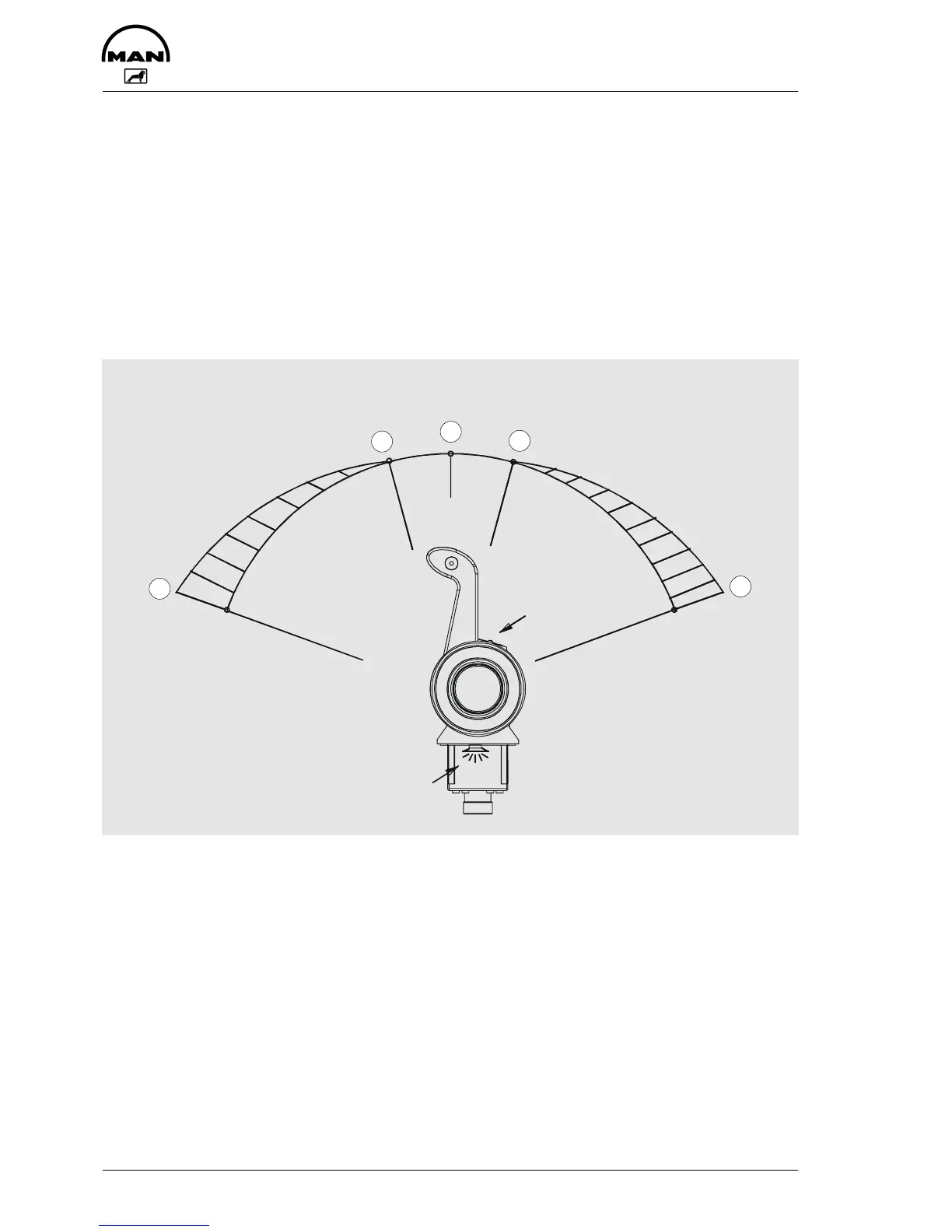

Operation of the control system:
Command master
Infinitely variable
speed adjustment
Infinitely variable
speed adjustment
Max. speed
Max. speed
(lock)
Forwards area
Gearbox forwards
(lock)
Neutral
Gearbox reverse
(lock)
Reverse area
Operating field
Acoustic
signalling
device
3
2
1
2
3
“Neutral” (lock) position À
In this position, the gearbox clutch is disengaged and the power unit is idling. Each time
the “Neutral position” is reached, the control system indicates this acoustically by means
of a short “beep tone”.
