Maintenance and care
52
During continuous operation position the
selector lever that both filter halves are in
operation.
Observe positions of selector lever!
Caution:
Do not leave selector lever in any
intermediate position because this
would be liable to interfere with oil
supply. If in doubt stop engine to
change oil filter.
Renewal of filter cartridges
D Allow the filter content to run off along
drain plugs Ã.
Hold a suitable vessel under hole
Danger:
The oil is hot and under pressure
when the drain plug is opened.
Risk of burns and scalds.
D After releasing the clamping bolts Ç
remove filter bowls Æ
D Renew filter cartridges Ä. Thoroughly
clean all other parts in cleaning fluid
(do not allow cleaning fluid to enter the
oil circuit)
D Use new gaskets Å for reassembly of
filter bowls
Note:
To prevent the seal Å from twist-
ing hold the filter bowl Æ firmly
when tightening the tensioning
screw Ç.
Caution:
Used oil filters are classed as dan-
gerous waste and must be dis-
posed of accordingly.

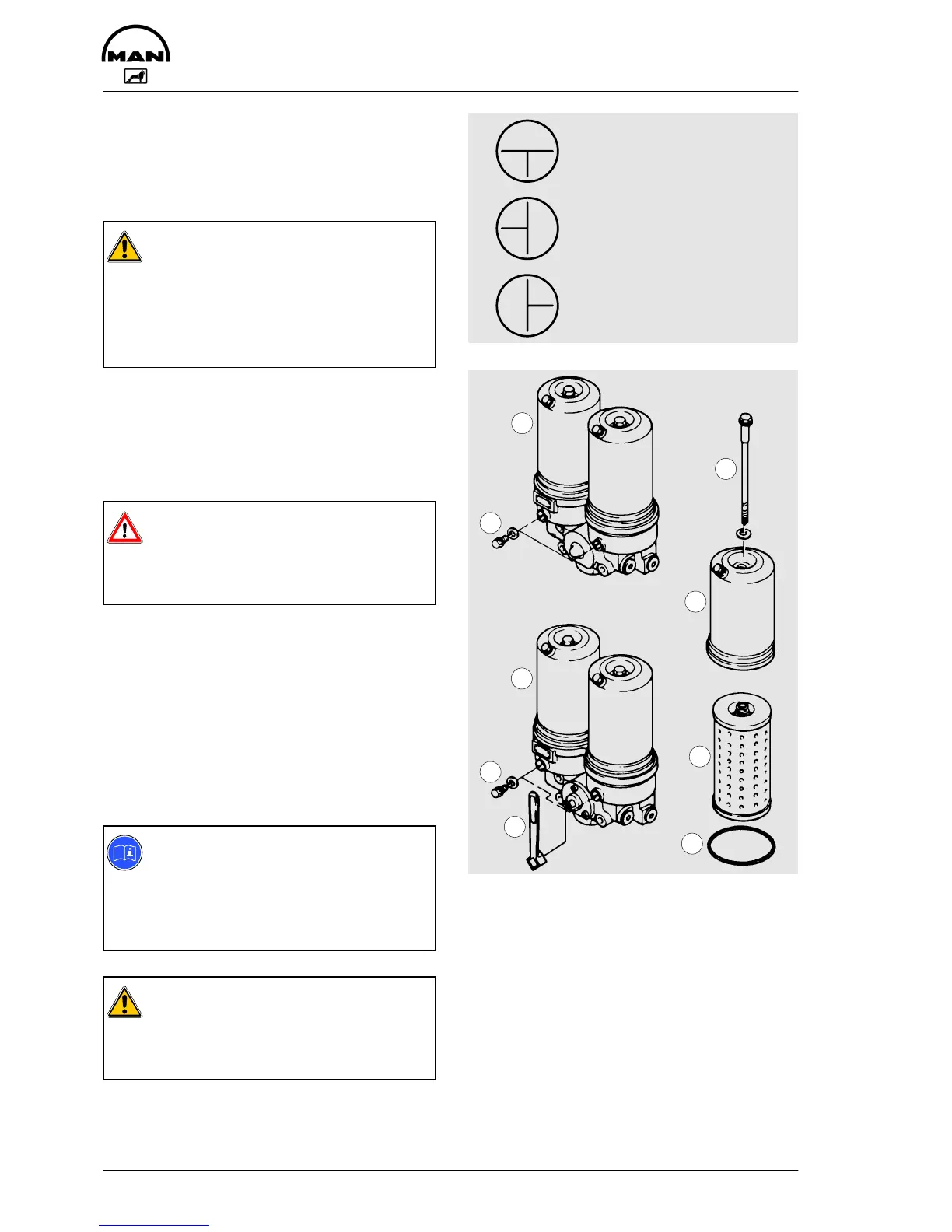

Continuous operation
(both filter halves
in operation)
Right-hand filter
cut out
Left-hand filter
cut out
1
4
2
4
3
6
5
7
8
1 Oil filter, standard design
(non-changeover)
2 Oil filter, changeover-type
3 Selector cock
4 Oil drain plugs
5 Filter cartridge
6 O-ring
7 Filter bowl
8 Clamping bolt
