Commissioning and operation
73
Tabular alarm display
There is a graphical alarm display in parallel to a tabular display. There is an “Alarms" table in the display
that contains all alarms and the “Unacknowledged alarms" table with all unacknowledged alarms. Both can
be seen in the alarm table. This view is opened from any other page using the “ALARMS" key. An excerpt
from the table with the unacknowledged alarms is also found on all other pages.

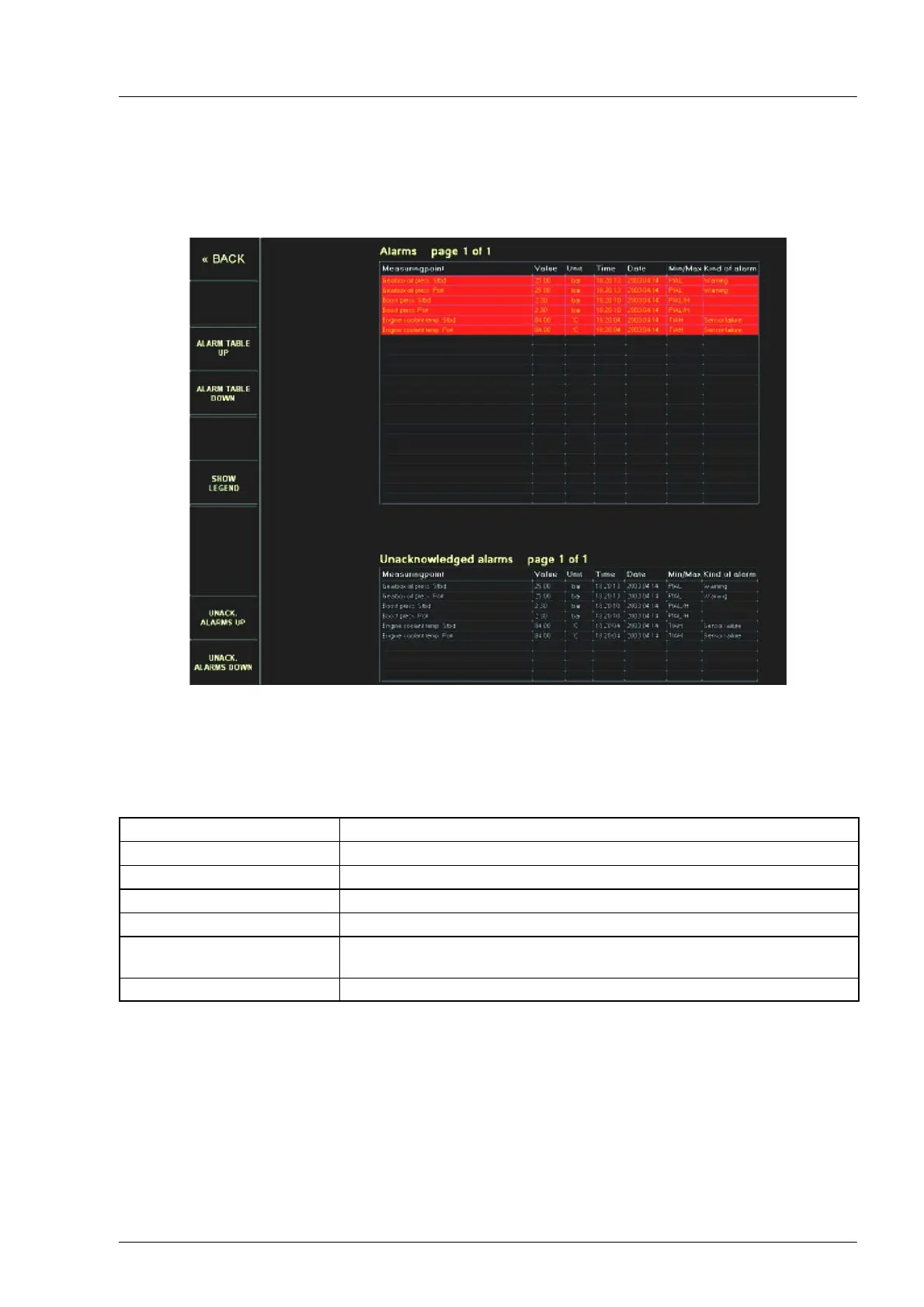

Figure: active alarm table
Structure of the table
The columns “Measuring point", “Unit", “Value", “Time", “Date" and “Kind of alarm" in the tabular display
mean:
Measuring point Contains the designation of the measuring point
Value Contains the measured value at the time of the alarm
Unit Contains the unit of the measurement variable
Time Contains the time the alarm occurred
Date Contains the date the alarm occurred
Min / Max Identification of the type of monitoring of the limit value (see chapter
“Identification of alarm monitoring" on page 71)
Kind of Alarm The three alarm stages: “Sensor failure", “Warning" or “Main alarm"
The control options on the alarm table page are identical to those on the measuring point list.
