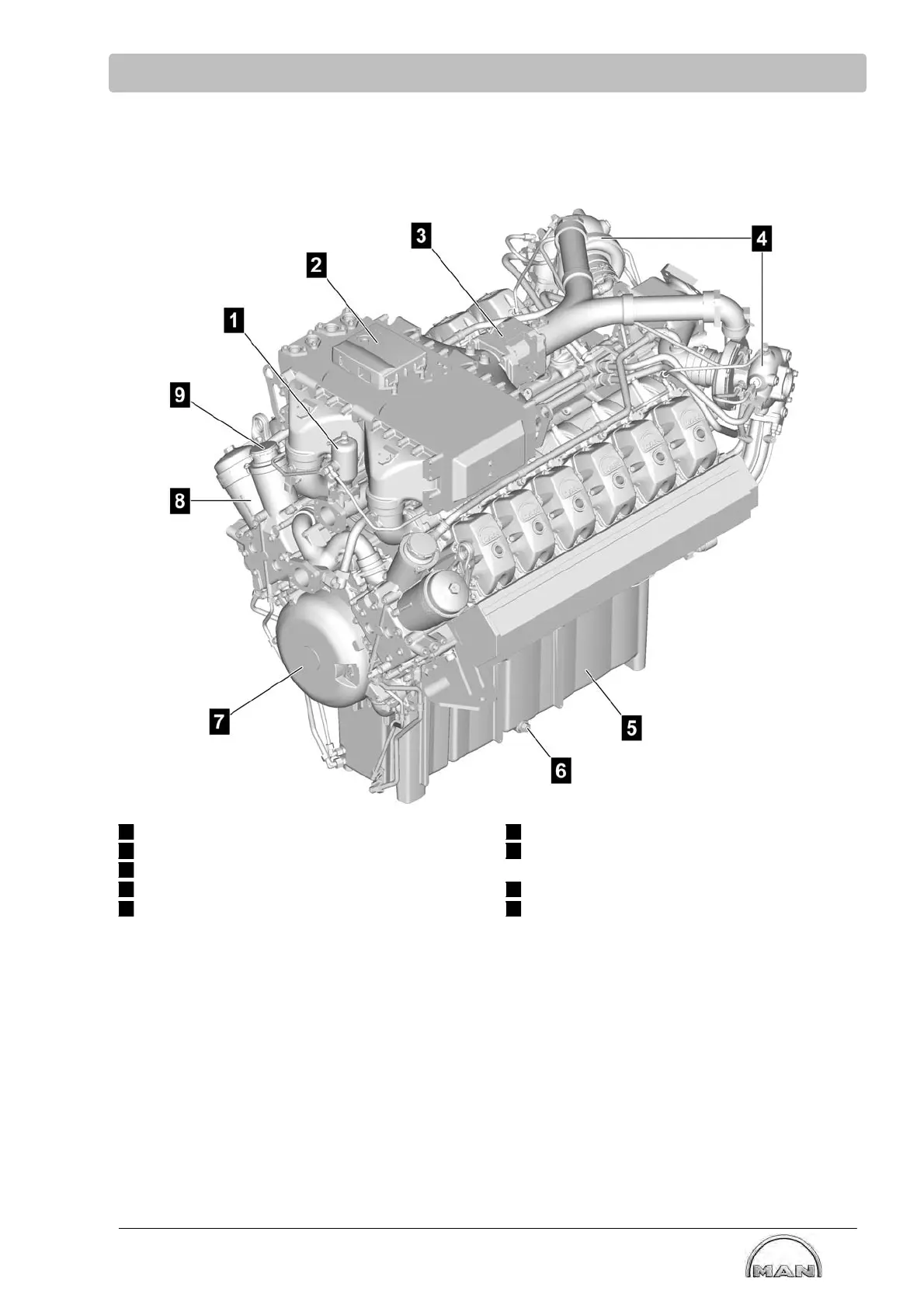

4.3 Engine views E3262 LE202
4.3.1 Front left view
1 Vent housing for coolant
2
Data acquisition
3
Throttle valve
4
Exhaust turbocharger
5
Oil pan
6 Oil drain plug
7
Protective cover for crankshaft
and vibration damper
8
Oil filter
9
Oil separator
