1 - 14

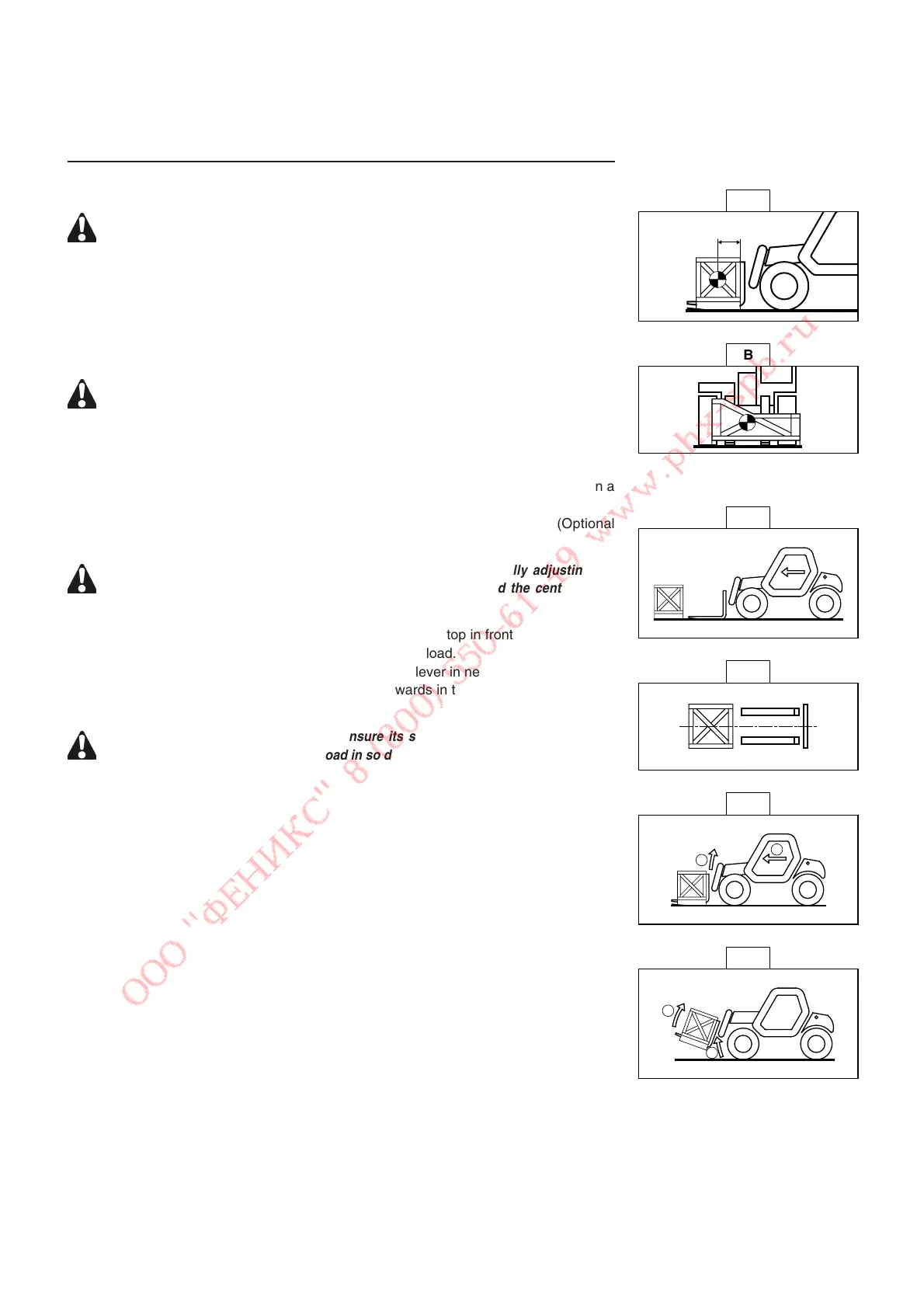

INSTRUCTIONS FOR HANDLING A LOAD
A - WEIGHT OF LOAD AND CENTRE OF GRAVITY
Carrying a load greater than the rated capacity for the lift truck or for the attachment
is prohibited.
- Before taking up a load, you must know its weight and its centre of gravity.
- The load chart relating to your lift truck is valid for a weight with its centre of gravity 500
mm from the heel of the forks (Fig. A). For a higher centre of gravity, consult your
dealer.
- For irregular loads, determine the centre of gravity in the transverse direction before
handling (Fig. B).
For loads with a moving centre of gravity (e.g. liquids), take account of the variations
in the centre of gravity in order to determine the load to be handled (Consult your
dealer) and be vigilant and take extra care to limit these variations as far as possible.
B - TAKING UP A LOAD ON THE GROUND
- Approach the lift truck perpendicular to the load, with the jib retracted and the forks in a
horizontal position (Fig. C).
- Adjust the fork spread and centering in connection with the load (Fig. D) (Optional
solutions exist, consult your dealer).
Beware of the risks of trapping or squashing limbs when manually adjusting the
forks. Always maintain an equal distance between the forks and the centre of the
carriage in order to keep the load completely stable.
- Move the lift truck forward slowly (1) and bring the forks to stop in front of the load (Fig.
E), if necessary, slightly lift the jib (2) while taking up the load.
- Apply the parking brake and place the forward/reverse lever in neutral.
- Slightly lift the load (1), incline the carriage (2) backwards in the transport position (Fig.
F).
Tilt the load sufficiently backwards to ensure its stability (loss of load on braking)
without upsetting the balance of the load in so doing.
