CV620-TBI/TWI User Manual
www.marshall-usa.com34 35

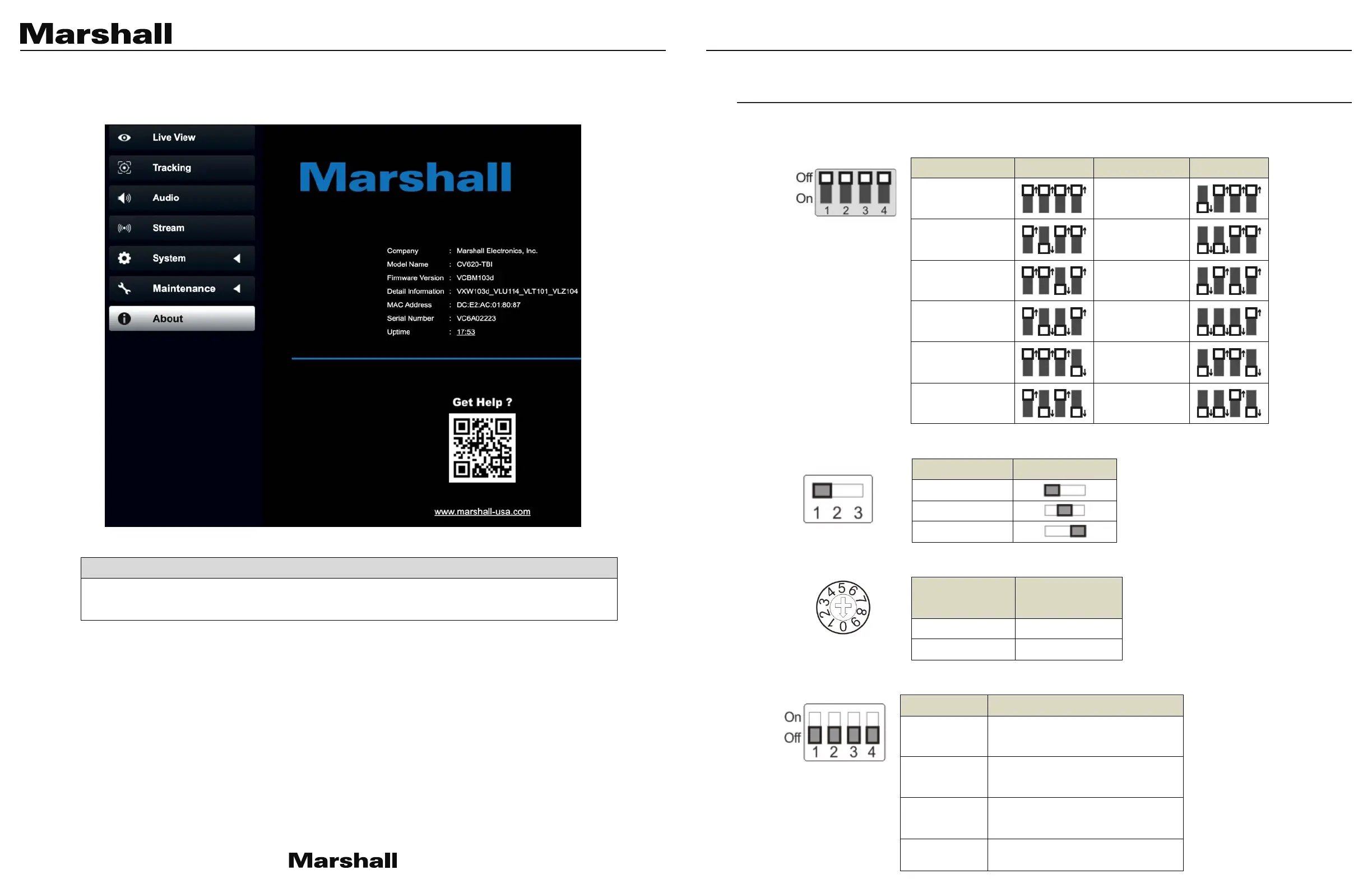

5.2.11 About
Function Descriptions
Display the firmware version, serial number, running time and other related information of the camera
For technical support, please scan the QRcode at the bottom right
Chapter 6 DIP Switch Setting
6.1 OUTPUT Switch
Output Mode Setting Output Mode Setting
1920x1080/60p
1920x1080/50p
1920x1080/30p
1920x1080/25p
1920x1080/60i
1920x1080/50i
1280x720/60p
1280x720/50p
1080/59.94p
1080/59.94i
1080/29.97p
720/59.94p
6.2 IR SELECT
ID Setting
1
2
3
6.3 Camera Address Selector
Setting Function
Descriptions
0~7 ID 0~7
8~9 Reserved
6.4 System Switch
Setting
功能說明
DIP 1
RS-232/RS-422 Communication Control
OFF: RS-232 / ON: RS-422
DIP 2
IR signal output
OFF: Off / ON: On
DIP 3
Communication baud rate
OFF: 9600 / ON : 38400
DIP 4 Reserved
5.2.11 About
Function Descriptions
Display the firmware version, serial number, running time and other related information of the camera
For technical support, please scan the QRcode at the bottom right
CHAPTER 6: DIP SWITCH SETTING
5.2 .11 About
