Marshall Amplification CV630-IP User Manual

English - 5

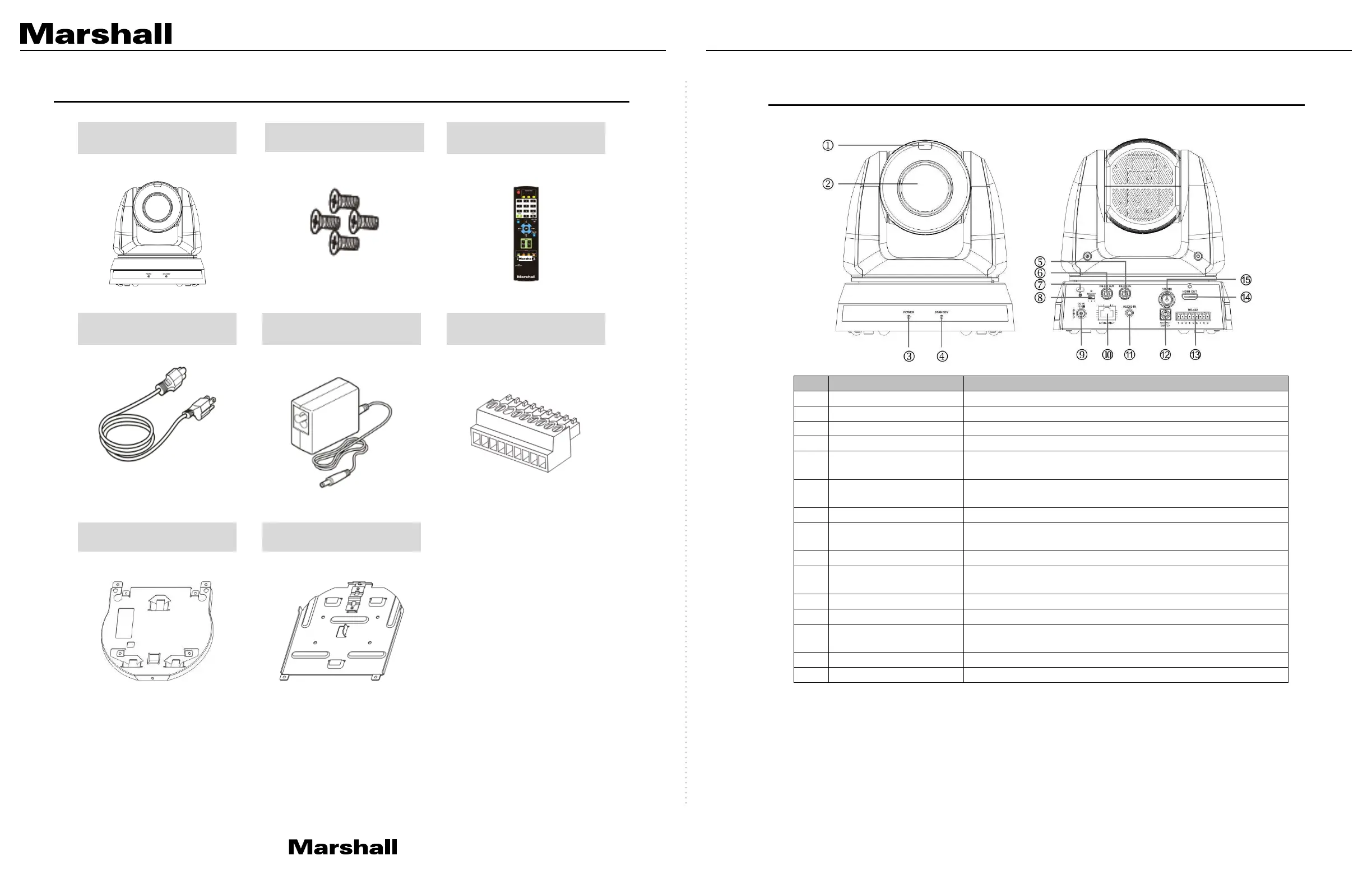

Chapter 2 Package Contents
CV630-IP Remote Control
Power Cord Power Adapter RS-422 Connector
Appearance may vary
depending on
country/region
Metal Plate A Metal Plate B M3 Screws
Silver x8 / Black x2
English - 5
Chapter 2 Package Contents
CV630-IP
Remote Control
Power Cord
Power Adapter
RS-422 Connector
Appearance may vary
depending on
country/region
Metal Plate A
Metal Plate B
M3 Screws
Silver x8 / Black x2
English - 6
Chapter 3 Function Introduction
3.1 I/O functions Introduction
NO.
Item
Function Descriptions
1.
Tally indicator light
Displays the tally light status of the camera
2.
Camera lens
30x HD/UHD camera lens
3.
Power LED indicator
Displays the status of the camera
4.
Standby LED indicator
Displays the status of the camera
5. RS-232 input
RS-232 input port, up to 7 cameras can be connected in a
serial connection
6. RS-232 output
RS-232 output port, up to 7 cameras can be connected in a
serial connection
7.
Kensington lock hole
Lock hole of safety lock
8. IR SELECT
The remote-control ID setting is set to match and control the
specific corresponding Camera (up to three cameras)
9.
DC 12 V power Port
DC power supply connecting port
10. Ethernet port
Network cable port supports routers or hubs of PoE+ (IEEE
802.3at) with power supply
11.
Audio input
Supports Line/Mic In
12.
OUTPUT Switch
Adjust the resolution setting. The default is 1080p/59.94
13. RS-422 Port
RS-422 connecting port; up to 7 cameras can be connected
in a serial connection
14.
HDMI output
HDMI output (Audio output supported)
15.
3G-SDI output
3G/HD-SDI output (Audio output supported)
CV630-IP Manual
www.marshall-usa.com5 6
