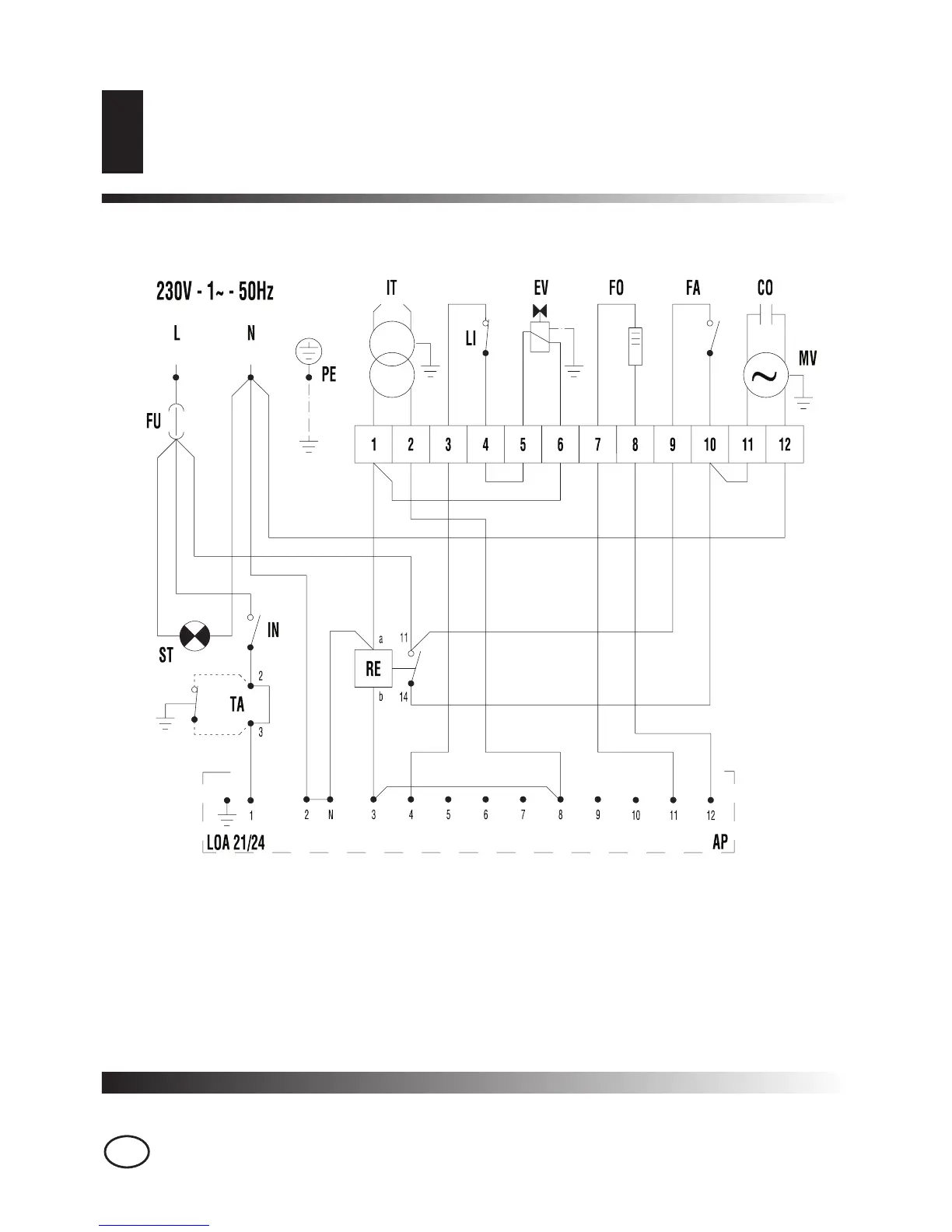

ELECTRIC DIAGRAM
FU Fuse
6A BV80E, BV100E, BV160E, B220CEA
10A BV280E, B354CEA
IT High voltage transformer
LI Safety thermostat
EV Electric valve
FO Photoresistance
FA Fan thermostat
CO Condenser
MV Fan motor
ST Power indicator
IN Switch
TA Ambient thermostat socket
RE Relay
AP Control equipment
