16

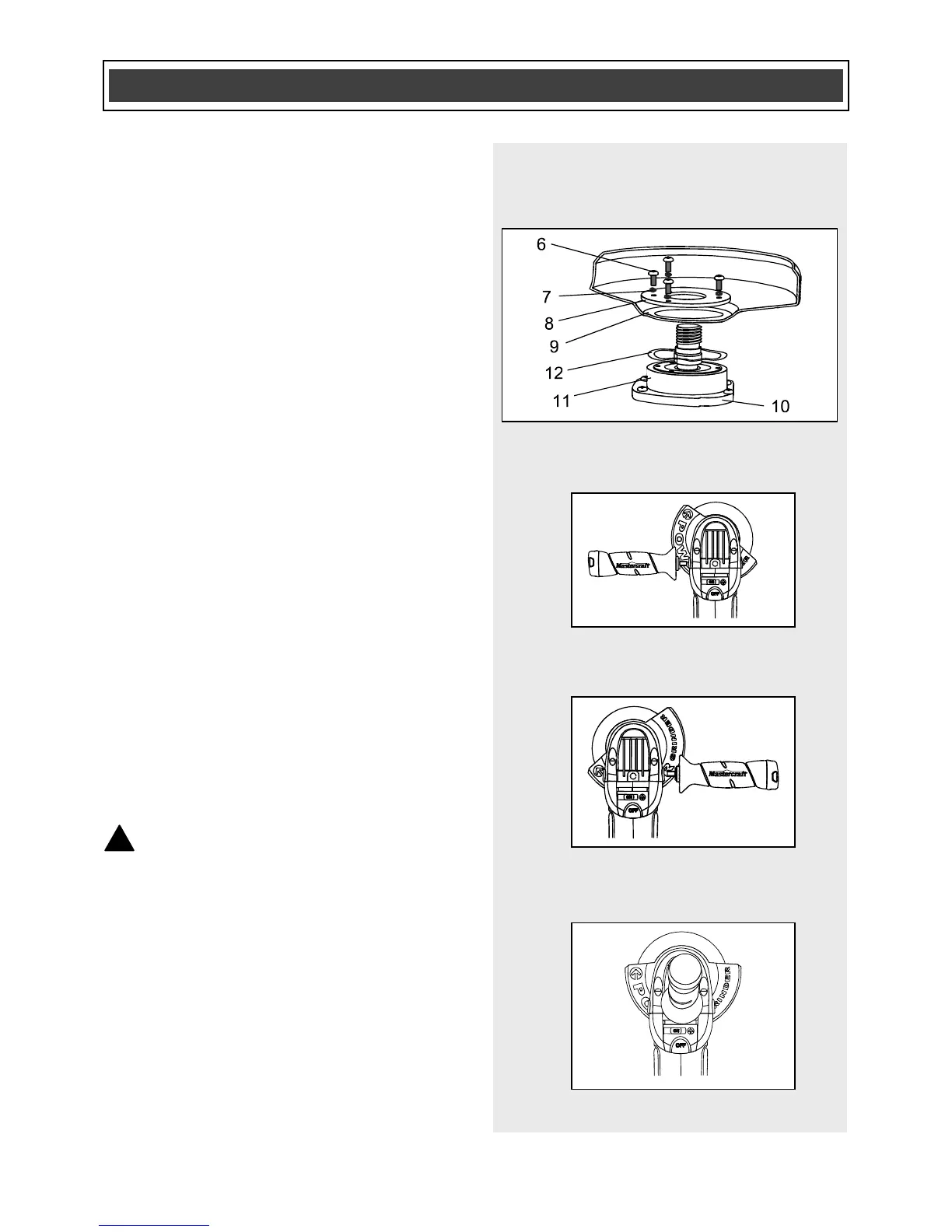

INSTALLING THE GUARD – cont’d
7. Lift off the guard retainer washer (8).
8. Place the guard (9) on the gear
housing (10) (Fig. 5).
NOTE: Make sure the hole in guard fits
over the mounting boss (11) on the gear
housing and that the wave crest washer
(12) is in place.
9. Place the guard retainer washer (8) on
the gear housing boss and fasten in
place with the four screws (6) and four
lock washers (7) that were removed.
10. Rotate the guard to position it toward
the rear of the grinder.
11. Tighten all four screws with the screw
driver.
12. Install the disc flange, making sure it
mates with the flats on the spindle.
13. Install the clamp nut finger tight to
hold the disc flange in place.
POSITIONING THE GUARD
WARNING: The guard must be
positioned correctly to protect the
operator. Rotate the guard to the
correct position as noted in Fig. 6, 7 or
8. Guard placement depends upon
where the handle is positioned.
 Left side
 Right side
 Center
ASSEMBLY AND OPERATION ASSEMBLY AND OPERATING
!
Fig. 5
Fig. 6
Handle on
left side
Fig. 7
Handle on
right side
Fig. 8
Handle in
centre
