9.2 GENERATOR REPLACEMENT
CHAPTER 9: PARTS REPLACEMENT GUIDE

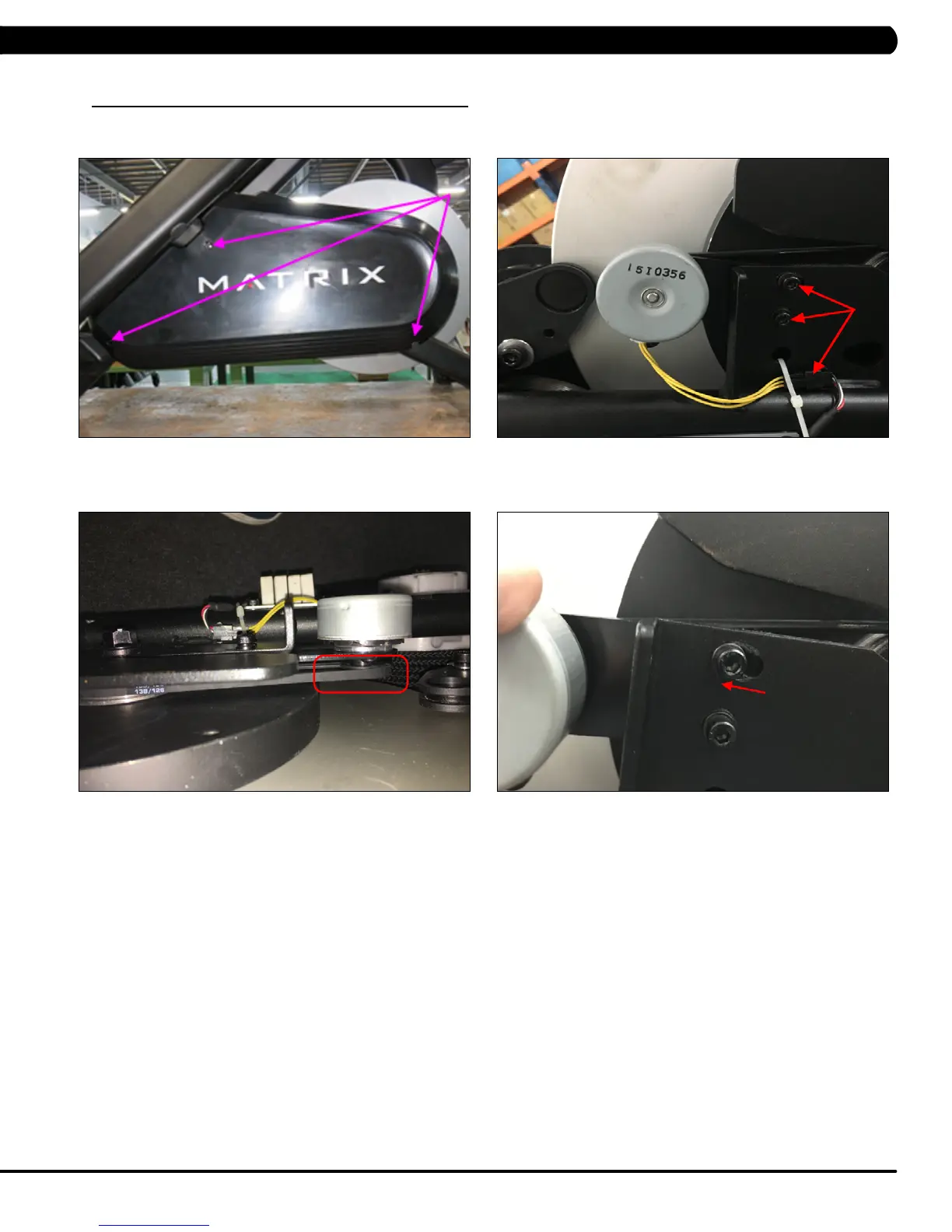

1) Remove the 3 screws holding right covert to the frame (Figure A).
2) Remove the 2 screws and wire holding generator to the frame (Figure B).
3) When replacing new generator, please make sure the belt is on the generator plastic wheel (Figure C).
4) The screw needs to be at the left side of the hole to make sure the belt is tight (Figure D).
FIGURE C
FIGURE D
FIGURE A
FIGURE B
