Matrix ROWER-02 Service Manual

24

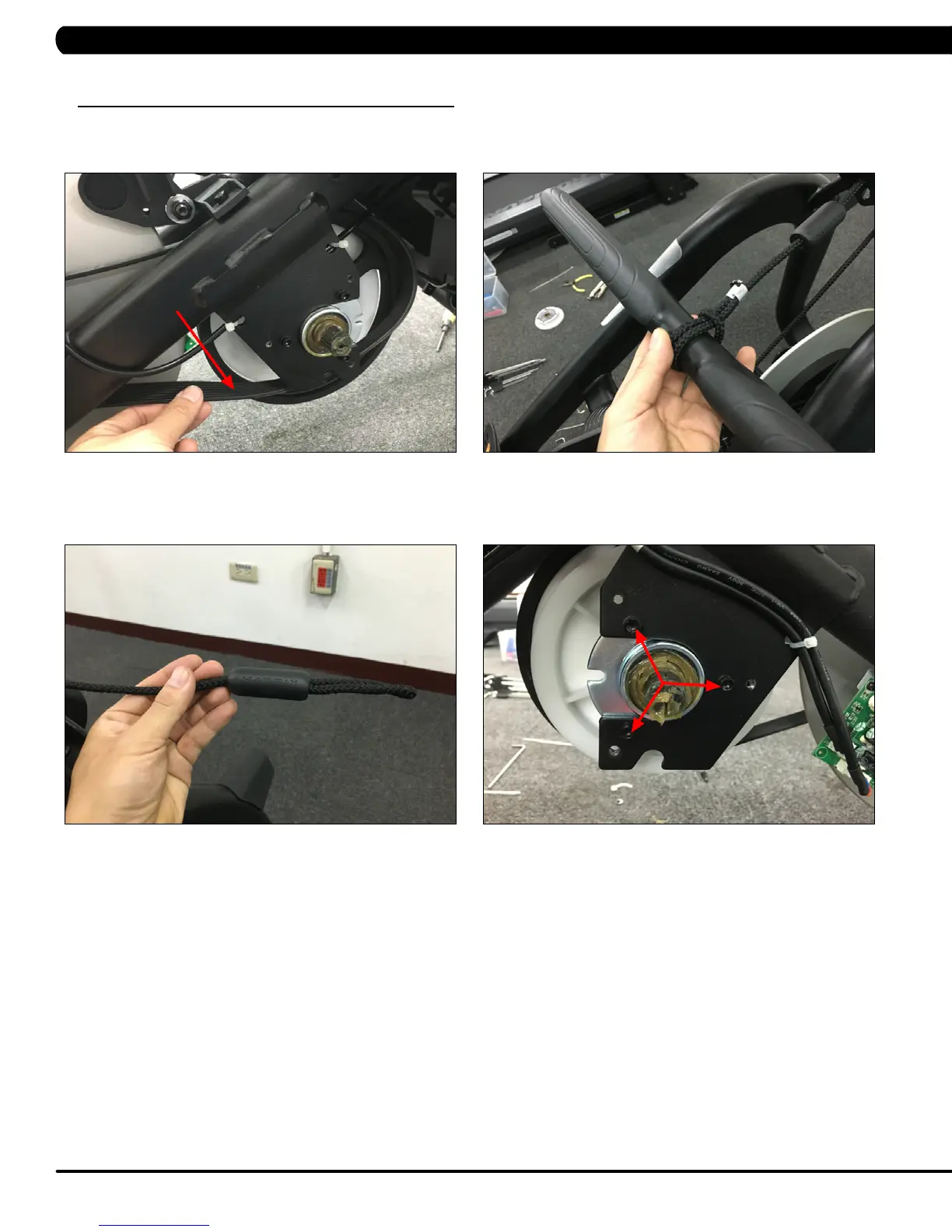

9.6 BELT PULLEY SET REPLACEMENT
CHAPTER 9: PARTS REPLACEMENT GUIDE
1) Remove the Left/Right spiral spring as outlined in Section 9.5.
2) Remove the belt (Figure A). Note: This is a flexonic belt. Remove the flexonic belt by walking it off the side of the pulley.
3) Remove the grip (Figure B).
4) Remove the rope rubber (Figure C).
5) Remove the 6 screws holding Left/Right belt pulley set to the frame (Figure D).
FIGURE C
FIGURE D
FIGURE A
FIGURE B
