9.5 SPIRAL SPRING SET REPLACEMENT
CHAPTER 9: PARTS REPLACEMENT GUIDE
1) Refer to 9.3.1 and 9.3.2 to remove the covers.
2) Remove the 3 screws holding Left/Right spiral spring to the frame (Figure A). Note: Be careful when these 3 screws are released. The spiral
spring will rotate.
3) Insert a pointed screwdriver into the screw holes on Left/Right spiral spring and follow the direction of rotation indicated by 2½ (Figure B).

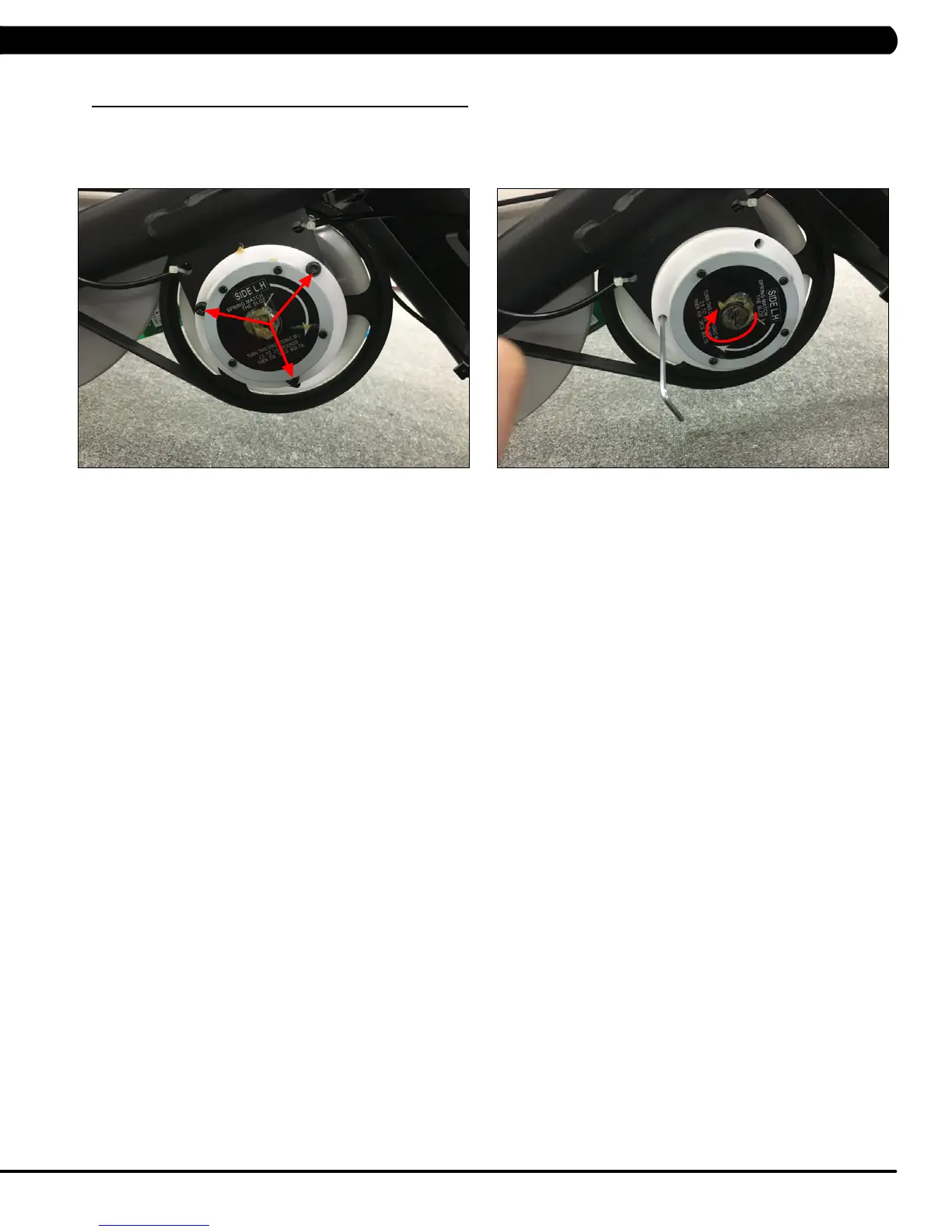

FIGURE A
FIGURE B
