Matrix ROWER-02 Service Manual

26
9.7 FLY WHEEL SET REPLACEMENT
CHAPTER 9: PARTS REPLACEMENT GUIDE
1) Remove the ECB set as outlined in Section 9.3.

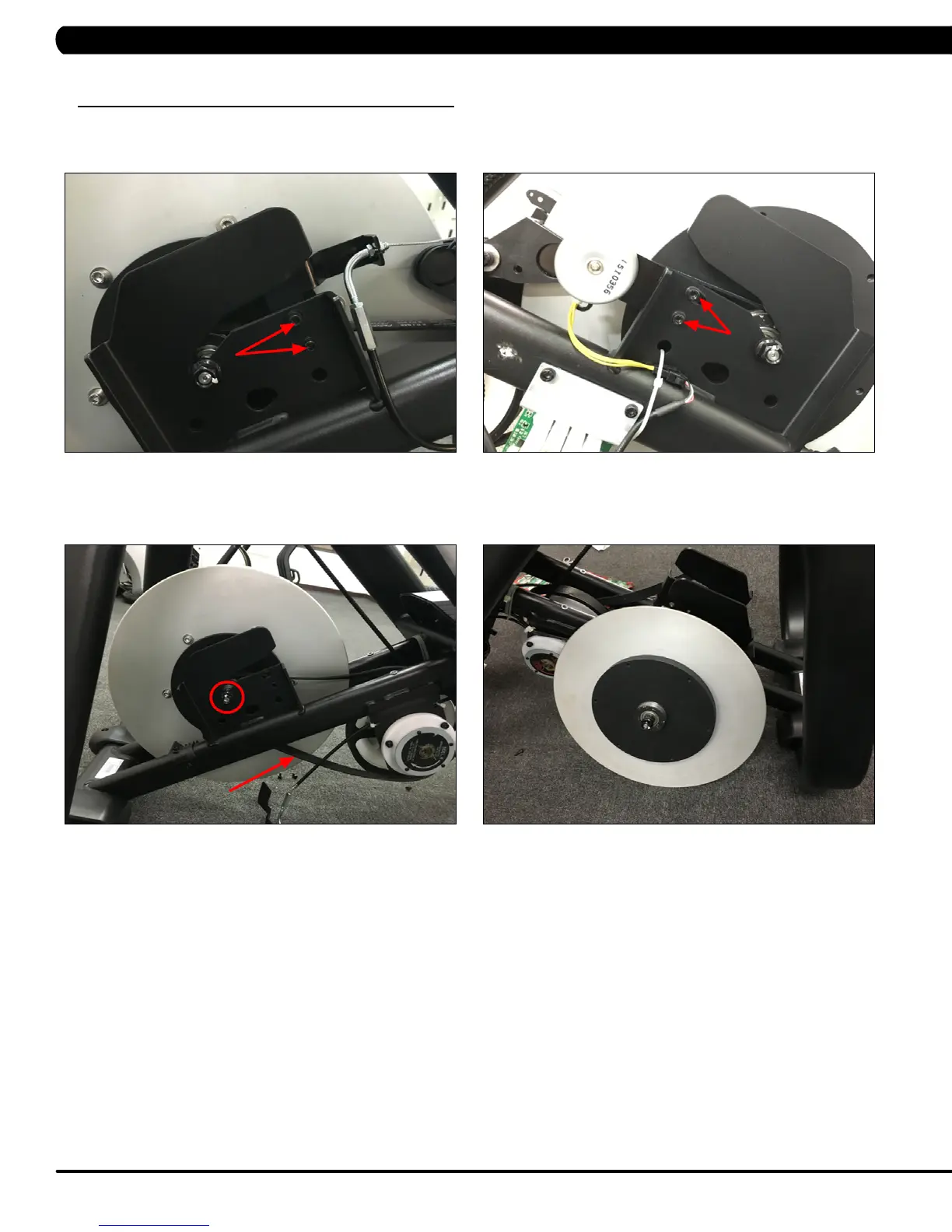

2) Remove the 2 screws holding tension wire plate to the frame (Figure A).
3) Remove the 2 screws holding generator plate to the frame (Figure B).
4) Remover the belt and 2 nuts holding fly wheel set to the frame (Figure C).
5) Take off the fly wheel set (Figure D).
FIGURE C
FIGURE D
FIGURE A
FIGURE B
