9.5 FRONT ROLLER REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Remove the front shroud as outlined in Section 9.1.
2) Using a hook or loop of wire, remove the spring from the drive belt tensioner. The tensioner should now pivot away from the drive belt
(Figure A).
3) Loosen the rear roller screws to remove tension from the running belt.
4) Remove the front roller mounting screws using an 8 mm Allen wrench (Figures B & C).
5) Remove the drive belt from the front roller and remove the roller from the running belt (Figure D).
6) Reverse Steps 1-4 to install a new roller.
7) Test the treadmill for function as outlined in Section 9.22.

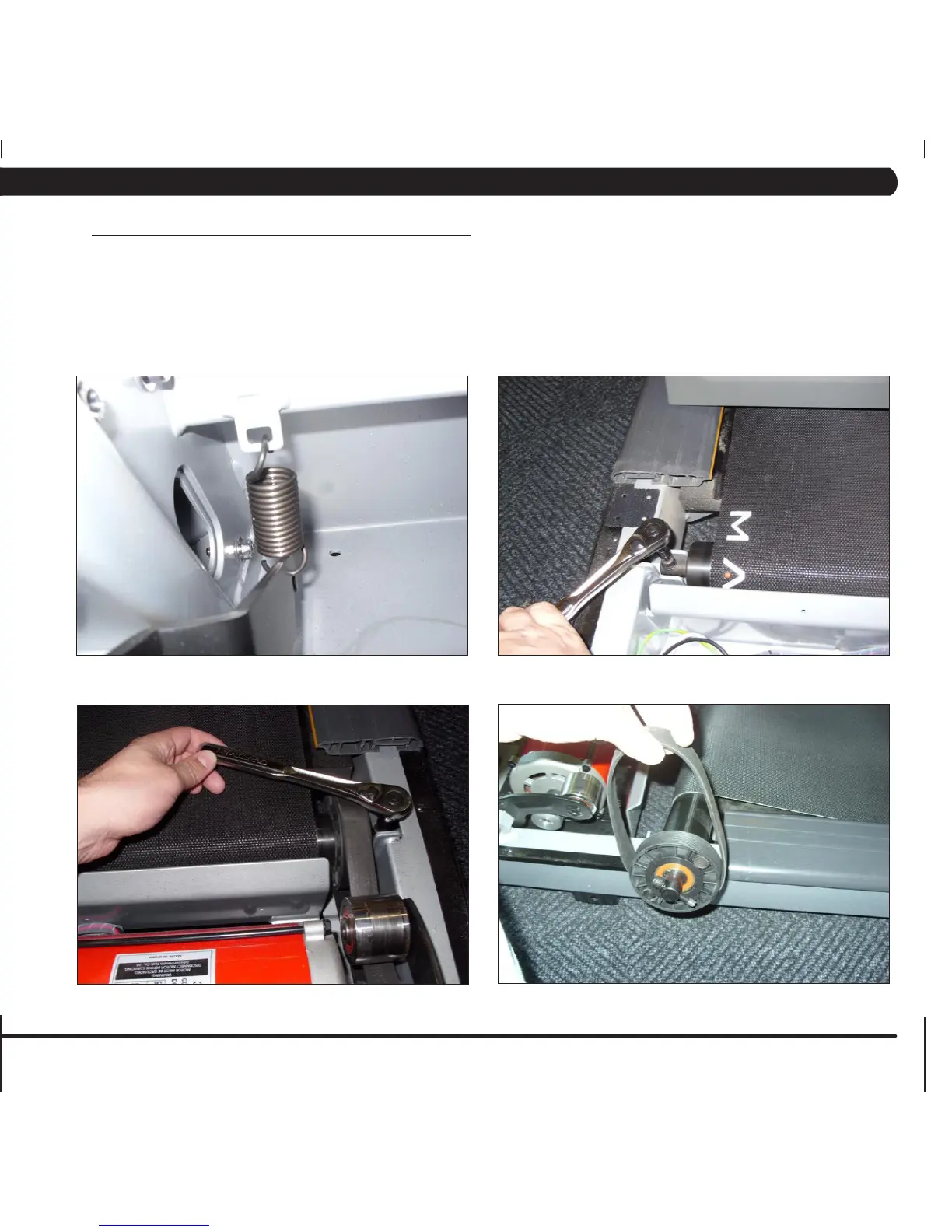

FIGURE A
FIGURE B
FIGURE C
FIGURE D
