Matrix T1XE-01 User Manual

57
9.18 HANDLEBAR FRAME REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power to the treadmill and remove the power cord.
2) Remove the console as outlined in Section 9.13.
3) Remove the console frame as outlined in Section 9.15.
4) Remove the 3 screws on each side holding the handlebar frame to the console mast (Figure A).
5) Lift the handlebar frame up and away from the console mast (Figure B). NOTE: The console cable wiring will need to be removed from the
handlebar frame on the user's right side as it is removed.
6) Reverse Steps 1-5 to install a new handlebar frame.
7) Test the treadmill for function as outlined in Section 9.22.

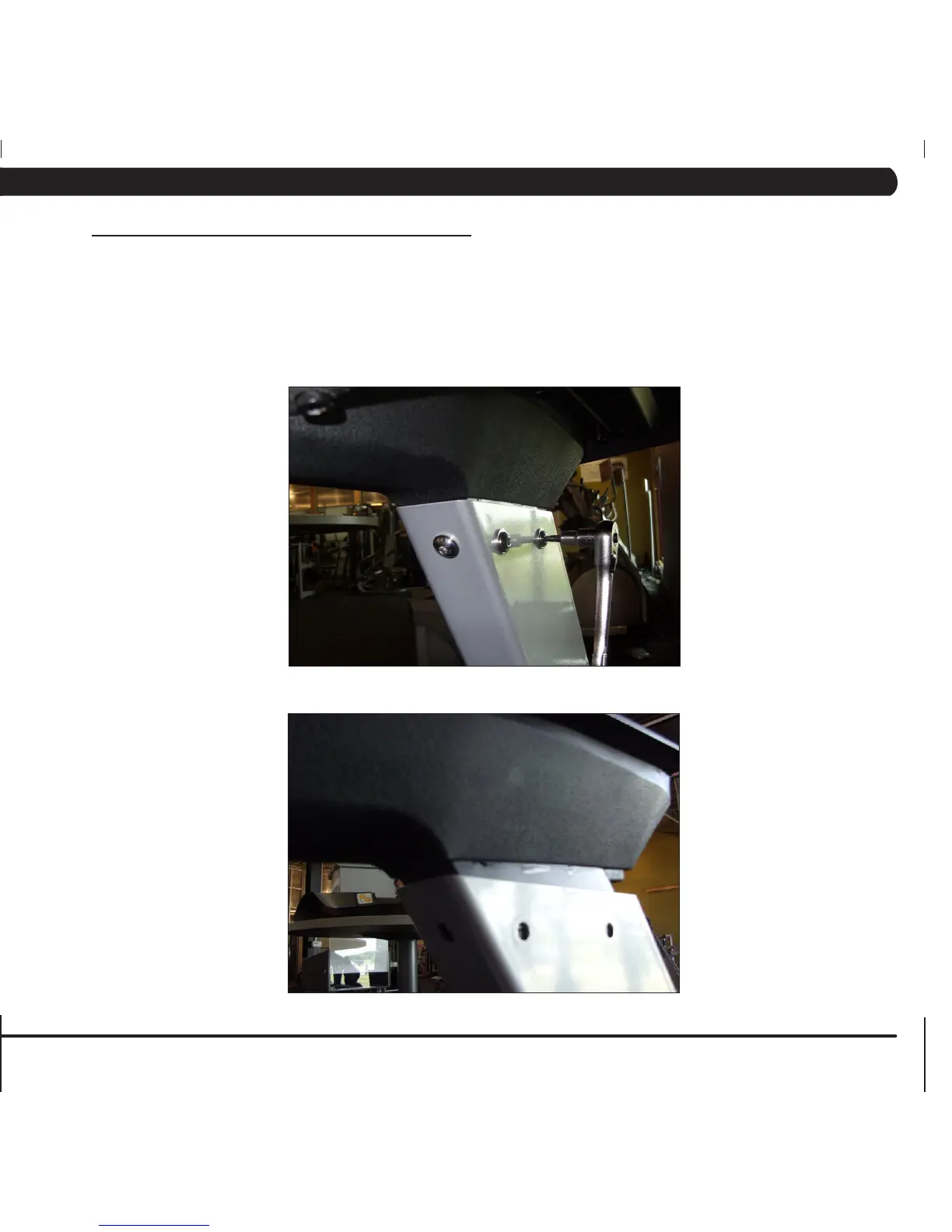

FIGURE A
FIGURE B
