8.15 TROUBLESHOOTING - DISPLAY COLOR ISSUES
FIGURE BFIGURE A
1) SYMPTOM:
a. The display colors are off or there are a "rainbow" of colors on the display.
2) SOLUTION:
a. Check the console cable connections at the upper and lower control boards.

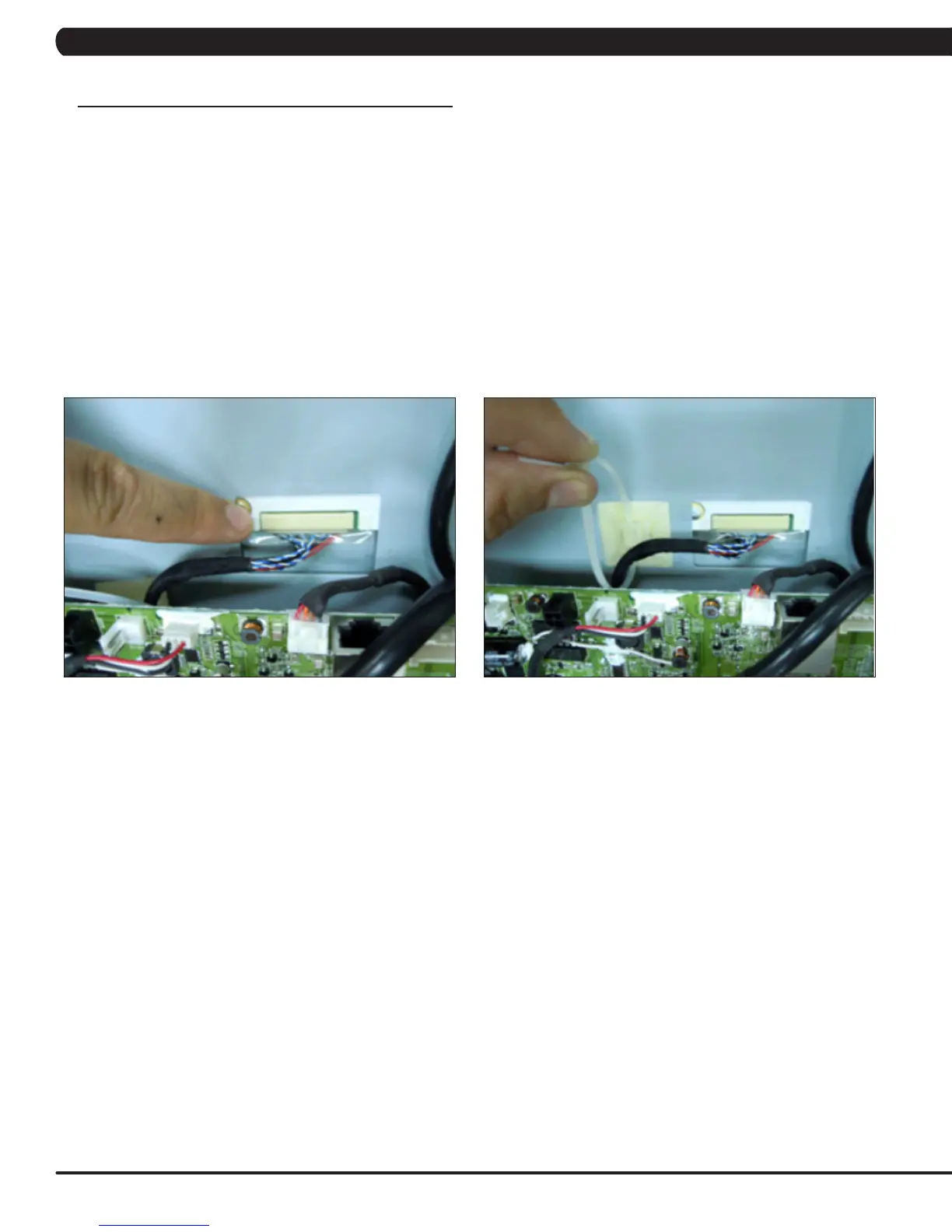

b. Check the LED display wire connection (Figure A).
- This wire connection should be taped in place, add tape if needed.
- This wire should be tie strapped to the frame (Figure B). Add a tie strap if needed.
CONSOLE DISPLAY COLOR ISSUES
CHAPTER 8: TROUBLESHOOTING
