9.12 CONSOLE REMOVAL
1) Turn off the power and disconnect the cord from the machine.
2) Remove the 4 screws holding the console back to the front (Figure A).
3) Lean the console back away from the console and disconnect the coax cable connection.
4) Remove the six 6 mm screws from underneath the console. There are arrows stamped in the plastic at the proper openings (Figure B).
5) Disconnect the remaining connectors holding the console to the frame and remove the console.
6) Reverse Steps 1-5 to install a new console. NOTE: Be sure to re-connect any wire connections removed in Steps 3 and 5 (Figure C).
7) Auto Calibration must ALWAYS be run after replacing the console (see Section 3.5).

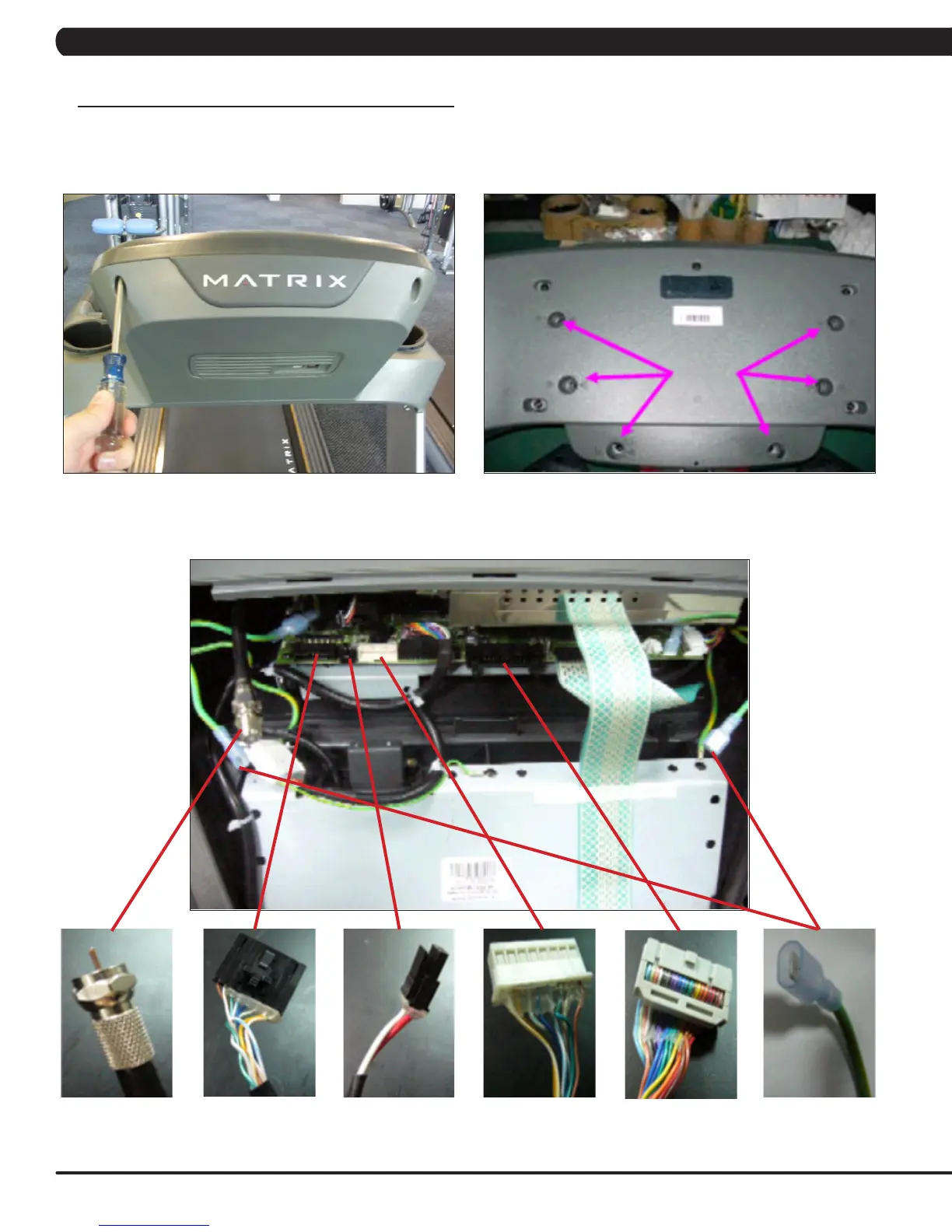

FIGURE A FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE C
