9.6 RUNNING BELT REPLACEMENT
1) Remove the motor cover as outlined in Section 9.1.
2) Remove the rear roller as outlined in Section 9.2.
3) Remove the running deck as outlined in Section 9.3.
4) Remove the front roller as outlined in Section 9.5.

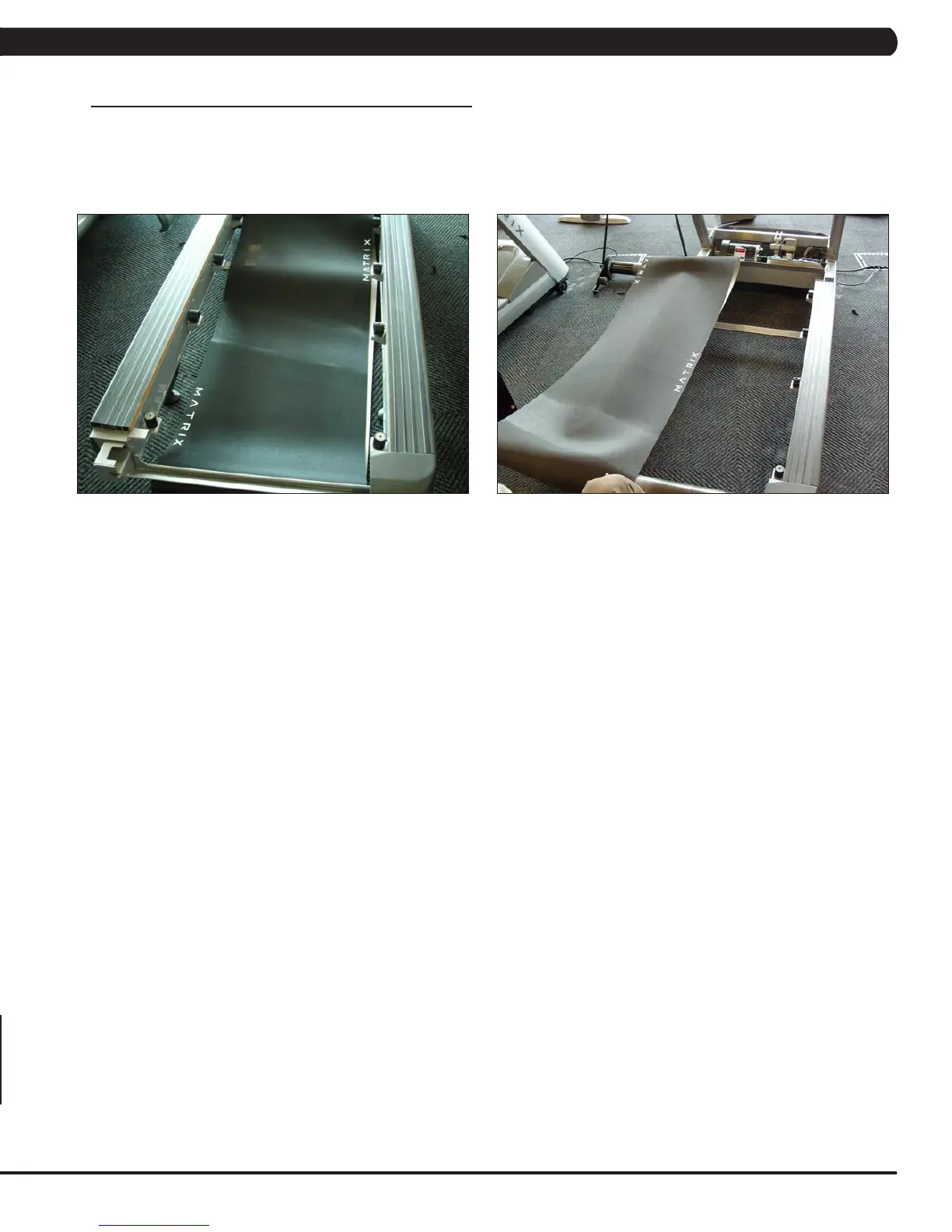

5) Once the rollers and deck are removed, the running belt can be lifted up and off the unit (Figures A & B).
6) Reverse Steps 1-5 to install a new running belt. NOTE: A new running belt should ALWAYS be installed on a new deck surface (deck
should either be flipped or replaced to gain a new surface).
7) Tension the running belt as outlined in Section 3.6.
FIGURE A
FIGURE B
