9.15 HANDLE BAR SERVICE
1) Turn off the power and disconnect the cord from the machine.
2) All items on the handle bar are removed using a Phillips screwdriver from the underside of the bar.
3) Once the screws are removed, lift the part carefully and disconnect any wire connections to fully remove the handle bar.
4)ReplacethepartsasneededonhandlebarincludingtheQuickStartKey,ResistanceandInclineToggles,andtheHeartRateGripPlates
(Figures A-F).

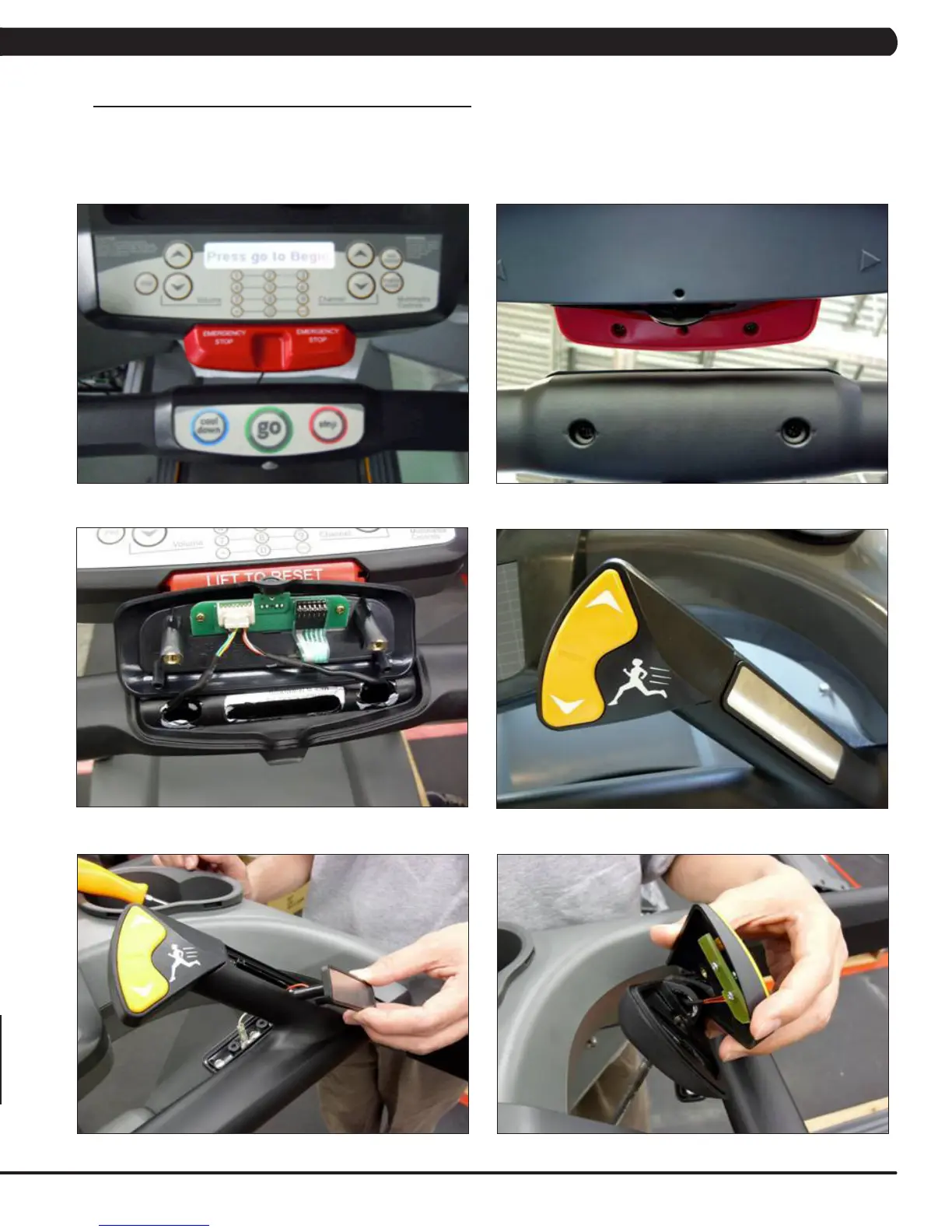

FIGURE A FIGURE B
FIGURE C
FIGURE D
FIGURE E FIGURE F
