Matrix VS-S33 Lat Pulldown User Manual

10
8
11
1
7
10
6
9
5
2
4
3

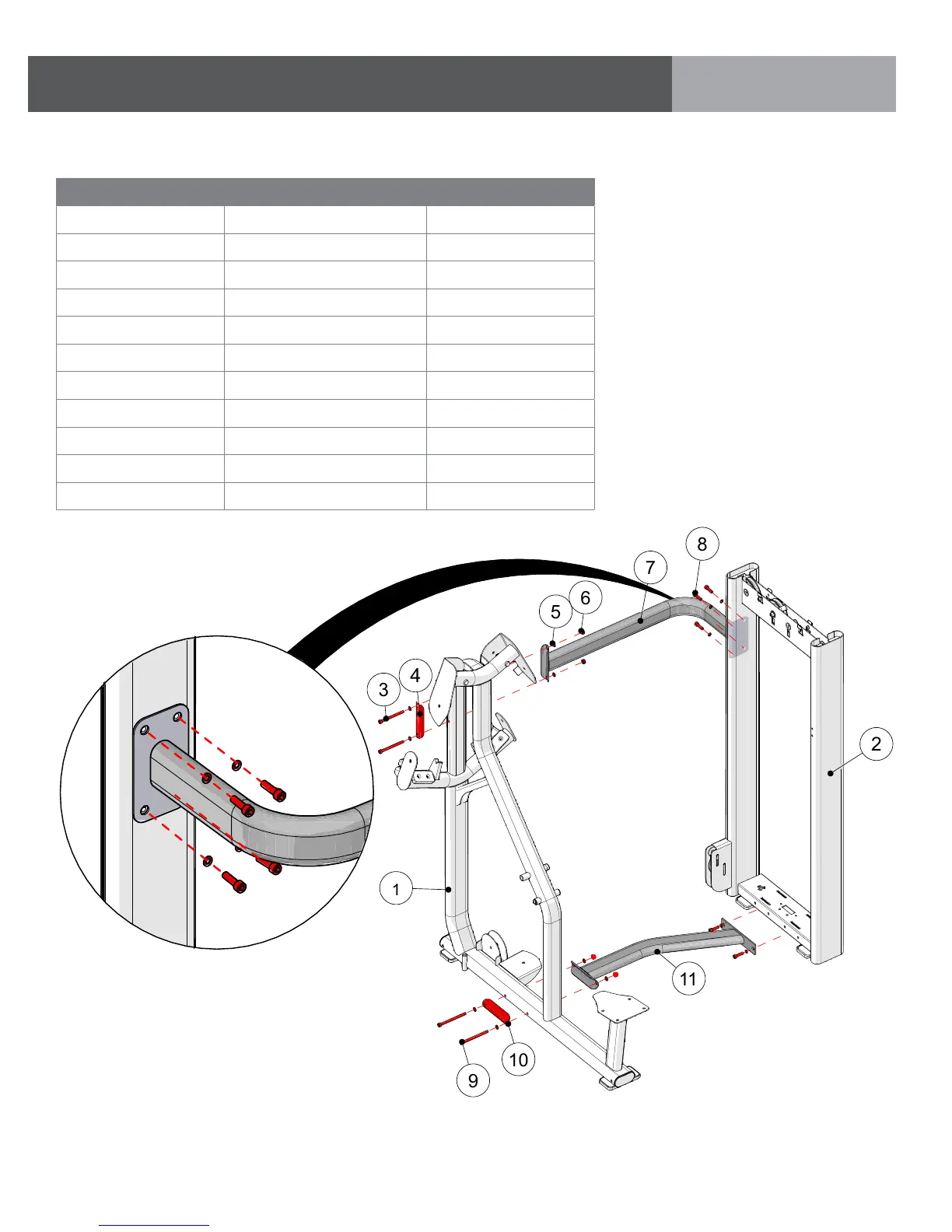

ASSEMBLY
PART 1: WEIGHT STACK TO FRAME ASSEMBLY
STEP 1 | WEIGHT STACK FRAME INSTRUCTIONS & NOTES
Machine must be assembled on a flat and level floor.
Install the user frame hardware as shown, BUT DO NOT FULLY TIGHTEN.
ID DESCRIPTION QUANTITY
1 User Frame 1
2 Weight Stack Frame 1
3 M10 X 105L SHC 2
4 Narrow Cupped Flange 1
5 M10 Flat Washer 14
6 M10 Nylock Nut 4
7 Upper Connecting Tube 1
8 M10 X 20L SHC 6
9 M10 X 125L SHC 2
10 Wide Cupped Flange 1
11 Lower Connecting Tube 1

Matrix VS-S33 Lat Pulldown Specifications

General

Brand	Matrix
Model	VS-S33 Lat Pulldown
Category	Home Gym
Language	English
