ASSEMBLY
STEP 1 | THIGH PAD ASSEMBLY INSTRUCTIONS & NOTES
PART 2: THIGH PAD ASSEMBLY
14
13
15
16
17
12

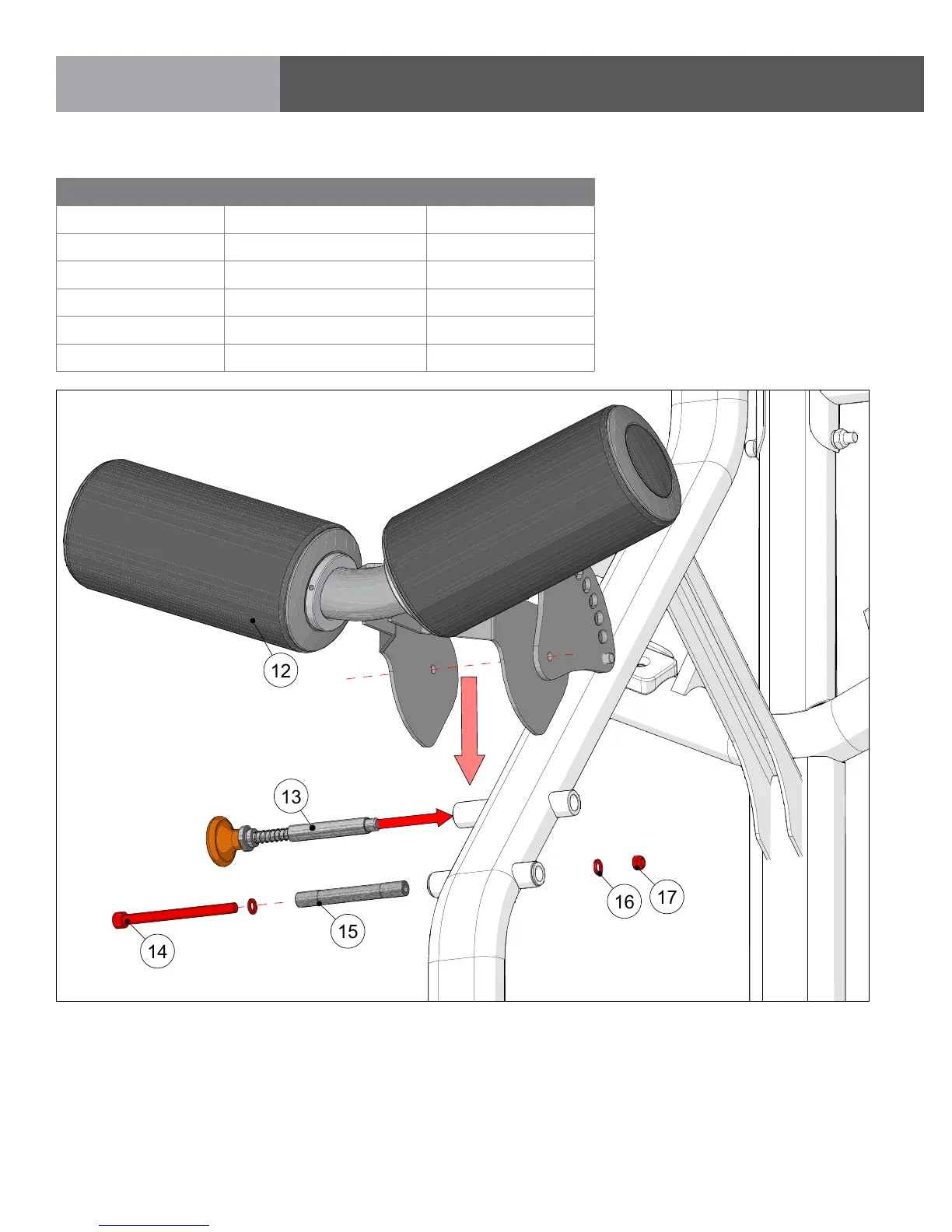

Install the thigh pad and pullpin assemblies as shown.
Tighten item 14 to 39 N-m/29 ft-lbs.
ID DESCRIPTION QUANTITY
12 Thigh Pad Assembly 1
13 Pullpin Assembly 1
14 M8 X 150L SHC 1
15 Axle 1
16 M8 Flat Washer 2
17 M8 Nylock Nut 1
