STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES
PART 9: PREMIUM KIT ASSEMBLY

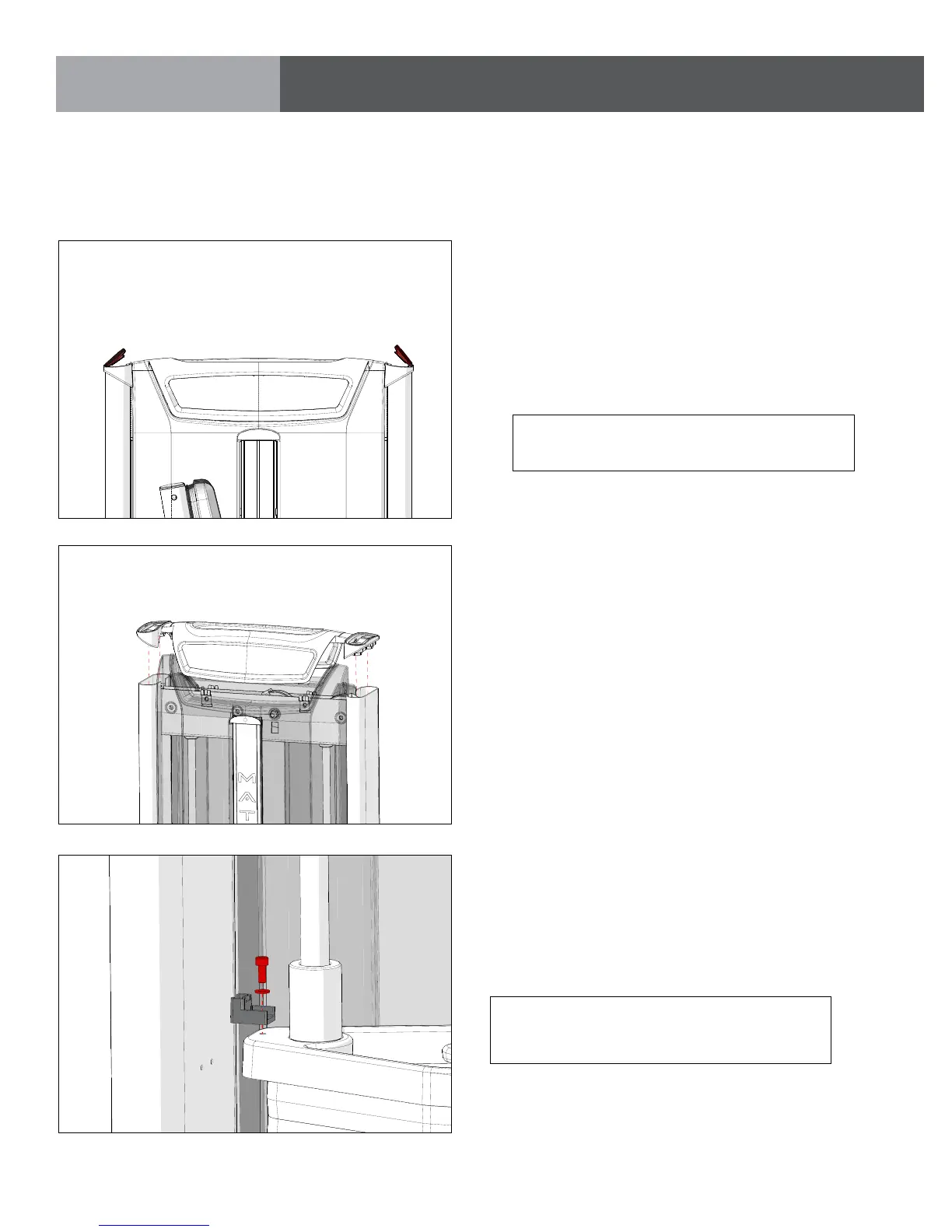

1. Remove the (2) top cap covers using a flat
blade screw driver.
2. Remove the (4) M8 bolts and 20 mm diameter
washers that hold the top cap to the weight
stack frame.
3. Remove top cap and rear shroud.
4. Assemble the Repetition Counter magnet holder
to the headplate using the M5 X 12L bolt and M5
washer provided with the kit.
Top cap covers, 20 mm diameter washers
& M8 screws can be discarded
Holder must be mounted on thes same
side of the weight stack as Rep Counter
Rep Counter - Magnet
ASSEMBLY
To Next Page
